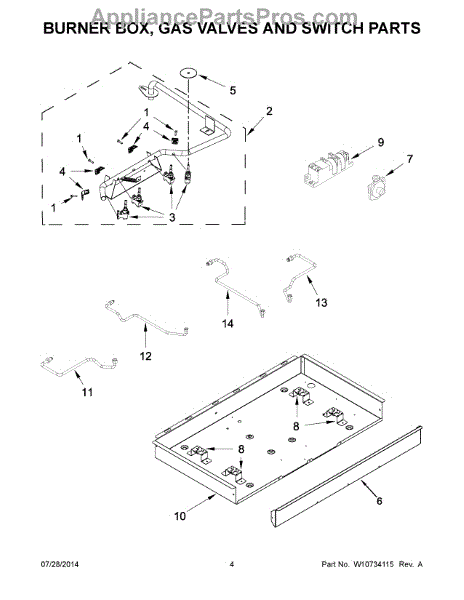

Parts for Maytag MGC9530DS00: 03 - Burner Box, Gas Valves And Switch Parts

The Valve-Gas is an OEM part for Whirlpool gas cooktops. This valve is located underneath the cooktop and is responsible for controlling the flow of gas to each burner.

Symptoms of a bad gas valve can include:

• Inability to ignite or adjust certain burner flames
• Gas leaks or smells around the valve area
• Intermittent or irregular flame levels
• Yellow flames that pose a safety risk

Over time and with heavy usage, components inside the valve can wear down affecting proper gas regulation.

Compatible models also include KitchenAid, Jenn-Air, Magic Chef, Admiral, and some Kenmore units.

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This speaker module produces the audible alerts and tones used by the appliance to signal cycle completion, errors, and user input feedback. Replacing a failed module restores clear beeps and chimes for reliable notifications. What it does:

• Outputs audible tones for cycle end, alerts, and button presses
• Restores sound when the appliance is silent or tones are distorted
• Helps confirm user inputs and warns of errors or malfunctions
• Works with the control board to play predefined alert patterns

• Disconnect power before removing the control panel or module to avoid shock.
• Handle the module and connector gently to avoid damage to wiring or pins.
• Reinstall using existing mounting points and secure connectors fully.
• Inspect the control board and wiring for faults.

This wire harness provides the factory routing and connections for an appliance's electrical circuits, restoring reliable power and signal paths so controls and components operate correctly. What it does

• Carries power and control signals between the control board and appliance components
• Replaces damaged, frayed, or disconnected wiring that can cause intermittent operation
• Commonly used when an appliance won't power on, has intermittent functions, or specific features stop responding
• Preserves proper wire routing and connector fit to prevent shorting and heat damage

• Disconnect all power (unplug or shut off breaker) before starting any work
• Take photos or label connectors to ensure correct reassembly
• Route harness using existing clips and fasteners; avoid pinching or contact with hot surfaces
• After installation, restore power and verify all functions before completing the repair

This orifice spud meters gas to the burner for a consistent, correctly sized flame. Replace a clogged or damaged spud to restore proper burner output and reliable ignition on your gas cooktop or range.

• Controls and meters gas flow through a calibrated opening to the burner
• Helps ensure proper flame size and color when matched to the correct burner and fuel type
• Common symptoms of a failing or clogged spud: weak or uneven flame, yellow tipping, or delayed ignition
• Damaged threads or a stripped orifice can prevent correct sealing and fuel delivery

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the orifice holder/manifold for the affected burner; remove the old spud with an appropriate orifice wrench or nut driver
• Start the new spud by hand to avoid cross-threading; tighten snugly—do not overtighten brass threads
• Restore gas and check for leaks with an approved leak-detection solution; verify flame quality and adjust per the service manual
