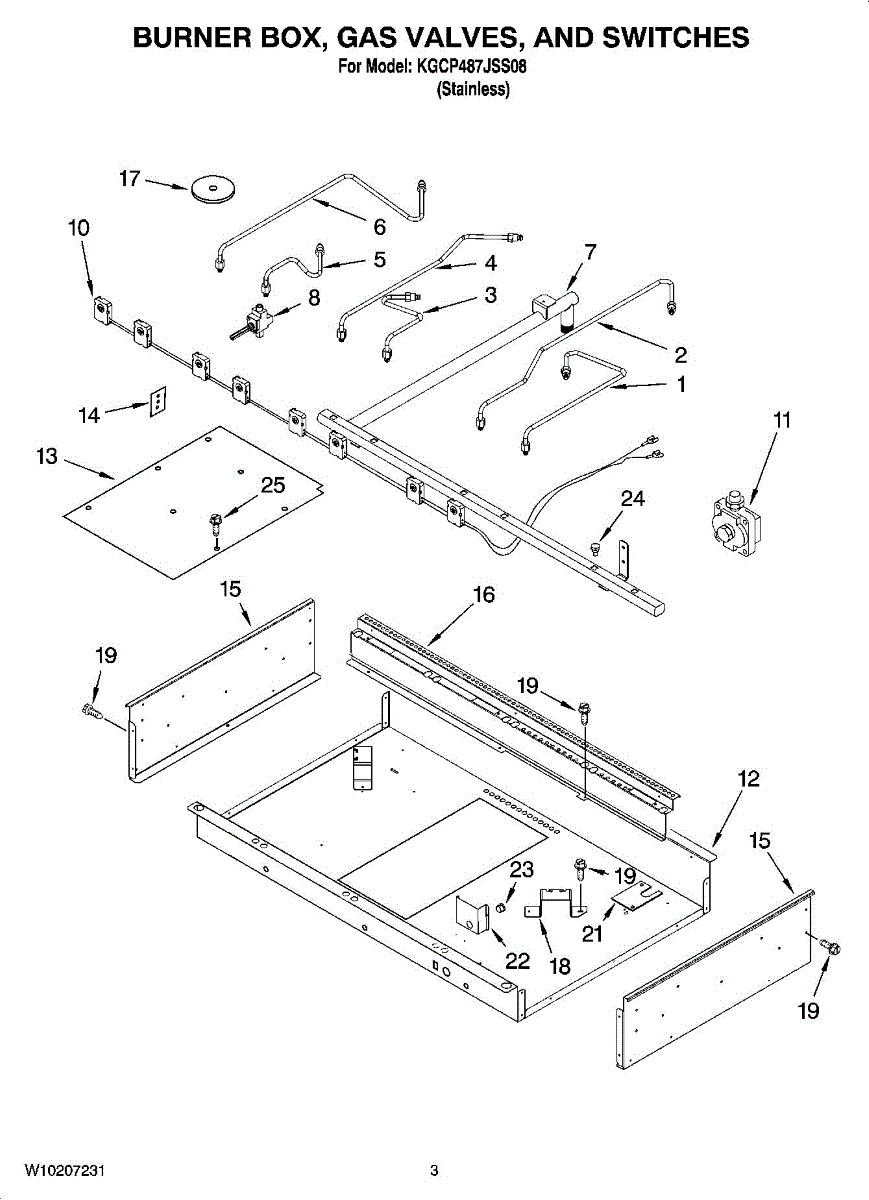

Parts for Kitchenaid KGCP487JSS08: 02 - Burner Box, Gas Valves, And Switches, Optional Parts

Location: Right front.

Location: Right rear.

Location: Center front.

Location: Center rear.

Location: Left front.

Location: Left rear.

This small burner valve controls gas flow to a single cooktop burner, restoring reliable ignition and flame control. Use when a burner won't light, has weak or uneven flame, or fails to respond to the control knob. What it does

• Regulates gas flow to the burner for proper ignition and flame adjustment
• Replaces a worn or leaking valve that can cause no flame or low/irregular flame
• Helps restore consistent heat output and safe burner operation
• Works with the range's control knob mechanism to open and close gas flow

• One small burner gas valve

• Disconnect power and shut off the household gas supply before servicing
• Only install on compatible appliances; follow OEM diagram and torque specs when available
• If you smell gas during testing or installation, stop.

This gas pressure regulator stabilizes incoming supply to your range or oven, delivering consistent burner flames. Replacing a failed regulator can restore proper heat output and reliable ignition across surface, bake, and broil burners.

• Regulates household gas supply to the appliance manifold for stable burner operation
• Helps maintain consistent flame height and heat in the oven and on the cooktop
• Protects downstream gas components from overpressure
• Failure symptoms include weak flames on all burners, oven or broiler not heating, or repeated clicking with no ignition

• Disconnect power, shut off gas supply, and allow the appliance to cool before servicing
• Observe flow-direction/orientation arrows and connect inlet/outlet ports correctly
• Apply an approved gas-rated thread sealant to threaded joints; avoid overtightening
• After installation, leak-test all connections with an approved solution—never use an open flame

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

Gas valve shaft seal.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Lp converstion kit.

This genuine wire harness routes electrical signals and power between components to restore proper operation and connectivity. It replaces damaged or frayed wiring to help eliminate intermittent power, control failures, or non-responsive functions. What it does:

• Carries power and control signals between appliance components to enable normal operation
• Replaces worn, burned, or broken wires and connectors that cause intermittent or no power
• Helps resolve issues like unresponsive controls, motors not running, or lights that won't turn on
• Preserves factory routing and connector fit for a secure, reliable connection

• One complete wire harness as shown

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the harness
• Compare connectors and wire colors to the old harness to ensure correct fit before installing
• Secure wires along original routing and fasten any clips or ties to prevent rubbing or pinching
