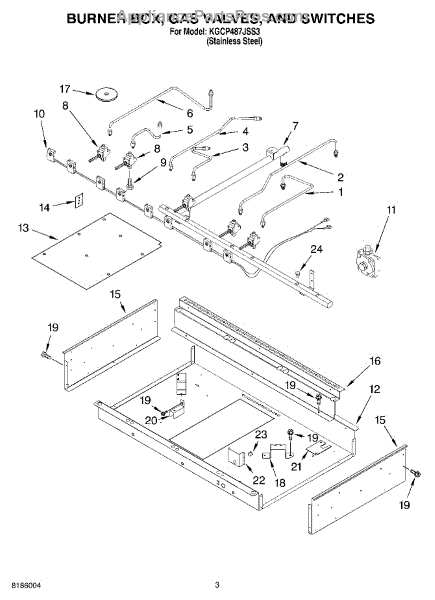

Parts for Kitchenaid KGCP487JSS3: 02 - Burner Box, Gas Valves, And Switches Parts

Location: Right front.

Location: Right rear.

Location: Center front.

Location: Center rear.

Location: Left front.

Location: Left rear.

Location: Left front.

Size: Small. Front gas burner valve.

This gas pressure regulator stabilizes incoming supply to your range or oven, delivering consistent burner flames. Replacing a failed regulator can restore proper heat output and reliable ignition across surface, bake, and broil burners.

• Regulates household gas supply to the appliance manifold for stable burner operation
• Helps maintain consistent flame height and heat in the oven and on the cooktop
• Protects downstream gas components from overpressure
• Failure symptoms include weak flames on all burners, oven or broiler not heating, or repeated clicking with no ignition

• Disconnect power, shut off gas supply, and allow the appliance to cool before servicing
• Observe flow-direction/orientation arrows and connect inlet/outlet ports correctly
• Apply an approved gas-rated thread sealant to threaded joints; avoid overtightening
• After installation, leak-test all connections with an approved solution—never use an open flame

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

Gas valve shaft seal.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This support bracket secures and stabilizes appliance panels and internal assemblies where a small mounting brace is required. It restores proper alignment and helps prevent vibration or sagging for a firmer fit and quieter operation. What it does

• Anchors and supports panels, trim, or internal components to the cabinet or frame
• Keeps assemblies aligned to prevent rubbing, gaps, or misalignment
• Reduces rattling and vibration caused by loose or missing bracketry
• Restores proper fit when original bracket is bent, broken, or missing

• Disconnect power to the appliance before beginning any repair
• Inspect mounting location and replace any stripped fasteners or damaged hardware
• Use the correct screws and hand tools to avoid stripping or overtightening

Size: 28 inches long.

Lp converstion kit.
