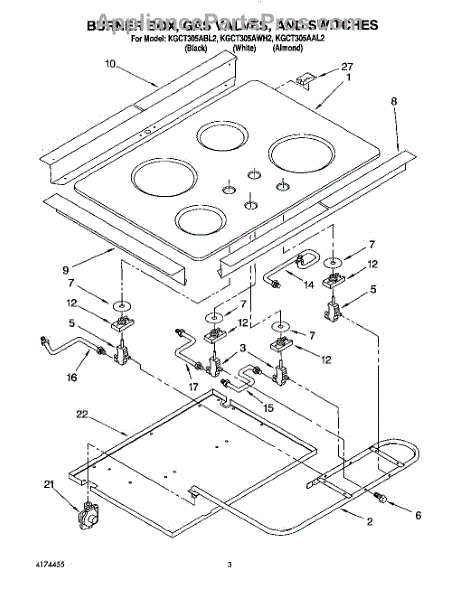

Parts for Kitchenaid KGCT305ABL2: 03 - Burner Box, Gas Valves, And Switches Parts

This part has been discontinued and is no longer available.

Gas valve shaft seal.

This switch ignitor is the replacement ignition switch used on compatible gas ranges and ovens to control spark to the burner. It restores the unit's ability to ignite safely and reliably when the control calls for flame. What it does:

• Sends ignition spark to the burner when the oven/range control signals a light cycle
• Helps ensure consistent ignition and reduces failed light attempts
• Commonly used when burners click but do not ignite or ignition is intermittent
• Works as the electrical switching component in the appliance's ignition circuit

• Disconnect power and shut off the gas supply before beginning work
• Handle with care to avoid damage to terminals and connectors
• Follow the appliance schematic and service manual for correct wiring and mounting
• If you smell gas or suspect a leak, stop.

This spark module controls surface-burner ignition on gas ranges and cooktops. It generates the high-voltage pulses that light the flame when you turn a knob, restoring fast, reliable burner lighting and eliminating constant clicking.

• Sends high-voltage pulses to the burner igniters when a surface knob is turned to ignite the flame
• Coordinates sparking for multiple surface burners
• Failure symptoms can include no spark on all burners, intermittent or weak sparking, or continuous clicking even with flames present
• Replacing a failed module restores proper burner ignition performance

• Disconnect power and shut off the gas supply before servicing
• Access the module, then photograph wiring and transfer leads one at a time to the new module
• Mount securely and ensure igniter leads are fully seated and routed away from heat and sharp edges
• Restore power/gas and verify each burner lights promptly with a strong, consistent spark
