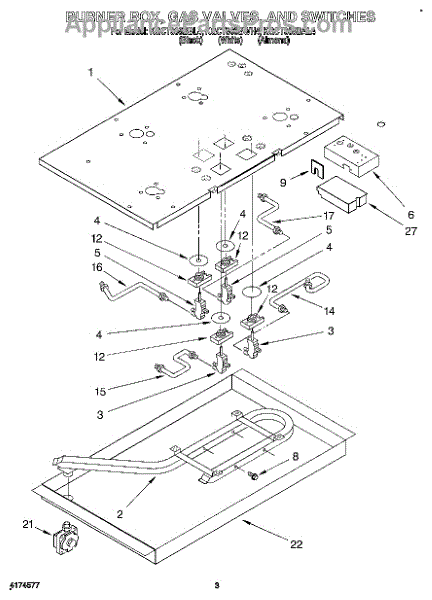

Parts for Kitchenaid KGCT305BBL4: 03 - Burner Box, Gas Valves, And Switches Parts

This part has been discontinued and is no longer available.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This part has been discontinued and is no longer available.

Gas valve shaft seal.

This switch ignitor is the replacement ignition switch used on compatible gas ranges and ovens to control spark to the burner. It restores the unit's ability to ignite safely and reliably when the control calls for flame. What it does:

• Sends ignition spark to the burner when the oven/range control signals a light cycle
• Helps ensure consistent ignition and reduces failed light attempts
• Commonly used when burners click but do not ignite or ignition is intermittent
• Works as the electrical switching component in the appliance's ignition circuit

• Disconnect power and shut off the gas supply before beginning work
• Handle with care to avoid damage to terminals and connectors
• Follow the appliance schematic and service manual for correct wiring and mounting
• If you smell gas or suspect a leak, stop.

This spark module controls surface-burner ignition on gas ranges and cooktops. It generates the high-voltage pulses that light the flame when you turn a knob, restoring fast, reliable burner lighting and eliminating constant clicking.

• Sends high-voltage pulses to the burner igniters when a surface knob is turned to ignite the flame
• Coordinates sparking for multiple surface burners
• Failure symptoms can include no spark on all burners, intermittent or weak sparking, or continuous clicking even with flames present
• Replacing a failed module restores proper burner ignition performance

• Disconnect power and shut off the gas supply before servicing
• Access the module, then photograph wiring and transfer leads one at a time to the new module
• Mount securely and ensure igniter leads are fully seated and routed away from heat and sharp edges
• Restore power/gas and verify each burner lights promptly with a strong, consistent spark

Size: 8-32 x 2 1/2 inch.

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

The Foot Pad Kit for Whirlpool ranges is an OEM part specifically designed to fit underneath the grates. These small but critical components provide cushioning and stability for the grates, preventing them from scratching the cooktop surface and reducing noise and movement during cooking.

Symptoms of worn or missing Foot Pads include:

• Grates that wobble or shift during use
• Increased noise, such as rattling or scraping, when moving pots and pans
• Scratches or other damage to the cooktop surface beneath the grates
• Uneven cooking surfaces which can affect the stability of cookware

Causes of degradation in foot pads can include high heat exposure, frequent cleaning that wears down the material, or the natural breakdown of rubber or silicone over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
