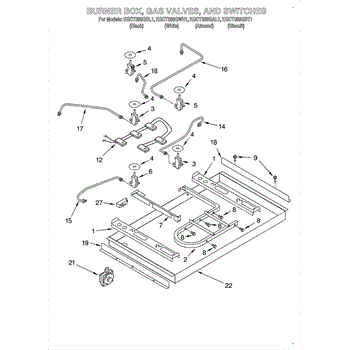

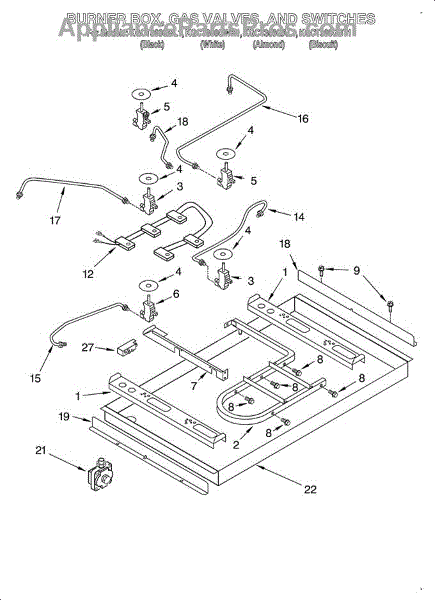

Parts for Kitchenaid KGCT366GBT1: Burner Box, Gas Valves, Switches Parts

Size: Small. Front gas burner valve.

Gas valve shaft seal.

Size: Large. Rear gas burner valve.

Location: Left front.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

Location: Right front. Gas valve tubing.

Location: Left front. Gas valve tubing.

Location: Right rear. Gas valve tubing.

Location: Left rear. Gas valve tubing.

Location: Center.

This spark module supplies the high-voltage pulses that ignite the surface burners on compatible gas cooktops/ranges. Replacing a failing module restores consistent burner spark and reliable lighting when you turn the knobs.

• Distributes ignition voltage to multiple burners; coordinates spark when a burner is turned on
• Common failure symptoms: no spark on any or multiple burners, intermittent clicking, or burners that won't ignite despite gas flow
• Click continuously if internal circuitry fails or senses a short in the ignition system

• Disconnect power and shut off gas before servicing; verify no residual voltage
• Label and transfer each spark wire and connector one at a time to maintain correct routing
• Mount securely and avoid pinching or stretching ignition leads
• If burners still won't spark after replacement, inspect electrode wires, switches, and grounds
