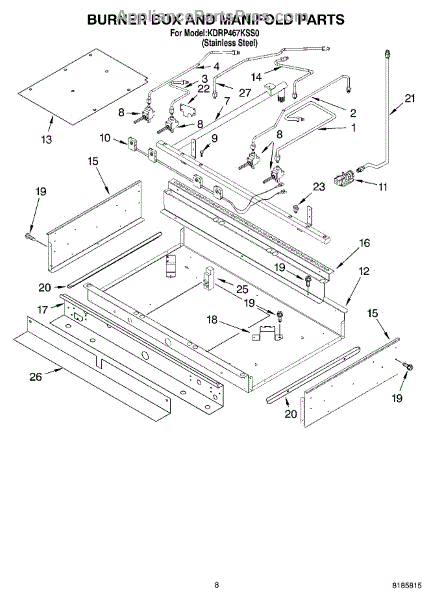

Parts for Kitchenaid KDRP467KSS0: 07 - Burner Box & Manifold Parts

Location: Left front.

Size: Small. Front gas burner valve.

Gas valve shaft seal.

This gas pressure regulator stabilizes incoming supply to your range or oven, delivering consistent burner flames. Replacing a failed regulator can restore proper heat output and reliable ignition across surface, bake, and broil burners.

• Regulates household gas supply to the appliance manifold for stable burner operation
• Helps maintain consistent flame height and heat in the oven and on the cooktop
• Protects downstream gas components from overpressure
• Failure symptoms include weak flames on all burners, oven or broiler not heating, or repeated clicking with no ignition

• Disconnect power, shut off gas supply, and allow the appliance to cool before servicing
• Observe flow-direction/orientation arrows and connect inlet/outlet ports correctly
• Apply an approved gas-rated thread sealant to threaded joints; avoid overtightening
• After installation, leak-test all connections with an approved solution—never use an open flame

Right side burner box assembly.

Left side burner box assembly.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

Can be used for both sides.

U-type clip

This 1/2" female adapter is a threaded plumbing connector that lets a 1/2" male water line or fitting join the appliance inlet safely and securely. It provides a simple, durable connection to restore proper water flow. What it does:

• Adapts a 1/2" male threaded water supply to the appliance's inlet fitting
• Restores a secure, leak-free connection when the original fitting is damaged or missing
• Commonly used where a reliable, compact threaded coupling is needed
• Can help stop drips or leaks caused by worn or corroded connectors

• One 1/2" female adapter

• Turn off the water supply and unplug the appliance before installing
• Use plumber's tape on threads for a reliable seal unless the OEM instructions specify otherwise
• Hand-start threads to avoid cross-threading, then tighten with an appropriate wrench; avoid over-tightening
• Check connections for leaks after restoring water and operation

This spark module supplies the high-voltage pulses that ignite the surface burners on compatible gas cooktops/ranges. Replacing a failing module restores consistent burner spark and reliable lighting when you turn the knobs.

• Distributes ignition voltage to multiple burners; coordinates spark when a burner is turned on
• Common failure symptoms: no spark on any or multiple burners, intermittent clicking, or burners that won't ignite despite gas flow
• Click continuously if internal circuitry fails or senses a short in the ignition system

• Disconnect power and shut off gas before servicing; verify no residual voltage
• Label and transfer each spark wire and connector one at a time to maintain correct routing
• Mount securely and avoid pinching or stretching ignition leads
• If burners still won't spark after replacement, inspect electrode wires, switches, and grounds
