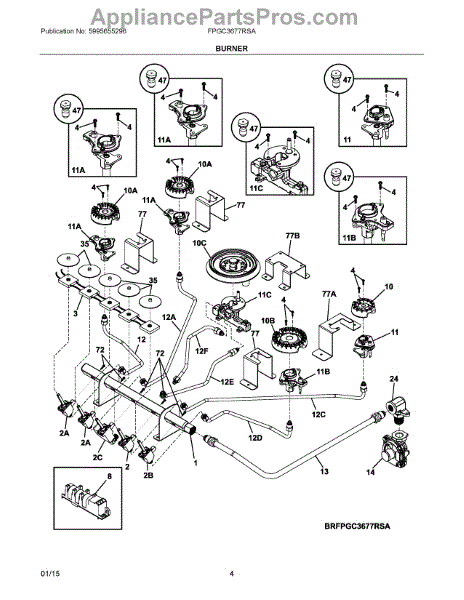

Parts for Frigidaire FPGC3677RSA: 03 - Burner Parts

This top burner valve controls the gas flow to a single surface burner so your cooktop delivers adjustable flame and reliable heat. It replaces a failed valve to restore normal burner operation and safe ignition. What it does:

• Regulates gas flow to one surface/top burner for flame adjustment
• Helps fix symptoms like weak or no flame, inability to light, or inconsistent heat
• Works with the cooktop's ignition system to enable proper spark lighting
• Restores control when a worn or leaking valve prevents normal operation

• Shut off the gas supply and power to the appliance before starting any work
• Only replace with the exact part number; check fit with your model's parts diagram
• Check all connections and test for leaks after installation using a non-flammable leak detector solution

This top burner valve controls gas flow to a single cooktop burner so you can adjust heat and restore proper burner operation. It replaces a worn or failed valve to help burners light and hold a steady flame. What it does:

• Regulates gas flow from the manifold to one surface burner for precise heat control.
• Replaces valves that are stuck, hard to turn, or fail to deliver consistent flame.
• Helps resolve symptoms like a burner that won't light, weak or uneven flame, or loss of ignition control.
• Works as a direct replacement when the original valve is damaged or leaking.

• One top burner gas valve.

• Turn off gas supply and electrical power to the appliance before starting work.
• Only install on compatible gas ranges; follow OEM instructions and local codes.
• Use proper fittings and sealants rated for gas; check all connections for leaks after installation.

This top burner gas valve controls and shuts off gas to a single surface burner so you can ignite and adjust flame height safely. Replace a worn valve to restore precise burner control and dependable lighting.

• Regulates gas flow to one surface burner for reliable ignition and flame adjustment
• Acts as the on/off shutoff for that burner via the control knob
• Helps when a burner won't light even though the igniter clicks
• Helps when flame won't adjust smoothly or the knob binds/feels stripped

• Disconnect power and shut off gas supply before servicing
• Remove knob and access the control/manifold area to reach the valve; note tubing and mounting orientation
• Transfer any model-specific brackets or fittings from the old valve if required
• After reassembly, check all connections with an approved gas leak-detection solution before restoring service and testing burner operation

This electromechanical switch assembly controls a specific user or internal function and restores reliable on/off or selection response. Replace a worn or damaged switch assembly to regain proper control and appliance usability. What it does:

• Acts as the electrical switching component for the appliance control circuit
• Enables user input to be registered (on/off or selection) and sent to the control system
• Common symptom: appliance won't respond when a control is pressed or switched
• Common symptom: intermittent or non-working control operation, no clicking or circuit continuity when activated

• Disconnect power before accessing or replacing the switch to avoid shock
• Access panel or control bezel removal may be required
• Handle wiring connections carefully; match terminals and secure connectors

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Spark Module is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the electrical spark that ignites the gas burners. This module sends a high-voltage signal to the igniters, ensuring the burners light up quickly and reliably when you turn the knobs.

Causes of a bad spark module can include electrical surges, wear and tear from regular use, or exposure to moisture, which can lead to corrosion or short-circuits.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Some burners working while others do not

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This G5 burner kit replaces a damaged or worn surface burner on compatible gas ranges, restoring consistent flame and cooking performance. Use it to repair burners that show weak ignition, uneven heat, or visible damage. What it does

• Replaces the surface burner assembly to restore even flame distribution for cooking
• Fixes symptoms like weak or uneven heating and visible cracks or warping on the burner
• Helps re-establish reliable ignition when burner parts are worn or damaged
• Works as a direct replacement kit for ranges that specify a G5 burner kit

• Turn off gas supply and electricity to the appliance before starting any repairs
• Follow OEM service instructions for disassembly and reassembly; use proper tools
• Inspect related components (igniter, burner cap, orifice) and replace if they show damage

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor orifice assembly directs gas flow to the oven/burner igniter for reliable ignition and consistent flames. It replaces worn or clogged orifice parts to restore normal ignition performance. What it does:

• Regulates and channels gas to the igniter so the burner/oven will light
• Helps produce a steady, consistent flame for proper cooking temperatures
• Common repair when a burner or oven fails to ignite or has weak flame
• Prevents irregular ignition caused by damaged or blocked orifice passages

• One ignitor orifice assembly

• Turn off the appliance power and shut off the gas supply before starting
• Inspect fittings and seals for damage and test for leaks after installation (use approved leak-detection methods)
• Use appropriate tools and follow the appliance service manual for removal and reassembly

This ignitor orifice assembly replaces the oven's burner ignition component to help light the gas burner reliably and restore normal oven ignition. Designed to match OEM fit and function on compatible Frigidaire gas ovens. What it does:

• Provides the ignition pathway so the burner lights when the oven calls for heat
• Directs and meters gas at the burner ignition point for consistent ignition
• Addresses symptoms like the oven failing to light, delayed ignition, or intermittent ignition
• Works with the oven's safety and control systems to enable normal burner operation

• Shut off gas supply and electrical power before servicing; verify both are off
• Only install in gas ovens that use this specific assembly;

This ignitor orifice assembly replaces the gas orifice that directs fuel to the oven igniter, helping restore reliable ignition and steady burner flame for consistent oven heating. What it does:

• Directs gas flow to the oven igniter so the burner can light
• Helps maintain a steady flame once the igniter opens the gas valve
• Commonly replaced when the oven fails to light or ignition is slow
• Improve weak or uneven burner flame behavior

• Turn off the appliance power and shut off the gas supply before beginning work
• Inspect surrounding seals and gas fittings; use a gas leak test after installation
• Follow the oven's service manual for disassembly and torque/spec guidance

This ignitor orifice assembly positions the oven burner orifice and supports proper ignition for gas ovens. Replacing a worn assembly can restore reliable burner lighting and help the oven reach and hold temperature. What it does:

• Secures and aligns the burner orifice so gas flows correctly to the ignitor/pilot
• Enables consistent ignition of the oven burner
• Helps resolve symptoms like the oven failing to light, repeated clicking without ignition, or an unstable/weak flame
• Works as a direct replacement for the oven's original orifice/ignitor mounting component

• Turn off gas supply and disconnect power before beginning any work.
• Basic hand tools are typically required; follow OEM instructions for safe removal and reinstallation.
• If you smell gas, stop immediately.

The Tube is an OEM part for Frigidaire cooktops. It is responsible for delivering gas to the burners, allowing for efficient and controlled heat distribution during cooking.

A bad tube can be caused by wear and tear, damage, or clogs that obstruct the gas flow. Signs of a faulty burner tube include weak or uneven flames, gas leaks, or difficulty in igniting the burners.

Symptoms of a bad tube can include:

• Weak or inconsistent flames
• Smell of gas or hissing noises near the burners
• Difficulty in igniting the burners

Replace your worn-out or damaged tube with this genuine OEM part to restore your cooktop. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Regulator is an OEM part for Frigidaire cooktops. It is responsible for regulating the flow and pressure of gas entering the appliance, ensuring safe and efficient operation.

A bad regulator can be caused by faulty internal components, wear and tear over time, or damage due to improper handling. Signs of a faulty regulator include uneven heating, weak flame, or gas leaks.

Symptoms of a bad regulator can include:

• Uneven heating of burners or oven
• Weak or inconsistent flame
• Gas leaks around the regulator

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This bushing is a small replacement sleeve that supports a rotating or sliding shaft, reducing friction and wear so moving refrigerator components operate smoothly and quietly. It restores proper alignment where the original bushing is worn or damaged. What it does:

• Acts as a low-friction bearing for a shaft or pin to reduce wear on metal parts
• Helps stop wobble, binding, or noise from worn pivot or slide points
• Maintains alignment for doors, drawers, or dispenser linkages that rely on a shaft
• Prevents metal-to-metal contact that can accelerate part failure

• One bushing

• Disconnect power to the appliance before starting work
• Remove panels or trim as needed to access the worn bushing and shaft
• Press or slide the new bushing into position; avoid forcing or deforming the part
• Reassemble panels and test the component for smooth operation before regular use

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

A simple metal mounting bracket that secures appliance components and keeps them aligned for reliable operation. Replaces a worn or damaged bracket to restore proper support and reduce rattling or movement. What it does:

• Provides a secure mounting point for internal components such as panels, assemblies, or modules
• Keeps parts aligned to prevent rubbing, vibration, or noise during operation
• Restores proper support when an original bracket is bent, cracked, or broken
• Helps maintain safe spacing and positioning of components to avoid interference

• One mounting bracket

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver, nut driver) as required; retain original fasteners unless replacement is specified
• Handle edges carefully—brackets and surrounding sheet metal can be sharp

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
