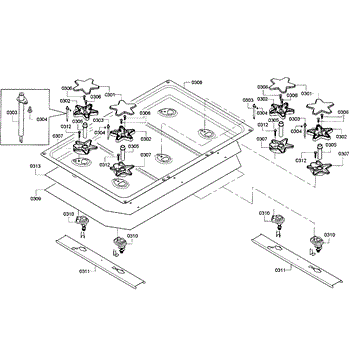

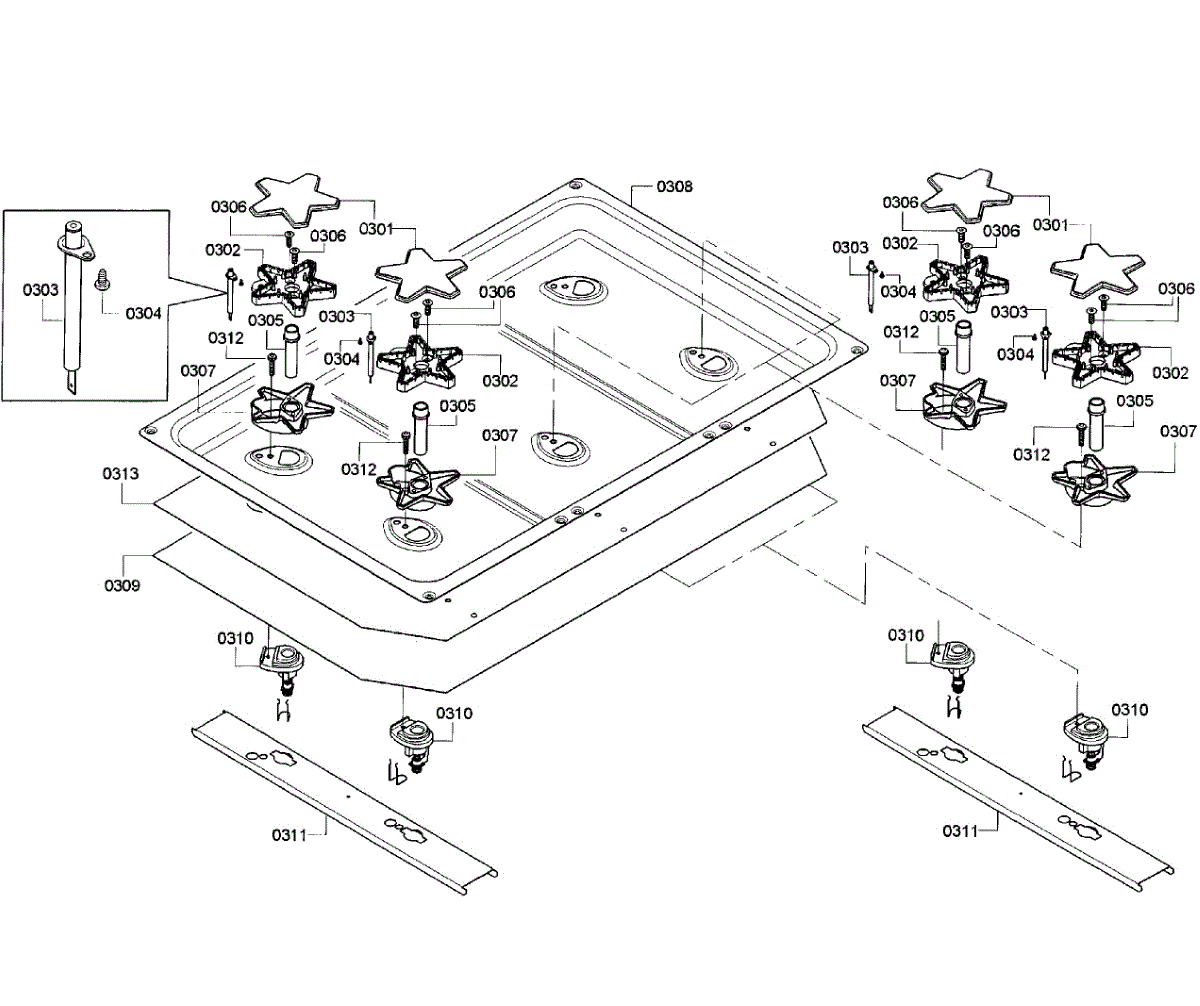

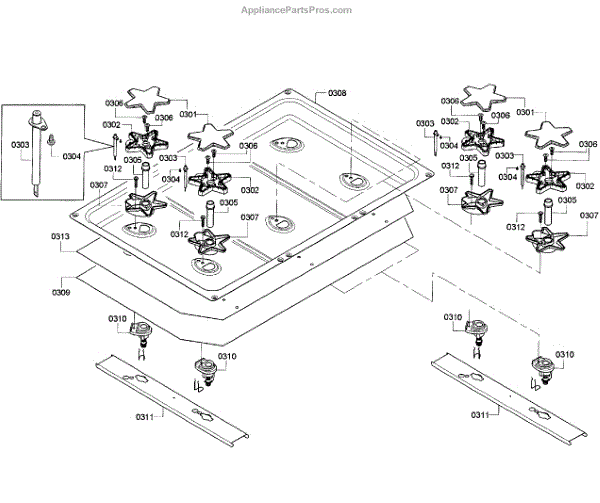

Parts for Thermador PRD366GHC/13: Burners Assy Parts

This cap covers and protects its mating opening or fastener on the appliance, helping keep debris and moisture out while restoring a clean, finished look. Replace a cracked or missing cap to maintain proper protection and appearance. What it does:

• Provides a finished cover for an opening or fastener
• Helps prevent dust, debris, and moisture intrusion
• Supports proper fit of the assembly it mates with
• Common signs include a cracked, loose, or missing cap; exposed hardware; or difficulty securing the area

• 1 cap

• Disconnect power; shut off water or gas to the appliance before servicing
• Note the original cap's orientation; release any tabs or threads to remove
• Clean the mating area; press or thread the new cap on until fully seated—do not overtighten
• The cap is secure and that surrounding components operate normally

The Electrode is an OEM part for Bosch gas ranges. It is a component responsible for generating the spark required to ignite gas burners on the cooktop.

Causes of a bad electrode can include cracks, deterioration, or damage over time from repeated exposure to high heat during use. Corrosion from spills or residue buildup can also potentially compromise function.

Symptoms of a bad electrode include:

• Difficulty lighting one or more gas burners
• Burners lighting intermittently or inconsistently
• Small flames or burners failing to light entirely
• Burners extinguishing unexpectedly

This part is also compatible with some Thermador, Gaggenau and Kenmore gas cooktop models.

The Screw is an OEM part for Bosch ranges. It plays a crucial role in connecting and securing range components and panels. Over time, screws can strip, corrode, or break, preventing tight connections and proper alignment of parts.

Causes can include normal wear and tear over time, as well as damage during repair or maintenance. Replacing missing or faulty screws with genuine OEM parts is important to ensure the range operates as designed and presents no safety issues.

Symptoms of bad or missing screws include:

• Doors, panels, or panels not sitting flush
• Components detaching or coming loose
• Alignment issues between connected parts
• Reduced structural integrity

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This burner pipe directs gas from the valve to the burner for safe, consistent ignition. Replaces a damaged or corroded pipe to restore normal burner function and reduce gas leaks or poor ignition. What it does

• Channels gas from the control valve to the burner for proper flame delivery
• Helps maintain consistent, even flames for cooking
• Common replacement when a pipe is cracked, corroded, or leaking
• Resolves symptoms like weak or no flame, gas odor, or uneven heating

• One replacement burner pipe

• Turn off gas supply and unplug the appliance before beginning work
• Use correct fittings and hand-tighten then snug with a wrench; avoid overtightening
• After installation, test all connections for leaks with a soap-and-water solution or approved leak detector

This screw secures appliance panels and internal components. Replacing a missing, rusted, or stripped fastener restores proper fit and alignment to prevent movement, rattling, and premature wear.

• Fastens appliance components and panels for a secure assembly
• Helps maintain proper alignment to reduce vibration and noise
• Replaces missing or damaged hardware that can cause loose fits
• Supports reliable operation after service or repair

• Disconnect power and, shut off water or gas before service
• Use the correct driver for the head type; start threads by hand to avoid cross-threading
• Tighten evenly and do not overtighten to prevent stripping or damage

This support is a genuine replacement that secures and aligns an associated component inside the appliance, keeping it stable and operating as intended. Replacing a damaged support helps restore proper fit, reduce vibration, and prevent premature wear.

• Provides structural mounting and support for the designated assembly
• Maintains correct alignment and spacing of parts
• Helps prevent wobble, rattling, or rubbing during operation
• Symptoms can include loose or sagging parts, misalignment, unusual noise, or visible cracks in the original support

• Disconnect power; shut off water supply before servicing
• Refer to your model's parts diagram to orientation and fastener locations
• Transfer any screws/clips from the original part if new hardware is not supplied
• Tighten fasteners evenly and avoid overtightening plastic components

This hob top is the replacement top panel that covers the cooking surface and supports burners and controls, restoring the cooktop's appearance and protecting internal components. It fits specific Bosch cooktop assemblies. What it does:

• Replaces a damaged, cracked, or cosmetically worn cooktop top panel
• Provides a stable surface for burners and control components
• Helps protect internal wiring and parts from spills and debris
• Restores a proper seal and alignment between burners and the cooktop surface

• One hob top (top panel) as described

• Installation typically requires removing the cooktop from its counter opening; follow manufacturer instructions
• Disconnect power (and gas if applicable) before beginning work to avoid shock or leakage
• Use proper tools and avoid overtightening fasteners to prevent cracking or damage

This heat shield is a stamped metal panel that redirects and blocks excess heat inside the oven cavity to protect wiring, insulation, and nearby components. It restores proper heat management and helps prevent heat-related damage. What it does:

• Shields adjacent parts from direct flame or intense oven heat
• Prevents heat transfer to wiring, insulation, and control components
• Reduces risk of warped or discolored cabinet panels near the oven
• Useful when the original shield is dented, rusted, or missing

• One heat shield panel

• Disconnect power (and gas if applicable) before servicing
• Allow the appliance to fully cool prior to removal/installation
• Use proper fasteners and align to existing mounting points; retain any original screws
• Beware of sharp metal edges and wear gloves

This Jet is the small spray nozzle that directs a focused stream of water inside the dishwasher's wash system. Replacing a clogged or damaged jet helps restore proper spray coverage, wash pressure, and overall cleaning performance.

• Directs and meters water flow within the wash system
• Helps maintain spray arm/wash zone pressure and coverage
• Replace if clogged with mineral deposits or physically damaged
• Symptoms include poor cleaning, weak spray, unusual wash noise, or leaks near the nozzle

• Disconnect power and shut off the water supply before servicing
• Access the nozzle location and note its orientation and any seals/clips
• Clean mating surfaces; transfer any reusable seal/clip if present
• Seat and lock the jet fully; run a test cycle and check for leaks
