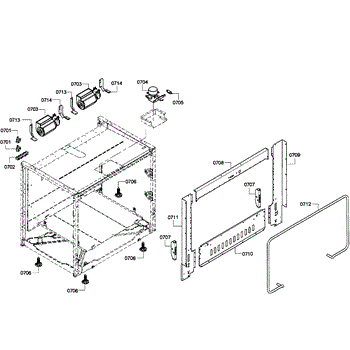

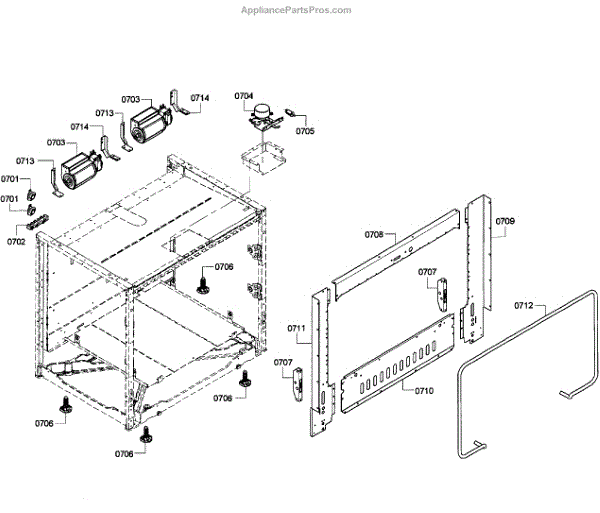

Parts for Thermador PRD366GHU/08: Cabinet Assy Parts

A replacement high-temperature cut-out that helps protect ovens by interrupting power if internal temperatures rise above safe levels. Restores the appliance's over-temperature protection so heating elements can be safely shut off when needed. What it does:

• Monitors oven temperature and opens the circuit if temperatures exceed a safe threshold to prevent overheating.
• Stops power to heating elements when tripped, preventing further temperature rise.
• Common symptoms of a failing cut-out: oven won't heat, continuous heating or no control over temperature, or oven shuts off unexpectedly.
• Used as a safety device in the oven's temperature-control system.

• Disconnect power at the breaker and allow the appliance to cool completely before servicing.
• Replace with the exact OEM cut-out and secure all wiring connections.

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Door Switch is an OEM component specifically designed for Bosch ranges. It monitors the oven door position, engaging safety locks and activating illumination or interior fans as needed. Reliable performance ensures proper oven environment controls.

Causes of a bad door switch can involve normal wear and tear leading to sluggish or stuck movement over time. Exposure to heat or accidental impact may also damage delicate mechanisms requiring replacement.

Symptoms of a bad door switch include:

• Interior lights or fans operating incorrectly in relation to the door position
• Oven locks that do not engage fully for safety
• Faulty door open/close detection interfering with cooking programs

This OEM Bosch part is also compatible with Thermador and select Kenmore models.


This Foot is an OEM component for Bosch Ranges. Functioning as a stabilizing support for the range, these feet provide balance and elevation, ensuring the appliance's proper positioning and stability on the floor.

A common issue with malfunctioning or damaged Foot involves wear, breakage, or loss of the foot's grip, leading to instability or uneven placement of the range. Exposure to weight strain, movement, or irregular floor surfaces can contribute to foot damage over time.

Symptoms of defective or worn-out Foot may include:

• Uneven or wobbly placement of the range
• Difficulty in leveling the appliance
• Visible damage or missing components in the feet

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This hinge plate secures the appliance door hinge to the cabinet, restoring proper door alignment and stable operation. It's a direct-fit mounting plate used where the hinge attaches to the appliance body. What it does

• Provides the mounting surface for the door hinge to hold the door securely
• Restores correct door alignment and helps the door open/close smoothly
• Replaces worn or damaged mounting points that can cause sagging or misalignment
• Works with original hinge hardware to maintain factory fit

• One hinge plate as shown

• Disconnect power and/or gas and remove any stored items before starting work
• Basic hand tools required; support the door while removing/installing hinge components
• Inspect hinge and screws for wear; replace fasteners if stripped or damaged
• Tighten screws to snug—avoid over-torquing which can strip the mounting holes

This genuine replacement seal helps restore a watertight dishwasher door, preventing leaks and reducing moisture on floors. Replaces worn or hardened door gasket to improve seal integrity and cleaning performance. What it does:

• Creates the watertight barrier between the dishwasher door and tub to stop leaks
• Helps maintain proper spray and water containment for effective cleaning
• Addresses symptoms like water pooling under the dishwasher or along the door
• Reduces moisture and potential floor damage caused by a failing gasket

• One replacement door seal

• Inspect the door flange and sealing channel for debris or damage before installing
• Clean mating surfaces and allow to dry so the new seal seats properly
• Press the seal into the channel evenly—avoid stretching or twisting the gasket
