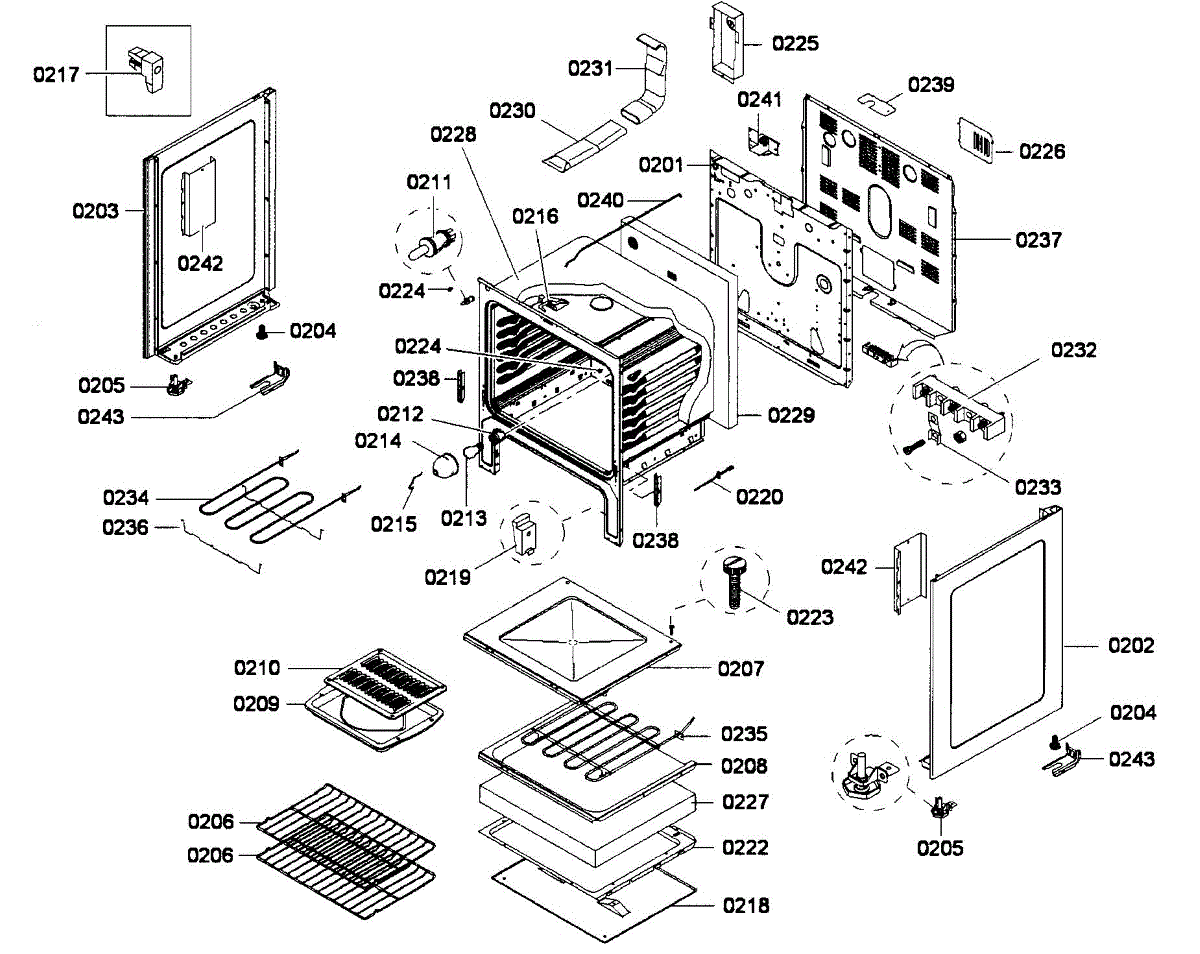

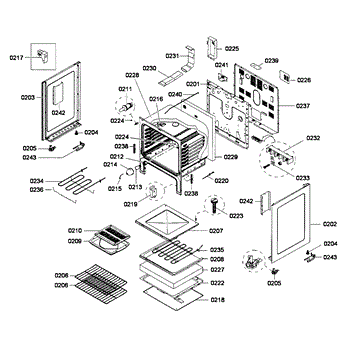

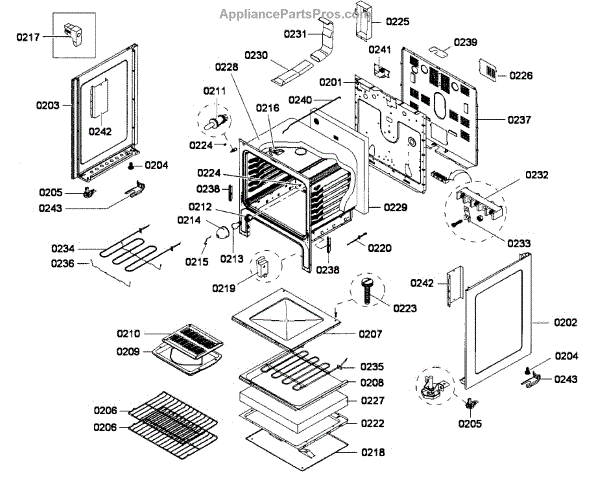

Parts for Bosch HES3053U/01: Cabinet Assembly Parts

This oven rack replaces a bent, worn, or missing rack to restore a safe, level surface for cookware. It slides into the oven's side rails so you can position dishes for even baking, roasting, and broiling.

• Provides a stable surface for pots, pans, and bakeware at standard rack positions
• Slides along the oven's support rails for easy loading and removal
• Helps maintain proper air circulation and consistent cooking results when positioned correctly
• Common symptoms: rack warped, rusted, missing, unstable, or difficult to slide

• Allow the oven to cool completely; disconnect power or shut off gas before servicing
• Remove the old rack, align the new rack with the side rails, and insert levelly until fully seated
• Verify orientation and placement per your owner's manual

This control panel is the outer console that houses buttons and the user interface, restoring the appliance's control surface and appearance. It lets you replace a damaged, cracked, or cosmetically worn console so controls are usable and the unit looks finished. What it does

• Replaces the exterior console that holds the user controls and display
• Restores button access and protects internal electronics from spills and dust
• Fixes symptoms like cracked or warped panel, loose or missing button covers, or visible cosmetic damage
• Helps stop moisture and debris from reaching internal control components

• Disconnect power (unplug or shut off breaker) before starting.
• Remove surrounding trim, screws, or clips to access and swap the panel; keep fasteners for reinstallation unless new ones are explicitly included.
• Handle carefully to avoid scratching the finish or damaging snaps and mounting tabs.

This socket is an electrical terminal that provides a secure connection between wiring and a component, restoring reliable power delivery and signal continuity. Use it to replace a worn or damaged connector for safer operation. What it does:

• Forms a stable electrical connection between a wire and the mating terminal or component.
• Prevents intermittent power, arcing, or loss of function caused by corroded or loose terminals.
• Helps restore operation of motors, controls, or sensors when the original connector is faulty.
• Maintains correct alignment and retention of the wiring harness under normal use.

• Disconnect power to the appliance before inspecting or replacing electrical connectors.
• Remove broken or corroded terminals and ensure mating parts are clean and dry before installing the new socket.
• Use appropriate crimping or insertion tools to secure the wire—do not force or over-bend the terminal.

Temperature sensor that monitors the appliance's internal temperature and sends readings to the control board so it can maintain correct operating temperatures. Replacing a faulty sensor restores accurate temperature sensing and proper cycle control. What it does:

• Measures internal air/compartment temperature and provides a signal to the control board for temperature regulation.
• Helps the control system decide when to start or stop cooling/heating cycles.
• A failing sensor can cause temperature errors, uneven temperatures, or excessive run times.
• Matches OEM function for reliable temperature feedback in the appliance's control system.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Handle the sensor and connector gently; avoid pulling on wires or bending the sensing tip.
• After installation, restore power and confirm normal operation and correct temperature behavior.

This replacement access panel cover restores the appliance's finished appearance and protects internal components from dust, moisture, and accidental contact. A direct-fit exterior cover for worn, cracked, or missing panels. What it does:

• Replaces a cracked, broken, or missing access panel to stop debris and moisture from entering the cabinet
• Shields wiring, controls, and internal parts from accidental contact and wear
• Helps eliminate rattling or loose-panel noises caused by damaged covers
• Restores a clean, finished look to the appliance exterior

• Always disconnect power to the appliance before starting any repair
• Remove adjacent trim or screws as needed to access mounting points; use the proper screwdriver or nut driver
• Line up tabs/clips carefully and snap or fasten without forcing to avoid breaking attachment features
• If mounting hardware is missing or damaged, replace with manufacturer-specified fasteners

This door lock latch assembly secures the dishwasher door during cycles so the machine can start and run safely. It replaces a worn or damaged latch to restore proper door closure and cycle operation. What it does:

• Locks the dishwasher door so the control can initiate and complete wash cycles
• Prevents the door from opening during operation, reducing leaks and interruptions
• Restores a failed or inconsistent door-latch mechanism that stops cycles from starting
• Works as the mechanical interface between the door and the washer cabinet

• One door lock latch assembly

• Disconnect power and water supply before beginning any repair
• Access typically requires removing the inner door panel; support the door to avoid damage
• Verify alignment and smooth operation of the latch after installation; replace any damaged screws or retainers
