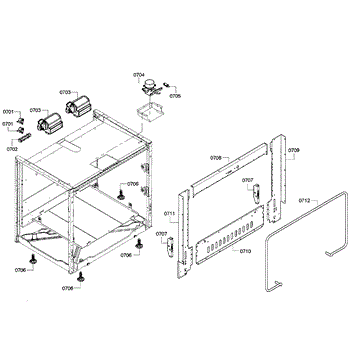

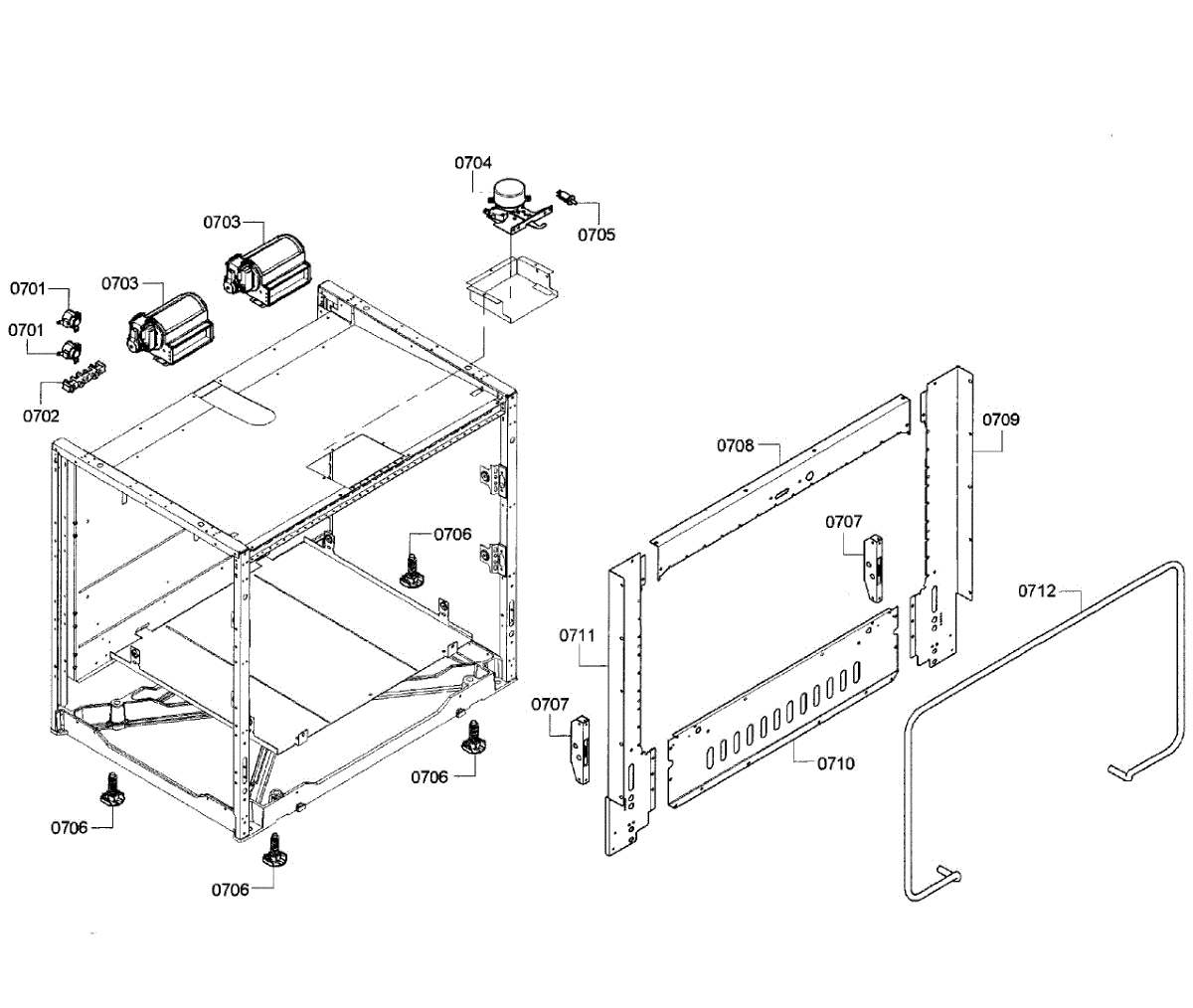

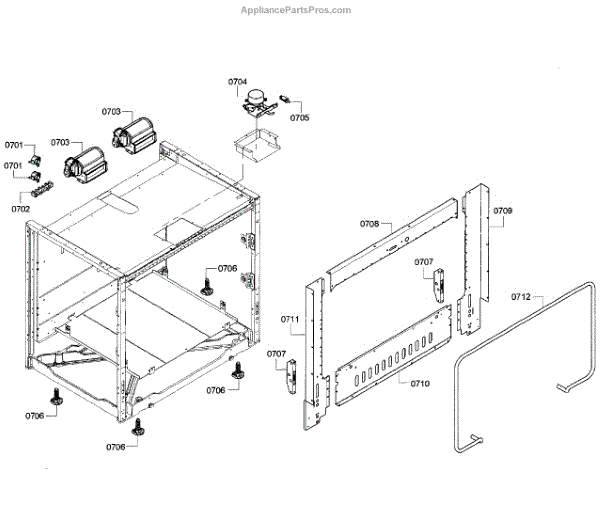

Parts for Thermador PRD366GHC/05: Cabinet Assy Parts

A thermal fuse that cuts power when temperatures exceed safe limits, helping prevent overheating and related damage. Installs in the appliance's heater or control circuit to restore safe operation when replaced. What it does:

• Acts as a one-time overheat cutoff, opening the circuit if internal temperatures get too high
• Common symptom: appliance fails to heat or the heater element won't energize
• Common symptom: appliance has no power to the affected circuit or intermittent operation
• Restores overheat protection when replaced with the correct part number

• Always disconnect power (unplug or switch off breaker) before accessing the appliance
• Handle carefully and replace only with the exact part number to ensure correct temperature rating
• Verify wiring orientation and secure connections; some units require soldering or connector terminals

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Blower Fan Motor is an OEM part for Bosch gas ranges. It features an integrated motor and blades to circulate air throughout the oven cavity.

The blower fan motor plays an important role in circulation by distributing heat evenly during the baking and broiling cycles. It helps prevent hot and cold spots to ensure foods are cooked consistently.

Causes of a bad blower fan motor can include wear and tear from extended use, damage from excess heat exposure, or failure of internal electrical components.

Symptoms of a bad blower fan motor include:

• Uneven or inconsistent cooking results
• Hot and cold spots inside the oven cavity
• The fan motor makes strange noises or does not turn on
• Extended or incomplete cook times

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Door Switch is an OEM component specifically designed for Bosch ranges. It monitors the oven door position, engaging safety locks and activating illumination or interior fans as needed. Reliable performance ensures proper oven environment controls.

Causes of a bad door switch can involve normal wear and tear leading to sluggish or stuck movement over time. Exposure to heat or accidental impact may also damage delicate mechanisms requiring replacement.

Symptoms of a bad door switch include:

• Interior lights or fans operating incorrectly in relation to the door position
• Oven locks that do not engage fully for safety
• Faulty door open/close detection interfering with cooking programs

This OEM Bosch part is also compatible with Thermador and select Kenmore models.


This Foot is an OEM component for Bosch Ranges. Functioning as a stabilizing support for the range, these feet provide balance and elevation, ensuring the appliance's proper positioning and stability on the floor.

A common issue with malfunctioning or damaged Foot involves wear, breakage, or loss of the foot's grip, leading to instability or uneven placement of the range. Exposure to weight strain, movement, or irregular floor surfaces can contribute to foot damage over time.

Symptoms of defective or worn-out Foot may include:

• Uneven or wobbly placement of the range
• Difficulty in leveling the appliance
• Visible damage or missing components in the feet

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This hinge plate secures the appliance door hinge to the cabinet, restoring proper door alignment and stable operation. It's a direct-fit mounting plate used where the hinge attaches to the appliance body. What it does

• Provides the mounting surface for the door hinge to hold the door securely
• Restores correct door alignment and helps the door open/close smoothly
• Replaces worn or damaged mounting points that can cause sagging or misalignment
• Works with original hinge hardware to maintain factory fit

• One hinge plate as shown

• Disconnect power and/or gas and remove any stored items before starting work
• Basic hand tools required; support the door while removing/installing hinge components
• Inspect hinge and screws for wear; replace fasteners if stripped or damaged
• Tighten screws to snug—avoid over-torquing which can strip the mounting holes

This genuine replacement seal helps restore a watertight dishwasher door, preventing leaks and reducing moisture on floors. Replaces worn or hardened door gasket to improve seal integrity and cleaning performance. What it does:

• Creates the watertight barrier between the dishwasher door and tub to stop leaks
• Helps maintain proper spray and water containment for effective cleaning
• Addresses symptoms like water pooling under the dishwasher or along the door
• Reduces moisture and potential floor damage caused by a failing gasket

• One replacement door seal

• Inspect the door flange and sealing channel for debris or damage before installing
• Clean mating surfaces and allow to dry so the new seal seats properly
• Press the seal into the channel evenly—avoid stretching or twisting the gasket

This adapter is a replacement connection piece that restores a secure fit between mating components, helping stop leaks and keep plumbing or internal assemblies aligned for reliable operation. What it does:

• Provides a precise mating surface to join two parts that no longer fit securely
• Restores proper alignment to reduce stress on hoses or fittings
• Helps stop symptoms like leaks, loose or wobbly connections, and poor sealing
• Designed to match the OEM geometry for a correct fit when replacing a worn or damaged adapter

• One replacement adapter

• Turn off power and shut off water supply before beginning installation
• Remove only the damaged adapter and replace with the new part; do not force or modify parts
• Hand-start fasteners or fittings, then tighten to OEM or plumbing torque recommendations; check for leaks after restoring supply
