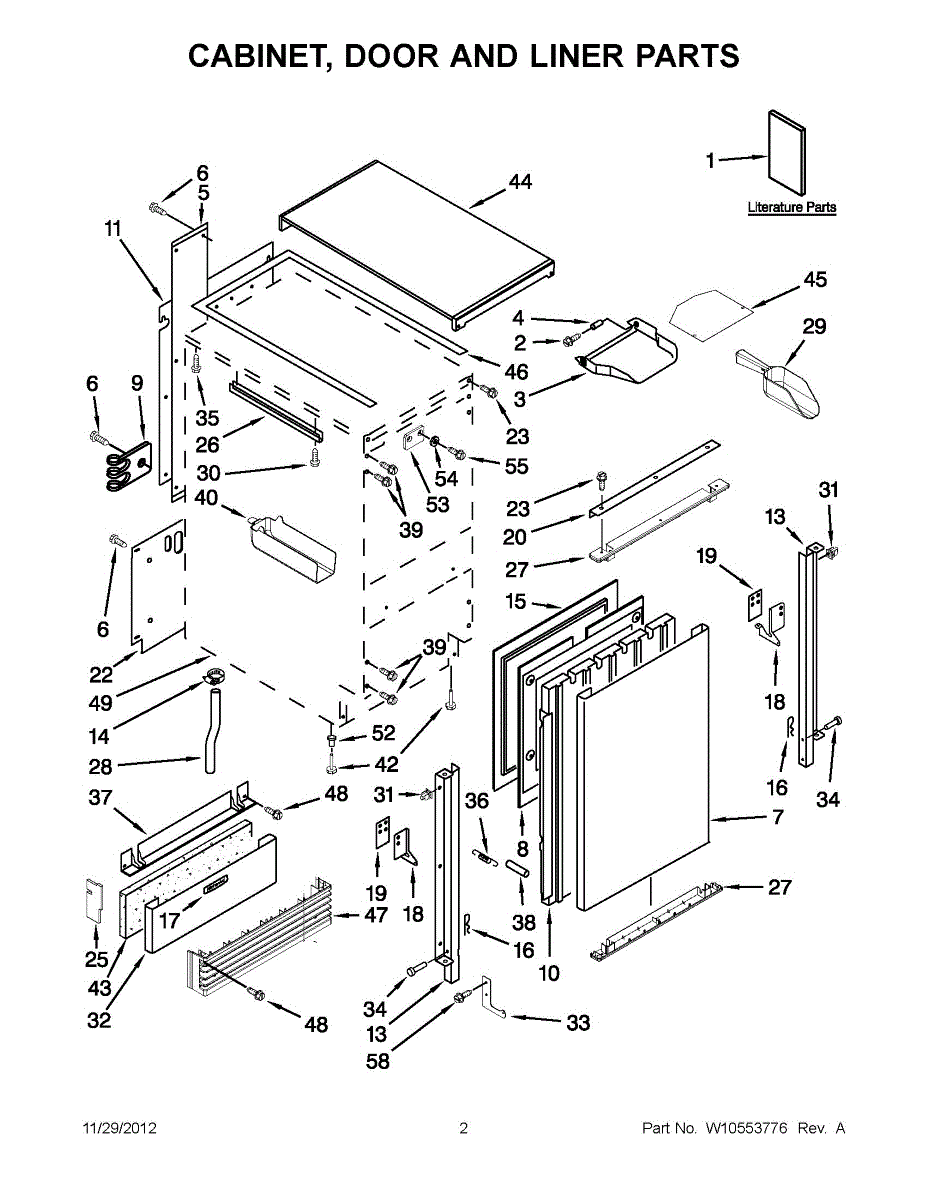

Parts for Kitchenaid KUIS18NNXW1: 01 - Cabinet, Door And Liner Parts

Size: 8-18 x 1 1/4 inch.

This replacement door bin restores inside-door storage on your refrigerator so bottles, condiments and small items stay organized and secure. Durable molded plastic matches the original fit and function. What it does:

• Provides a removable shelf inside the refrigerator door to hold bottles, jars and small containers
• Replaces cracked, broken or missing door storage that no longer secures items
• Restores original storage capacity and prevents items from falling when opening the door
• Fits into existing mounting ledges or rails and snaps into place for everyday use

• Empty contents from the damaged bin before removal
• Most installations are tool-free—lift out the old bin and snap the new one into the door ledges
• Inspect door ledges for damage before installing; replace any broken mounting clips if needed
• Handle carefully to avoid sharp edges on broken plastic and follow safety precautions

This spacer positions and supports appliance components to maintain correct clearance and alignment, helping parts fit securely and reducing wear. Replace damaged or missing spacers to restore proper component spacing and quiet operation. What it does:

• Keeps panels, brackets or assemblies properly spaced to prevent rubbing and misalignment
• Helps maintain correct clearance for moving parts and seals
• Reduces vibration and noise caused by loose or shifted components
• Restores fit when a broken or worn spacer allows parts to sit unevenly

• Disconnect power before servicing; follow all safety instructions in your owner's manual
• Confirm correct orientation and placement before tightening fasteners
• Inspect surrounding parts (brackets, fasteners, mounting points) and replace if damaged

Size: 8-18 x 1/2 inch.

This exterior door panel restores the dishwasher's front appearance and protects the inner door assembly from everyday wear. A factory-style replacement that matches original color and finish for a clean, finished look. What it does:

• Replaces a scratched, dented, or faded outer door surface to improve appearance.
• Covers and protects inner door components and trim from moisture and damage.
• Helps ensure the control panel and handle area have a proper mounting surface and alignment.
• Matches original color/finish so the appliance looks consistent with the rest of the cabinet.

• One exterior door panel

• Install requires removing the door trim and possibly the inner door liner; follow for panel removal and reassembly.
• Handle and control trim may need to be transferred; only the outer panel is listed as supplied.
• Use caution supporting the door during disassembly to avoid dropping or damaging the door or hinges.
• Disconnect power and water to the appliance and follow all safety procedures before beginning repair.

This exterior replacement panel restores the appliance's front appearance and protects internal components from everyday wear. It provides a clean, finished look and covers the underlying framework on the appliance front. What it does:

• Replaces a cracked, dented or chipped front panel to improve appearance
• Shields internal parts from dirt, spills and accidental contact
• Maintains the appliance's original fit-and-finish when replacing damaged trim
• Matches white factory finish for a consistent, OEM-style look

• One white exterior panel

• Disconnect power to the appliance before beginning any repair
• Removal typically requires removing nearby trim or screws—keep hardware organized
• Handle panel edges carefully to avoid scratches; use a soft surface when setting parts down
• Follow the manufacturer's instructions for exact disassembly steps

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

This 18" door gasket seals the appliance door to help maintain proper temperature and efficiency. It replaces a worn or damaged seal so the appliance can run normally and reduce energy loss. What it does:

• Creates a tight seal around the door to help prevent air leaks and temperature drift
• Helps reduce frost or moisture buildup caused by a failing gasket
• Can stop excessive cycling or longer run-times tied to seal failure
• Restores proper door closure for consistent performance

• Disconnect power to the appliance before starting any repair
• Remove the old gasket carefully; some adhesive or retainer clips may be present
• Inspect the door and retainer for damage or debris before installing the new gasket

This retainer clip secures the appliance axle in place to keep rotating parts aligned and running smoothly. Replacing a worn or broken clip helps reduce noise, vibration and drivetrain misalignment for reliable operation. What it does:

• Holds the axle/shaft in position to prevent lateral movement and maintain alignment
• Prevents excessive play that can cause noise, vibration or uneven wear
• Helps keep connected components (drum/rotor/wheel) tracking correctly
• Commonly replaced when clipped, bent or missing after repair or wear

• Disconnect power before starting any repair
• Removal may require pliers or a small punch to release the old clip; reinstall by snapping into the axle groove
• Inspect mating shaft and housing for wear or damage before installing the new clip

Color: White

Color: Black

Color: Stainless

This is a replacement black dishwasher door handle that restores a secure grip and smooth opening/closing of the appliance door. It replaces a cracked, loose or missing handle and matches the original appearance. What it does:

• Provides a sturdy grip to open and close the dishwasher door
• Replaces broken, cracked or loose handles that prevent normal use
• Restores proper alignment and feel when pulling the door
• Helps protect the door edge by covering the handle mounting area

• Disconnect power to the appliance before starting any repair
• Handle typically mounts with screws or clips accessed from the inner door panel; keep parts and fasteners for reassembly
• Use appropriate hand tools and steady support for the door while removing/installing the handle

This cover assembly replaces a damaged or missing unit cover to protect internal components and keep wiring and assemblies secure. It restores the appliance's enclosure and helps maintain safe, reliable operation. What it does:

• Protects motors, wiring and internal components from dust, debris and accidental contact
• Helps reduce vibration-related movement of internal parts by keeping assemblies enclosed
• Restores the appliance's outer enclosure to prevent gaps that could allow foreign objects inside
• Addresses symptoms like cracked, broken or missing covers and loose or exposed internal parts

• Disconnect power to the appliance before starting any repair to avoid electrical shock
• Remove any obstructing panels or components to access the mounting points for the cover
• Align the cover with factory mounting locations and secure all fasteners; do not force or bend the part

The Ice Maker Scoop is an OEM component specifically designed for Whirlpool ice machines. As an included accessory, it provides a sanitary and convenient way for users to fetch ice from the storage bin.

The scoop is strategically designed with an ergonomic handle and wide opening bowl shape. This facilitates easy scooping and transport of ice cubes without spillage or crumbling. Its food-safe materials maintain hygienic conditions in the storage area.

Symptoms of a faulty scoop include:

• Cracks or breaks that compromise the scooping surface
• Leaks or spills of ice when trying to scoop
• Sharp edges that risk cuts or scratches
• Warping or loosening of the handle attachment over time

This OEM Whirlpool scoop is also compatible with some Scotsman and Manitowoc ice machines. Replace yours today to restore safe and hygienic ice retrieval from the storage bin.


Size: 8-18 x 5/8 inch.

This screw grommet anchors a screw in thin appliance panels so trim, covers, or consoles stay tight. It provides a snug, vibration-damping fit where a standard screw could loosen or strip over time.

• Creates a captive insert so a screw can securely fasten to sheet metal or plastic panels
• Replaces a worn, cracked, or missing grommet to restore proper screw retention
• Helps reduce panel rattles and movement from vibration
• Typical signs of failure: screw won't tighten, panel or trim feels loose, grommet falls out

• Disconnect power and shut off gas/water as applicable before servicing
• Remove the screw and lift out the old grommet; clear debris from the opening
• Press the new grommet straight into the hole until fully seated and flush
• Reinstall the screw and tighten gently to avoid deforming the grommet

Size: 8-32 x 1/2 inch.

This tension spring provides the restoring force needed for a moving appliance mechanism, helping parts return to their original position for reliable operation and consistent performance. What it does:

• Supplies tension or return force for hinges, levers, or other moving components
• Restores correct alignment and motion after a cycle or user action
• Can reduce slipping, sagging, or failure to latch when worn
• May stop intermittent noise caused by loose or weak spring action

• Disconnect power before starting any repair; for gas appliances also shut off gas supply
• Springs are under tension; use proper tools and eye protection and follow OEM instructions
• Verify orientation and mounting points match the original spring before installation

This white end cap panel replaces a worn, cracked or discolored side trim to restore the appliance's finished look and protect internal edges. It's a direct-fit cosmetic part that keeps the console area looking clean and complete. What it does:

• Covers and protects the outer edge of the control/console area to hide gaps and mounting points
• Restores uniform appearance when original trim is cracked, broken or faded
• Helps prevent dust and debris from entering side cavities
• Re-establishes proper corner alignment for adjacent trim pieces

• Turn off and unplug the appliance before starting any repair.
• Remove any adjacent trim or screws blocking the end cap; use appropriate hand tools.
• Align tabs or mounting pegs, then press or fasten gently—do not force parts into place.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

This replacement top panel restores the exterior surface and support for the appliance's upper assembly, matching the original black finish for a clean, factory look. It helps seal the cabinet and provides the mounting surface for controls and trim. What it does:

• Replaces a dented, scratched, or rusted top to improve appearance and protect internal components
• Provides the correct mounting surface and alignment for control assemblies and trim pieces
• Helps prevent water and debris from entering the cabinet from above
• Restores a secure attachment point so panels and controls sit flush

• One black top panel as pictured

• Remove power (and gas if applicable) before beginning any repair
• Follow OEM diagram for panel removal sequence; keep fasteners and trim parts organized
• Some slight alignment and clip engagement may be required to seat the panel correctly
• If any fasteners, brackets, or trim are damaged, replace them to ensure a proper fit

This front grille is the exterior trim piece that covers and protects the lower front of an 18-inch built-in ice maker, restoring appearance and allowing proper airflow. It replaces a cracked, faded, or damaged grille to keep the unit looking finished. What it does:

• Covers the ice maker's lower front opening and provides a finished appearance
• Protects internal components from debris while allowing ventilation
• Helps prevent drafts and keeps the trim line sealed and tidy
• Common symptom: grille is cracked, broken, loose, or discolored

• Designed for drop-in or snap-fit replacement at the front of the ice maker;
• Remove power to the appliance and empty nearby ice/water before beginning service
• Use basic hand tools; avoid excessive force to prevent breaking surrounding trim

Size: 8 x 1-1/4 inch.

This genuine fastener secures panels and components on compatible appliances so panels and parts stay safely in place during use. Small and simple, it restores proper fit where a missing or damaged screw causes loose or rattling parts. What it does:

• Fastens panels, brackets, or small components to restore secure attachment
• Helps eliminate loose panels, rattling, or misaligned parts caused by missing hardware
• Used wherever the OEM screw is specified for a clean, factory-fit repair
• Matches the original thread and head style for proper engagement

• Always disconnect power and water before starting appliance repairs
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start threads, then tighten snugly — do not overtighten to avoid damaging parts
• Keep small parts away from children and pets during repair

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance
