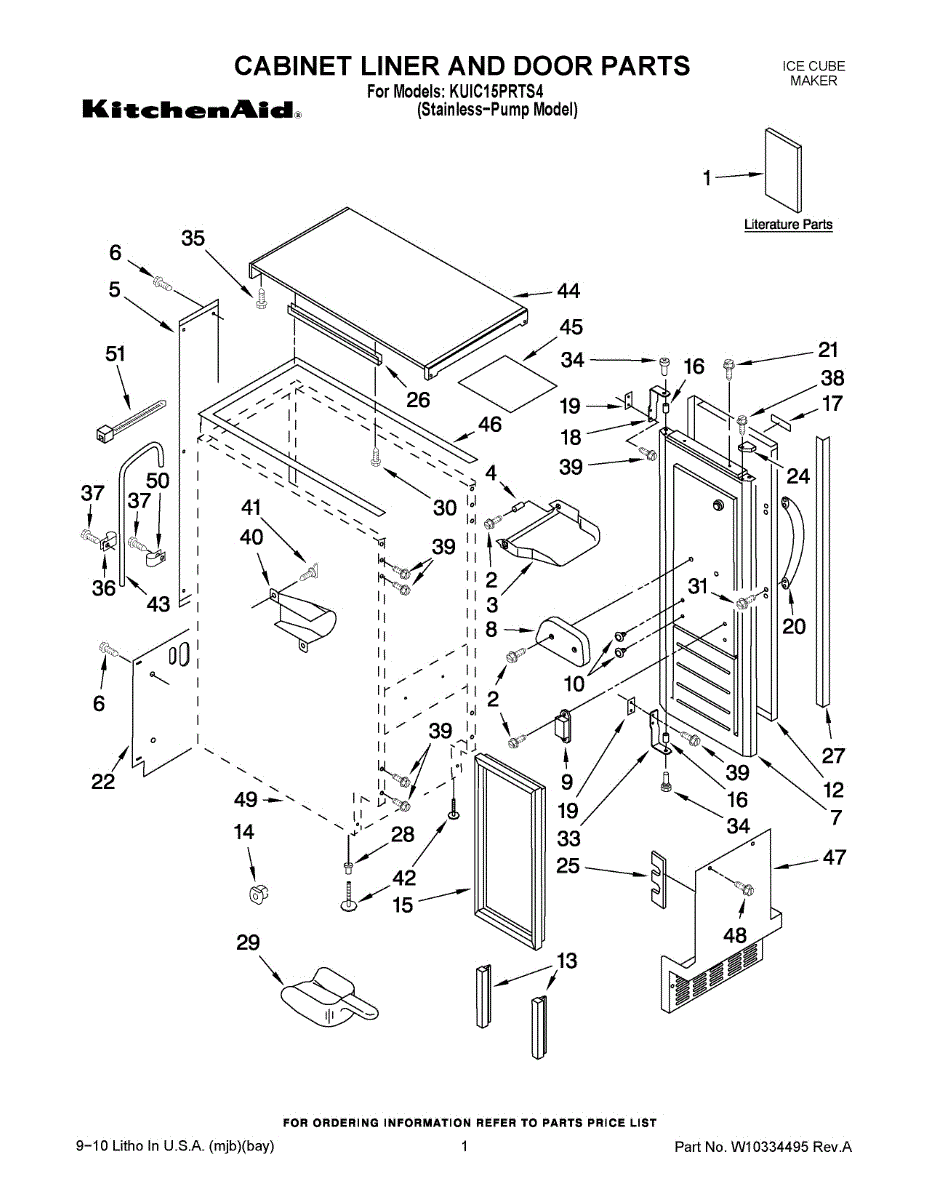

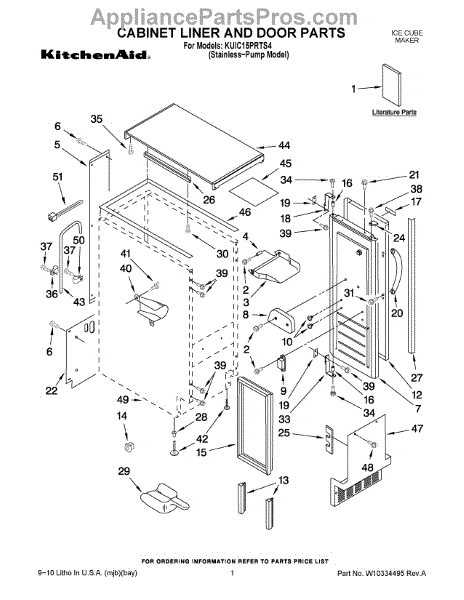

Parts for Kitchenaid KUIC15PRTS4: 01 - Cabinet Liner And Door Parts

Size: 8-18 x 1 1/4 inch.

This spacer positions and supports appliance components to maintain correct clearance and alignment, helping parts fit securely and reducing wear. Replace damaged or missing spacers to restore proper component spacing and quiet operation. What it does:

• Keeps panels, brackets or assemblies properly spaced to prevent rubbing and misalignment
• Helps maintain correct clearance for moving parts and seals
• Reduces vibration and noise caused by loose or shifted components
• Restores fit when a broken or worn spacer allows parts to sit unevenly

• Disconnect power before servicing; follow all safety instructions in your owner's manual
• Confirm correct orientation and placement before tightening fasteners
• Inspect surrounding parts (brackets, fasteners, mounting points) and replace if damaged

Size: 8-18 x 1/2 inch.

This catch assembly secures the appliance door in the closed position, restoring proper latching and preventing unwanted openings. It's a direct-fit replacement designed to match the original OEM function. What it does

• Holds the door closed so seals stay engaged and the appliance maintains internal temperature
• Prevents the door from popping open or rattling during operation or transit
• Helps stop issues like airflow loss, frequent door alarms, or intermittent cycling caused by a loose latch
• Matches OEM fit and mounting points for straightforward replacement

• One catch assembly

• Disconnect power (and water if applicable) before starting any repair
• Remove the door panel or trim required to access the existing catch; keep screws and fasteners organized
• Compare the new part to the old part before installation to ensure fit and orientation
• After installation, cycle the door several times to ensure secure engagement and proper alignment

Color: white.

This is the bottom door gasket that seals the lower edge of the appliance door to keep cold in and moisture out. It helps maintain proper temperature and prevents drafts that can cause frost or energy loss. What it does

• Forms a tight seal along the bottom of the door to prevent air and moisture leaks
• Helps stop frost buildup, condensation, and uneven cooling in the compartment
• Reduces compressor run time and energy loss caused by a compromised seal
• Restores proper door closure and consistent internal temperature

• One bottom-of-door gasket

• Inspect the door surface and channel for debris or old adhesive; clean before installing
• Warm and flex the gasket as needed for easier fit; follow OEM alignment and fastener sequence
• Use basic hand tools; avoid sharp tools that could nick or tear the gasket

This 15-inch door gasket is a direct-replacement sealing gasket that restores a tight door seal to the appliance, helping reduce heat and air leaks for more consistent temperature control and improved efficiency. What it does:

• Seals the door edge to prevent loss of heat, steam, or cooled air during operation.
• Helps maintain consistent internal temperature for proper cooking/drying/operation.
• Common symptoms it can fix: visible cracks, tears, flattening, gaps, or a door that does not close flush.
• Reduces stray heat or moisture around the appliance that can indicate a worn seal.

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the old gasket carefully and inspect the sealing channel for debris or damage before installing the new gasket.
• Start installation at the top and press the gasket evenly into the channel, working around the door so the flange seats fully; replace any fasteners or clips as needed.
• Do not stretch, trim, or modify the gasket unless OEM instructions explicitly direct it; the appliance diagram for orientation.

Color: Stainless

Replacement cover assembly that protects internal components and restores the appliance's appearance. Installs in place of a cracked or missing cover to prevent exposure and reduce vibration noise. What it does:

• Shields internal parts from dust, dirt and accidental contact
• Restores the appliance's finished look after damage or wear
• Reduces rattling or vibration caused by a loose or missing cover
• Helps keep components secured and prevents foreign objects from entering

• Disconnect power (unplug or switch off breaker) before starting any service
• Basic hand tools required; follow the appliance's service manual or diagram for removal/installation steps
• Wear gloves to protect against sharp edges and handle the cover gently to avoid cracking

Color: Black. This is the left side endcap filler. For right side use 2185656B.

Color: Black. This is the right side endcap filler. For left side use 2185655B.

The Ice Maker Scoop is an OEM component specifically designed for Whirlpool ice machines. As an included accessory, it provides a sanitary and convenient way for users to fetch ice from the storage bin.

The scoop is strategically designed with an ergonomic handle and wide opening bowl shape. This facilitates easy scooping and transport of ice cubes without spillage or crumbling. Its food-safe materials maintain hygienic conditions in the storage area.

Symptoms of a faulty scoop include:

• Cracks or breaks that compromise the scooping surface
• Leaks or spills of ice when trying to scoop
• Sharp edges that risk cuts or scratches
• Warping or loosening of the handle attachment over time

This OEM Whirlpool scoop is also compatible with some Scotsman and Manitowoc ice machines. Replace yours today to restore safe and hygienic ice retrieval from the storage bin.


Size: 8-18 x 5/8 inch.

This hinge pin secures the appliance door to its hinge assembly, letting the door pivot smoothly and stay properly aligned. Replacing a worn pin restores correct door movement and helps prevent rubbing or sagging. What it does:

• Acts as the pivot point that holds the door to the hinge assembly.
• Restores smooth opening and closing when the original pin is worn or damaged.
• Helps correct door sag, uneven gaps, and contact between door and cabinet.
• Prevents excessive wear of hinge components when replaced promptly.

• One hinge pin

• Disconnect power (or unplug) and empty/remove the door or support it per your manual before starting.
• Support the door while removing the old pin to avoid injury or damage.
• Basic hand tools are typically required; avoid forcing parts and inspect hinge parts for additional wear.

Size: 8-32 x 1/2 inch.

Size: 8-18 x 3/4 inch.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This scoop holder is a replacement freezer-door accessory that keeps the ice scoop secure, hygienic, and within easy reach. It restores the built-in storage location so your scoop stays put and ready when you need it. What it does:

• Provides a dedicated clip/mount to hold the ice scoop on the freezer door or bin
• Keeps the scoop off surfaces to reduce contamination and dripping
• Prevents the scoop from falling out when opening or closing the door/bin
• Restores proper storage when the original holder is cracked, broken, or missing

• Typically snaps into the designated slot on the freezer door or bin; no special tools required for most installs
• Align the holder and press firmly until it clicks into place; replace cracked or broken surrounding tabs if necessary
• Handle gently to avoid damaging door bins or trim during installation

Size: 10-32 x 5/8 inch.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Color: Black.

Size: 8 x 1-1/4 inch.

A small metal clamp that secures flexible hoses or tubing in laundry and kitchen appliances to prevent leaks and keep connections tight. Simple, durable replacement for a worn or loose hose fastening point. What it does

• Holds a hose or tube firmly to a barb, fitting or nipple to stop leaks and movement
• Restores a secure connection where a cracked or corroded clamp allows fluid or air escape
• Common service item for loose drain, fill, or vent hoses showing seepage or slipping
• Helps maintain proper appliance function by ensuring sealed hose connections

• One clamp

• Disconnect power and water before servicing; follow your appliance safety procedures
• Inspect mating hose and fitting for damage; replace hose if cut or brittle
• Use the correct pliers or clamp tool for safe installation and to avoid over-tightening
