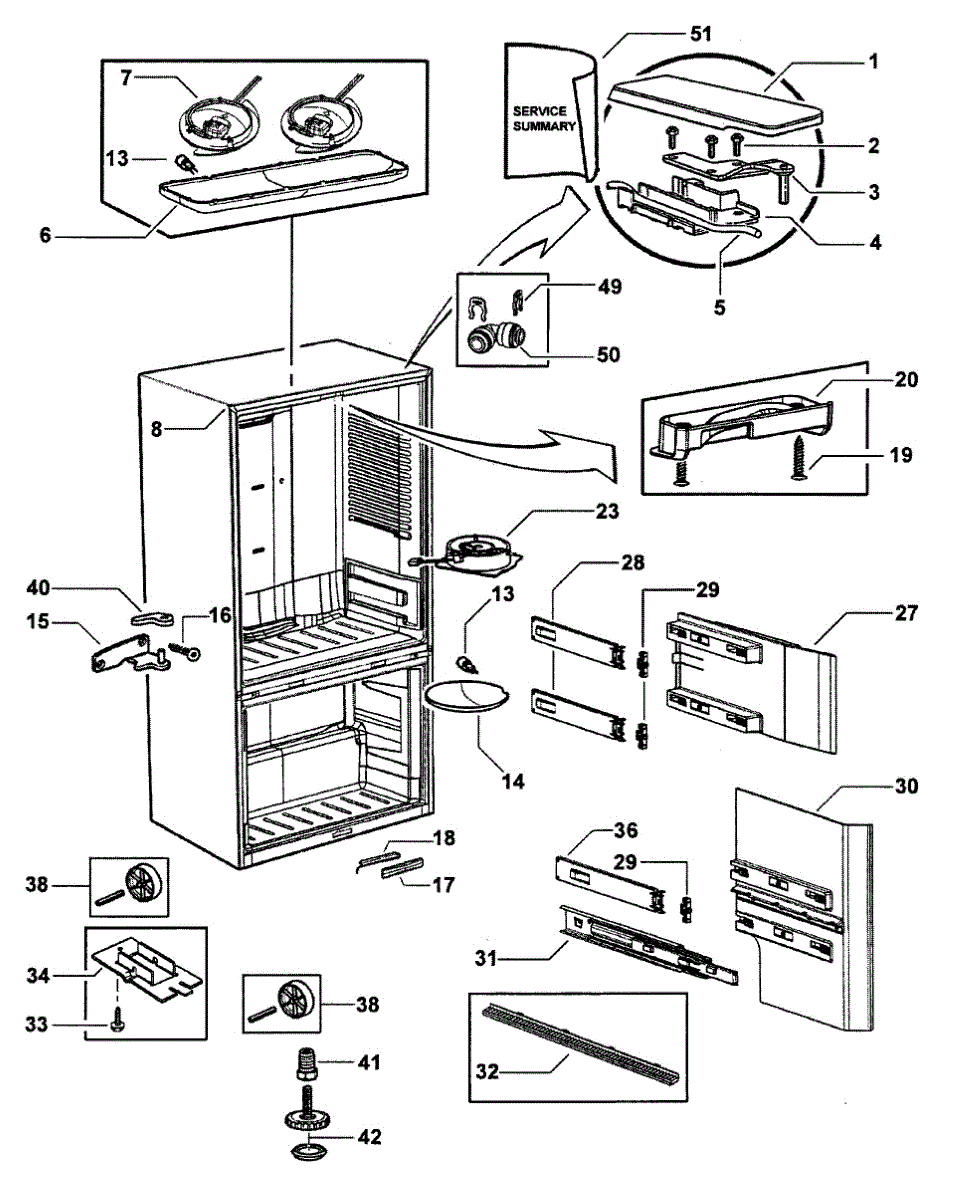

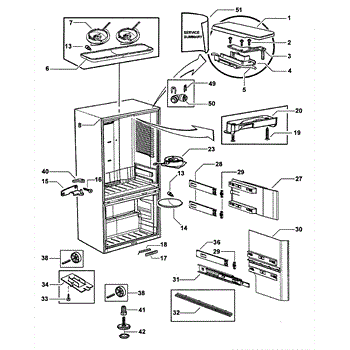

Parts for RF201ADUX-22302A: Cabinet Parts

This light cover is the replacement lens that protects and diffuses the interior appliance bulb, restoring even illumination and covering the lamp assembly from damage. It's a simple way to refresh a cracked or missing light lens. What it does:

• Covers and protects the interior light bulb and socket from spills and impact
• Diffuses the bulb for softer, more even interior lighting
• Replaces cracked, yellowed, or missing lens that can cause glare or exposed bulb
• Helps restore proper illumination so controls and contents are easier to see

• Disconnect power to the appliance before servicing to avoid shock
• Remove the old lens carefully to avoid breaking remaining plastic or bulbs
• Press or snap the replacement lens into place until securely seated; do not force

This PC fan assembly replaces the small cooling fan used to move air across the appliance's electronic control board, helping keep electronics cooler and reducing thermal stress for reliable operation. What it does

• Circulates air to cool the main control/PC board and nearby components
• Prevents overheating that can cause control errors or shutdowns
• Reduces fan noise or vibration when a failed fan is replaced
• Restores proper airflow if a burned, seized, or intermittent fan was the issue

• Disconnect power before accessing the control housing or PC board
• Handle the control board and connectors carefully to avoid damage from static or flexing
• Verify fan connector orientation and secure mounting; route wiring away from moving parts

This Slide 305 RH assembly is the right-hand drawer slide that guides and supports a refrigerator/freezer drawer for smooth opening and secure alignment. It restores proper drawer movement and helps prevent sagging or binding. What it does:

• Guides the drawer along its track for smooth, even travel
• Supports drawer weight to prevent sagging or tilting
• Keeps the drawer aligned to ensure full opening and closing
• Helps stop sticking, binding, or noisy drawer operation

• Remove contents and fully open the drawer before starting; follow the appliance manufacturer's service instructions
• Use basic hand tools; keep fasteners and clips from the old slide to match orientation
• Check and install the matching left-hand slide if replacing both sides for proper alignment

This right-hand drawer slide assembly restores smooth opening and secure support for a freezer or refrigerator drawer. It replaces a worn or damaged side slide to help drawers glide evenly and stay aligned. What it does:

• Guides and supports the drawer on the right side for smooth opening and closing
• Prevents sagging, catching, or uneven drawer movement
• Helps stop the drawer from falling out or binding during use
• Restores proper alignment for full-extension or partial-extension drawers

• Disconnect power and remove the drawer before installing
• Verify left/right orientation and part number match the existing slide before fitting
• Typical installation uses basic hand tools; retain fasteners unless replacements are provided
• If the drawer has rollers or additional bracketry, inspect those parts and replace if worn

This wheel leveling foot assembly replaces a damaged or worn support that helps stabilize and move the appliance while allowing height adjustment. It restores smooth rolling and proper leveling for safe, even operation. What it does:

• Provides a rolling wheel for moving the appliance and a threaded foot for height adjustment
• Helps stabilize the appliance and keep it level on uneven floors
• Reduces floor wear and makes service moves easier
• Addresses symptoms like uneven cabinet alignment, rocking, or sticking when rolling

• One wheel leveling foot assembly

• Turn off and unplug the appliance before servicing; disconnect water if present
• Use proper lifting support or have a second person hold the appliance when removing/installing leveling feet
• Thread or snap the assembly into the existing bracket per OEM alignment; hand-start threads to avoid cross-threading
• Replace any missing or damaged mounting hardware with OEM parts for proper fit

This left-hand slide assembly replaces a worn or damaged drawer slide to restore smooth, stable drawer movement. It fits into the appliance's left side and helps keep the drawer aligned during use. What it does:

• Guides and supports the drawer so it opens and closes evenly
• Replaces bent, worn, or broken left-side slide hardware
• Helps stop the drawer from sticking, sagging, or coming off the track
• Works as a direct-fit service part when the left slide is the failed component

• Disconnect power and remove the drawer or access panel before starting, if applicable
• Compare the new slide to the old part to confirm orientation and fastener locations
• Use common hand tools; tighten fasteners securely but avoid overtightening

Left-hand drawer slide assembly that supports and guides a refrigerator or freezer drawer for smooth movement and reliable alignment. Replaces a worn or damaged left-side slide to restore proper drawer glide and support. What it does:

• Guides and supports the left side of a pull-out drawer for smooth opening and closing
• Keeps the drawer aligned and prevents tipping or binding under load
• Restores proper operation when a drawer is hard to open, sticks, or falls out of track
• Works as the left-side mating component in the drawer slide system

• Remove drawer contents and fully support the drawer before removing the old slide
• Use basic hand tools; do not force parts—match mounting points and fasteners
• If wiring or components are adjacent, disconnect power to the appliance before starting
