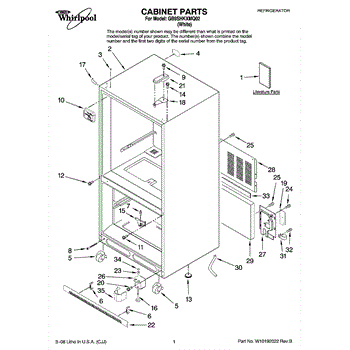

Parts for Whirlpool GB9SHKXMQ02: 01 - Cabinet Parts

A white plastic button plug that replaces a missing or damaged control-panel button cover. Restores the panel's appearance and helps keep the control area cleaner for reliable button use. What it does:

• Replaces a cracked, broken, or missing control-panel button plug
• Covers unused or damaged button openings to improve appearance
• Helps reduce dirt and moisture entry around the button area
• Snap-in design restores a flush, finished look to the control panel

• Typically snaps into the control panel—press evenly until fully seated
• No specialized tools required in most installations
• Disconnect power to the appliance before servicing

A replacement center hinge pin that secures the refrigerator door at the center hinge assembly to restore proper pivoting and alignment. Use this pin to correct door sag or uneven closing caused by a worn or bent hinge pin. What it does

• Secures the door to the center hinge so the door can pivot smoothly.
• Restores proper door alignment and helps the door seat evenly against the cabinet.
• Commonly used to address door sag, rubbing, uneven gaps, or difficulty closing.
• Works as a direct replacement for the center hinge pivot in the hinge assembly.

• Always disconnect power to the appliance before servicing to avoid electrical hazards.
• Support the door and follow the appliance manufacturer's hinge removal steps before removing or installing the pin.
• Inspect surrounding hinge components (bushings, brackets) for wear while replacing the pin; replace as needed.

This factory screw secures appliance panels, brackets, or trim. Replace a missing, stripped, or rusted fastener to restore a tight, rattle-free fit and keep components properly aligned in the intended OEM locations. What it does

• Fastens brackets, trim, or sheet-metal panels to the chassis
• Replaces worn, rusted, or missing hardware
• Helps eliminate loose panels, vibration, and misalignment
• Restores proper fit and support for affected assemblies

• Includes 1 screw

• Disconnect power and shut off gas/water before servicing
• Match this screw to the original location; lengths and thread types can vary by position
• Use the correct driver; start by hand and do not overtighten to avoid stripping threads
• If the receiving threads are damaged, repair/replace the mating clip or insert before installing

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This center hinge assembly secures and supports a refrigerator door, helping it pivot smoothly and stay aligned for a tight seal. Replaces a worn or damaged hinge to restore proper door movement and closure. What it does:

• Provides the pivot point that lets the door open and close smoothly
• Restores proper door alignment to prevent gaps that let cool air escape
• Stops door sagging or uneven operation caused by a worn hinge
• Reduces scraping, binding, or unusual noises at the door pivot

• One center hinge assembly

• Disconnect power to the appliance before beginning any repair
• Support or remove the door to avoid injury or damage
• Use the original mounting hardware or OEM-specified fasteners for secure installation
• Check door alignment and gasket seal after installation; adjust as needed

This leveling foot adjusts the height and balance of your appliance so it sits stable and operates correctly. Replacing a worn or missing foot helps reduce vibration, noise, and unwanted movement during use.

• Supports and stabilizes the appliance by adjusting height at the base
• Helps correct rocking, excessive vibration, or walking during operation
• Can resolve rattling noises caused by uneven footing
• Aids proper door alignment and smooth operation when leveled

• Unplug power and shut off water (if applicable) before servicing
• Tilt or carefully raise the appliance to access the foot
• Thread the new foot in by hand; adjust to level with a bubble level
• Tighten any jam nut or lock mechanism if present; recheck level after placement

This top hinge assembly mounts at the upper corner of the cabinet to support the refrigerator door and allow smooth pivoting. Replacing a worn hinge restores proper door alignment and helps the gasket seal reliably.

• Supports the door's weight at the top and provides the pivot point
• Helps maintain correct door alignment and closing action
• Aids in consistent gasket contact to minimize warm-air leaks
• Common symptoms of a failing hinge: door sagging or rubbing, uneven gaps, poor sealing, squeaks or popping noises

• Unplug the refrigerator and, if applicable, turn off the water supply
• Have a helper support the door; remove the hinge cover, then the hinge screws
• Note/mark hinge position and transfer any shims or spacers from the original hinge
• Reinstall and adjust for even gaps; verify the door swings freely and the gasket seals all around

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This top hinge cover protects and conceals the refrigerator/washer hinge area for a clean, finished look while preventing dirt buildup and reducing contact with sharp edges. It restores appearance and keeps the hinge area shielded. What it does:

• Covers the top hinge assembly to protect the hinge and surrounding cabinet
• Helps prevent debris and moisture from contacting hinge components
• Improves appliance appearance by concealing mechanical parts
• Reduces the risk of accidental scrapes on exposed hinge edges

• Disconnect power and empty/secure any nearby doors or panels before beginning.
• Typically snaps or screws into place over the hinge; align carefully to avoid damage.
• Use recommended fasteners and avoid over-tightening to prevent cracking.

This Bottom Hinge Pin supports the refrigerator door at the lower hinge, providing a smooth, stable pivot. Replace a worn or bent pin to restore proper door alignment, closing action, and gasket sealing.

• Serves as the pivot point for the door on the bottom hinge bracket
• Helps maintain alignment so the door gasket seals correctly
• Wear/failure symptoms can include door sagging, wobble at the hinge, squeaks or grinding, and poor self-closing
• Replacing a damaged pin can reduce hinge play and improve door operation

• Disconnect power; turn off water supply if working near a dispenser line
• Remove items from the door and support the door to prevent strain on hinges
• Detach bottom hinge fasteners, lift door off, replace the pin, and reassemble
• Adjust hinges as needed

Screw: 8-16 x 3/8 inch.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This nonmetal shim acts as a precise spacer/isolator within an appliance assembly to set correct clearance and alignment between parts. Replacing a worn or missing shim can reduce vibration, prevent rubbing, and help maintain smooth operation.

• Maintains proper spacing between mating parts to ensure correct alignment
• Helps reduce vibration, rattling, and premature wear from parts contacting
• Nonmetal construction provides electrical isolation and resists corrosion
• Common signs of a bad/missing shim: scraping noises, visible misalignment, or excess play at the joint

• Disconnect power and shut off water/gas supplies as applicable before servicing
• Match the new shim to the original thickness/position; some assemblies use multiple shims—reinstall in the same locations and order
• Clean mating surfaces and inspect related fasteners/brackets; replace any distorted hardware
• Tighten fasteners evenly to manufacturer specifications and verify smooth, interference-free movement after reassembly
