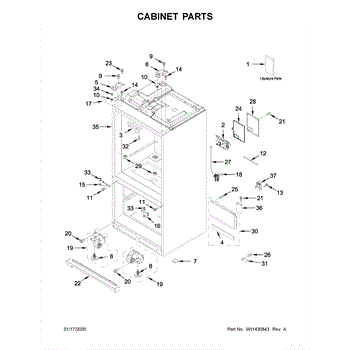

Parts for Kitchenaid KRFF507HPS01: Cabinet Parts

The main control board is an OEM part for Whirlpool refrigerators. As the central command module, it directs all temperature and function regulation.

Symptoms of a bad main control board include:

• Fluctuating temperatures cause freezer burn or thawing
• Fault codes and error messages on digital displays
• Inability to engage desired cooling presets efficiently
• Potential leakage currents posing electrical safety risks

Causes involve liquid damage degrading circuit boards over time, physical cracks interrupting power after repeated door usage, as well as individual component failures affecting coils or sensors.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid.

Mullion Pivot Block secures the refrigerator door mullion pivot, helping doors stay aligned and operate smoothly. Replacing a worn or broken pivot block restores proper pivot support and reduces door binding or uneven gaps. What it does:

• Supports the door mullion pivot to keep doors properly aligned and stable.
• Provides a wear surface for the pivot point to prevent metal-on-metal contact.
• Helps reduce door sagging, uneven gaps, binding, or rough door movement.
• Mounted at the mullion/pivot point to maintain correct door swing and closure.

• Disconnect power to the appliance before starting any repair to avoid electrical hazard.
• Support the door while removing or installing the pivot block to prevent the door from dropping or causing injury.
• Use the original fasteners or manufacturer-recommended replacements; ensure the pivot is seated and door alignment is checked after installation.

This hinge cover assembly replaces a damaged or missing refrigerator hinge trim to protect the hinge, hide mounting hardware, and restore a finished appearance. It's a direct-fit exterior trim piece that improves safety and looks. What it does:

• Covers and protects the door hinge and mounting hardware from dust and damage
• Hides exposed screws and metal for a clean, finished appearance
• Prevents debris buildup around the hinge area that can interfere with movement
• Commonly replaced when cracked, broken, or missing, or when the hinge area looks worn

• Disconnect power to the appliance before beginning any service
• Use basic hand tools; retain associated screws and brackets during removal
• Align cover over the hinge and secure without over-tightening to avoid cracking
• If hinge hardware is bent or damaged, replace hardware before installing the cover

Color: Grey

Top-left refrigerator door hinge assembly that restores the cabinet pivot and keeps the door aligned for a proper seal. Replaces a worn or damaged top hinge to reduce door sag and improve opening/closing action. What it does:

• Provides the top pivot and mounting point for the refrigerator door; a failed hinge can cause door sag or uneven gaps.
• Secures the door to the cabinet so the gasket can seal properly; symptoms include cold loss or visible top gap.
• Restores smooth opening and closing when binding, scraping, or wobbling occurs at the top of the door.
• Replaces corroded, bent, or broken hinge parts that prevent proper door alignment.

• Disconnect power to the appliance before starting and remove food/items from the door.
• Support the door while removing/installing the hinge—use a second person or prop to prevent the door from falling.
• Keep original mounting hardware; replace any damaged fasteners and tighten securely without over-torquing.
• After installation, check door alignment and gasket contact; adjust hinge or strike as needed for a consistent seal.

This top hinge assembly fits the right-hand refrigerator door. Replacing a worn or damaged hinge restores smooth door movement and correct alignment so the door closes securely and the gasket seals to maintain proper temperature. What it does:

• Supports and pivots the door at the top
• Keeps the door aligned for even gaps and reliable gasket contact
• Replaces a bent, loose, or broken hinge to stop door sagging or rubbing
• Common symptoms include popping/clicking at the top, poor closing, or uneven spacing

• One right-hand top hinge assembly

• Disconnect power before servicing
• Have a second person support the door while removing the hinge
• Remove the top hinge cover and screws, lift the door off, install the new hinge, and reinstall screws
• Rehang and align the door; confirm the gasket seals evenly before restoring power

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This replacement screw fastens appliance components to restore secure connections and reduce vibration or rattling. Use it when panels, brackets, or assemblies are loose or moving. What it does:

• Secures panels, brackets, and small appliance parts to prevent movement
• Restores proper alignment for doors and trim that shift from loose hardware
• Helps eliminate vibration noise caused by loose fasteners
• Works with assemblies that use standard machine/sheet-metal screws

• Disconnect power or gas supply before servicing the appliance
• Use the correct driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or damage parts
• Inspect surrounding components and replace any damaged clips or hardware as needed

Color: Grey

The Door Hinge is an OEM part for Whirlpool refrigerators. It is responsible for allowing for smooth opening and closing of the door. It also maintains the alignment of the door and prevents any sagging or misalignment issues.

A bad door hinge can occur due to wear and tear, excessive weight on the door, or accidental damage. If you notice symptoms such as difficulty in opening or closing the refrigerator door, a loose or sagging door, or an improper seal, it may be time to replace the center door hinge.

Symptoms of a bad door hinge include:

• Difficulty in opening or closing the refrigerator door
• Loose or sagging door
• Improper seal leading to temperature fluctuations

Repair your refrigerator by replacing the faulty or worn-out center door hinge with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It plays a crucial role in supplying water to the refrigerator's ice maker and water dispenser. This valve opens and closes to allow water to flow into the appliance as needed, ensuring that you have access to fresh ice and cold water whenever you need it.

Symptoms of a bad Water Inlet Valve include:

• The refrigerator’s ice maker not producing ice or producing very small or malformed ice cubes.
• No water being dispensed, or the water dispenser running slowly.
• Leaking water from the valve area, which may indicate a crack or failure in the valve itself.

Causes of a bad water inlet valve can include mineral build-up from hard water, which can block the flow or cause the valve to stick open or closed; wear and tear over time that affects the valve’s ability to function properly; or electrical failures that prevent the valve from receiving the signal to open or close.

This OEM part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This front toe-kick grille mounts across the bottom of the refrigerator. It restores a clean, finished look while helping direct airflow through the condenser area and shielding components from bumps, dust, and debris.

• Provides the finished kickplate across the lower front of the cabinet
• Helps direct ventilation airflow through the condenser compartment
• Replace if cracked, warped, missing, or if it won't stay attached
• Can eliminate rattling from a loose or damaged kickplate

• Disconnect power before servicing
• Remove the old grille by releasing snap tabs or removing screws (varies by model)
• Align the new grille with the mounting slots and press firmly until it seats, or reinstall screws
• Ensure vent openings are clear and that doors open/close without interference

This water tube guides the refrigerator's water from the inlet to the dispenser and ice maker, ensuring a steady flow where needed. Replaces a damaged or clogged tube to restore proper water delivery and help prevent leaks. What it does

• Channels incoming water to the dispenser and ice maker assemblies.
• Restores normal dispenser flow when the original tube is cracked, pinched, or blocked.
• Helps stop leaks that occur from split or deteriorated tubing.
• Supports proper ice maker fill cycles by maintaining an unobstructed water path.

• One replacement water tube.

• Turn off the refrigerator and shut off the water supply before starting work.
• Inspect and replace any worn clamps, seals, or grommets encountered during installation.
• Use appropriate hand tools; avoid overtightening fittings to prevent damage.

The Refrigerator Door Switch is an OEM part for Whirlpool refrigerators. This switch monitors the opening and closing of the refrigerator door, activating lights and functions as needed while also keeping track of door activity for diagnostics purposes.

Causes of failure may be from normal wear and tear over time, moisture damage, or impact if the door is accidentally slammed.

Symptoms of a bad door switch include:

• Lights not turning on/off with door movement
• Dispensers or ice/water not working properly
• Cooling and freezing performance affected
• Error codes related to door operation

This OEM replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models as well.

This unit compartment cover is the rear access panel for the refrigerator's machine area. It protects internal components and helps channel condenser airflow to support proper cooling performance while keeping dust and debris out of the compartment.

• Encloses and protects the compressor, condenser, and wiring in the rear machine compartment
• Directs condenser fan air through the coil to aid heat removal and stable temperatures
• Helps reduce noise and block debris entry; restores a clean, finished back panel
• Use when the original cover is bent, cracked, missing, or warped
• Helps if you notice rattling from the back, exposed components, or irregular cooling due to disrupted airflow

• Disconnect power and pull the refrigerator away from the wall for access
• Remove screws securing the old panel; note vent orientation and any tabs
• Position the new cover and fasten with the original hardware; do not overtighten
• Restore power and ensure the ventilation openings remain clear for proper airflow

This door cam coupler links the hinge cam components that control your refrigerator door's movement. Replacing a worn coupler restores smooth opening/closing and proper alignment so the gasket seals correctly and the door stays shut.

• Couples the hinge cam surfaces to guide door travel and detent action
• Helps the door close smoothly and stay open at designed stop points
• Maintains door alignment for even gasket contact and sealing
• Common symptoms of failure: clicking/grinding at the hinge, door sagging or misalignment, door not closing fully or popping back open

• Disconnect power and remove items from the door to reduce weight
• Support the door while removing hinge fasteners; lift door straight off the hinge pin
• Note the original coupler's orientation and install the new part the same way
• Reassemble, then check door alignment and verify a full perimeter gasket seal

A replacement rubber grommet that cushions and protects openings where wiring or components pass through metal panels. Restores proper fit and helps prevent rubbing, chafing, and vibration-related noise. What it does:

• Cushions and isolates wiring, harnesses or shafts from metal edges
• Prevents abrasion and chafing that can cause wire damage or shorts
• Reduces vibration and squeaks where parts pass through panels
• Recommended when grommet is cracked, torn, flattened, or missing

• Disconnect power before inspecting or replacing the grommet
• Remove surrounding panels as needed to access the damaged grommet
• Press-fit into the panel opening; ensure the grommet seats fully and the wire/harness sits in the groove
• Replace any damaged wiring or clips discovered during installation; avoid sharp tools that can nick the rubber
