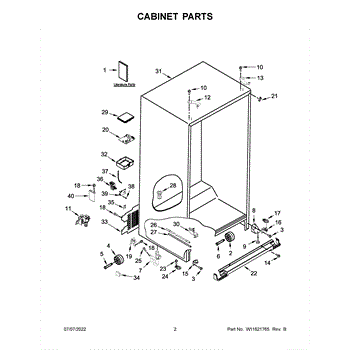

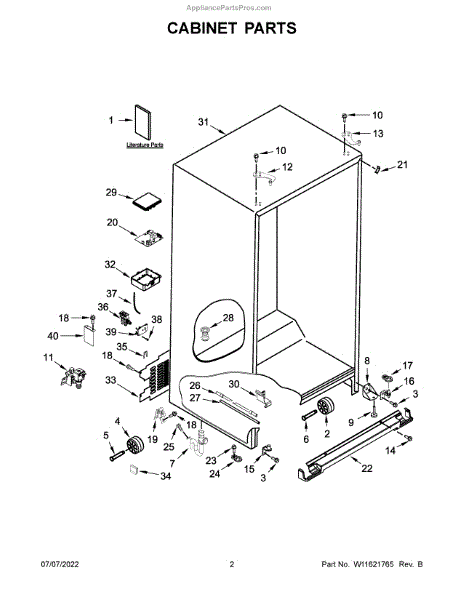

Parts for Kitchenaid KRSC700HPS04: Cabinet Parts

This 1/4-20 screw is a direct replacement fastener used to secure appliance panels, brackets, and assemblies. It restores proper fit and prevents rattling or loose components for safe, reliable operation. What it does:

• Fastens panels, mounting brackets, and components in place
• Replaces missing or stripped screws that cause loose or rattling parts
• Maintains alignment of assemblies to prevent wear and vibration
• Works wherever a 1/4-20 machine screw is specified by the manufacturer

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Use the correct-size driver or socket to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• If the original screw was rusted or seized, apply penetrating lubricant and use proper extraction tools

This steel rivet secures appliance panels and small components, restoring proper fit and preventing rattles or loose parts. It's a straightforward replacement when a worn or missing rivet causes instability. What it does

• Fastens sheet metal or trim pieces to the cabinet or internal brackets
• Restores secure mounting when a previous rivet has sheared or fallen out
• Stops panel vibration or rattling caused by a loose fastener
• Provides a permanent, non-threaded mechanical connection for components

• Replacement typically requires a rivet tool or rivet setter; drill-out may be needed to remove a broken rivet
• Match rivet type and length to the original for a secure fit
• Disconnect power and follow all safety precautions before accessing internal parts

Replacement bracket that secures and supports internal components, restoring firm mounting and reducing rattling. Replaces a worn or damaged bracket to help keep appliance parts aligned for quieter, more reliable operation. What it does:

• Provides a stable mounting point to hold internal components in place
• Reduces rattling, vibration, and misalignment caused by a loose or damaged bracket
• Restores proper component spacing to help prevent contact and wear
• Works as a direct replacement for a failed bracket to return proper function

• Disconnect the appliance from power (and water, if applicable) before servicing
• Handle edges carefully; wear gloves to avoid cuts during removal/installation
• Reuse existing fasteners unless new hardware is specified; ensure bracket is securely tightened and component alignment is checked

Color: Black

Color: Grey

Color: Black

The Hinge-Door is an OEM part for Whirlpool refrigerators. The refrigerator door hinge is a crucial component that allows the door to properly open and close while securely holding it in place. These hinges are responsible for smooth and reliable door operation through thousands of openings and closings.

Causes of a bad hinge can include wear and tear from prolonged use, stress from overloading the door, or accidental impact damage.

Symptoms of a bad hinge include:

• The door not closing properly or staying fully shut
• Difficulty or resistance when opening/closing the door
• The door sagging or wobbling excessively
• Noise or grinding sounds coming from the hinge area

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 8-18 threaded screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening where a missing or damaged screw causes loose parts or vibration. What it does

• Fastens panels, brackets, and small assemblies to the appliance frame
• Replaces stripped, corroded, or missing screws that cause rattling or loose components
• Helps maintain proper alignment of panels and controls for safer operation
• Suitable where an 8-18 threaded machine screw is specified by the manufacturer

• One replacement screw

• Disconnect power to the appliance before service to prevent shock or injury
• Use the correct driver to avoid stripping the screw head; do not force mismatched tools
• Tighten until snug — avoid over-tightening which can strip threads or crack plastic
• If replacing multiple fasteners, check mating threads and replace any damaged clips or anchors as needed

Color: Black. For biscuit order 98008169. For white order WP98008544.

This door hinge secures and lets a refrigerator door pivot smoothly, restoring proper alignment and a tight seal so the appliance closes reliably. It replaces a worn or damaged hinge to reduce sagging and misalignment. What it does:

• Provides the pivot point that holds the refrigerator door in correct position
• Restores proper door alignment to help the gasket seal and maintain cooling
• Stops door sagging, scraping, or uneven gaps that can prevent full closure
• Reduces noisy or stiff door movement caused by a damaged hinge

• Disconnect power to the appliance or unplug the refrigerator before starting.
• Remove food and shelves or support the door to prevent damage while replacing the hinge.
• Use appropriate hand tools; keep fasteners and any small parts together for reassembly.

Color: Grey

The Hinge Door is an OEM component specifically designed for Whirlpool refrigerators. It acts as the pivot point and support for the refrigerator door, controlling its movement on its hinges. The hinged door functions to securely hold the door in place while facilitating easy and reliable opening and closing.

Symptoms of a bad hinge door include:

• Loose or sagging refrigerator door that does not stay shut properly
• Difficulty smoothly opening and closing the door
• Excessive noise or vibration coming from the hinges
• Door alignment issues causing gaps around the door seal

Causes of a bad hinge door can include normal wear and tear over time, strain from heavy door usage, or damage from accidental impacts.

Color: Black

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Hinge is an OEM part for Whirlpool refrigerators. It supports and allows the smooth opening and closing of the refrigerator door. It also maintains the door alignment and the door seal, preventing cold air from escaping and keeping your food fresh.

A bad door bottom hinge can occur due to wear and tear over time, accidental damage, or excessive weight on the door. If you notice symptoms such as a sagging or misaligned door, difficulty in opening or closing the door, or a loose or wobbly hinge, it may be time to replace this part.

Symptoms of a bad door bottom hinge include:

• Sagging or misaligned door
• Difficulty in opening or closing the door
• Loose or wobbly hinge

Restore your Whirlpool refrigerator door by replacing the faulty or damaged door bottom hinge with this genuine OEM part.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
Color: Grey

The Cam Door Fridge is an OEM component specifically designed for Whirlpool refrigerators.  It works to operate and support the refrigerator door, controlling its opening and closing movements.  The cam door uses a precisely engineered cam mechanism to provide a smooth and balanced door function.

Causes of a bad cam door can include worn out or damaged parts from repeated opening and closing of the door. The cam mechanism may no longer operate properly if components are broken or out of alignment.

Symptoms of a bad cam door include:

• Difficulty opening or closing the refrigerator door
• The door not staying securely closed or properly sealed
• Excessive noise or vibration coming from the door area
• Door alignment issues causing gaps around the door seal

Color: Black

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This is the lower front grille for select appliances. It finishes the base opening and helps channel airflow to the condenser area while protecting components from bumps and debris.

• Covers the lower front opening and provides a clean, finished look
• Helps direct cooling airflow to the condenser compartment
• Shields components from minor impacts and debris
• Common signs it needs replacement: cracked or missing grille, broken mounting tabs, grille won't stay attached, rattling from a loose or damaged panel

• Disconnect power before servicing; use proper PPE
• Remove existing fasteners or release tabs, then pull the old grille straight off
• Align the new grille and secure with the original screws/clips as configured
• Do not overtighten fasteners; ensure even engagement of all tabs

This base grille covers the lower front of the refrigerator in a midnight gray finish. It directs airflow to the condenser and protects internal components—restoring proper ventilation and a clean, finished look when the original is damaged or missing.

• Covers the toe-kick area and helps channel cooling air through the condenser compartment
• Protects coils and lower components from bumps and debris
• Restores the unit's finished appearance
• Common symptoms include a cracked or missing grille, loose/rattling panel, or broken mounting tabs

• Disconnect power before servicing; use gloves to protect hands from sharp edges
• Open the doors; remove any retaining screws or release the grille's clips, then pull the old grille forward
• Align the new grille with the mounting points and snap or screw into place
• Ensure vents are unobstructed and the grille is secure before restoring power

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This cam-door is a direct-fit replacement part that helps the appliance door operate smoothly and latch securely for proper use. Restores correct door movement and helps prevent gaps or misalignment that stop the door from closing. What it does

• Guides and supports the door latch mechanism so the door opens and closes correctly
• Helps the latch engage fully to maintain a tight, secure door seal
• Worn or broken cams can cause the door to hang, fail to latch, or make scraping/catching noises
• Replacing a damaged cam often restores normal door alignment and operation

• Disconnect power (unplug or turn off circuit breaker) before starting any repair
• Access may require removing the door or inner panel
• Inspect surrounding latch components and replace any damaged parts for reliable operation

This door closing cam mounts at the bottom of the refrigerator door and mates with the hinge cam to raise and lower the door as it swings, promoting smooth self-closing action and a reliable gasket seal.

• Provides lift-and-drop detent at the lower hinge to guide door movement
• Helps the door self-close in the final inches for a consistent seal
• Supports proper door alignment to reduce air leaks and temperature fluctuations
• Common symptoms: door won't self-close, pops/clicks at the hinge, sags or binds, poor seal or moisture around the door

• Disconnect power and remove items from the door to reduce weight
• Support the door; remove hinge cover and lower hinge/pin, then lift the door off carefully
• Replace the cam on the door/hinge as designed; inspect the mating cam and hinge pin and lightly lubricate
• Reinstall, level, and verify smooth closing and proper gasket contact

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This water inlet tube routes supply water from the inlet valve into the appliance's internal water path, restoring a secure flow path and helping prevent leaks, spray, or fill problems caused by cracked, brittle, or clogged tubing.

• Directs water from the inlet valve into the unit's water system/tub
• Replaces tubing that is cracked, kinked, brittle, or mineral-clogged
• Helps resolve leaks near the inlet connection or water dripping during/after fill
• Improves fill performance when the original tube is restricted or collapsing

• Disconnect power and shut off the water supply before servicing
• Place a towel or pan to catch residual water when lines are opened
• Note the tube's routing/orientation; transfer any fittings or clamps and avoid kinks
• Restore water and power, run a test fill, and inspect carefully for leaks

This water tube directs supply water where needed inside the appliance to restore reliable water flow and help prevent leaks. Use this replacement when the existing tube is cracked, split, or restricting water to the ice maker or dispenser. What it does:

• Routes water from the appliance supply line to internal components (ice maker, dispenser) for proper filling and operation.
• Replaces cracked, pinholed, or kinked tubing that can cause leaks or reduced water flow.
• Helps resolve intermittent or no-water symptoms at the dispenser or ice maker when caused by damaged tubing.
• Durable replacement to restore sealed connections and reduce drips at the tube fittings.

• Disconnect power and shut off the water supply before beginning any work.
• Drain residual water from lines and have towels/containers ready to catch spills.
• Ensure fittings and seals are seated properly; hand-start fasteners, then snug—do not overtighten.

This retainer clip secures the appliance axle in place to keep rotating parts aligned and running smoothly. Replacing a worn or broken clip helps reduce noise, vibration and drivetrain misalignment for reliable operation. What it does:

• Holds the axle/shaft in position to prevent lateral movement and maintain alignment
• Prevents excessive play that can cause noise, vibration or uneven wear
• Helps keep connected components (drum/rotor/wheel) tracking correctly
• Commonly replaced when clipped, bent or missing after repair or wear

• Disconnect power before starting any repair
• Removal may require pliers or a small punch to release the old clip; reinstall by snapping into the axle groove
• Inspect mating shaft and housing for wear or damage before installing the new clip

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It regulates the flow of water into the refrigerator’s water dispenser and ice maker. This valve ensures that the correct amount of water is supplied to these components, enabling the production of ice and the dispensing of water on demand.

Over time, the water inlet valve can wear out due to mineral deposits, electrical malfunctions, or general wear and tear. These issues can lead to inadequate water flow, which can affect the performance of both the water dispenser and the ice maker, or cause leaks within the refrigerator.

Symptoms of a bad water inlet valve include:

• Water dispenser not working or having low flow
• Ice maker not producing ice
• Water leaks around the valve area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This water supply tube connects at the inlet water valve, routing water through your appliance's water system. Replacing a brittle, cracked, or kinked line helps restore reliable, leak-free operation and proper water flow. What it does:

• Carries water from the inlet valve to the designated component (such as dispenser, icemaker, or filter housing, depending on model)
• Helps maintain proper water pressure and uninterrupted flow
• Common symptoms include leaks at the back/bottom, slow or no water at the dispenser, or an icemaker not filling
• Addresses visible cracks, brittleness, or kinks in the existing tubing

• 1 water supply tube

• Disconnect power and shut off the household water supply; relieve line pressure by dispensing water
• Place a towel to catch residual water and note the original routing before removal
• For push-in/quick-connect fittings, insert fully and tug back to verify engagement; if using compression fittings, tighten snugly without overtightening
• Turn water on and check all connections for leaks before restoring power

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it
