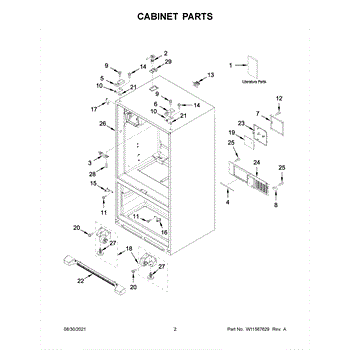

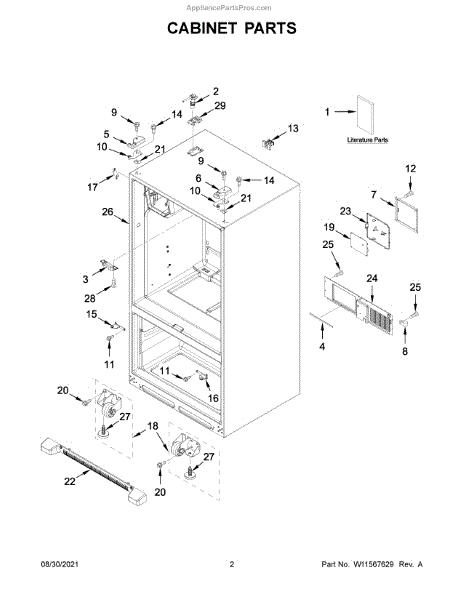

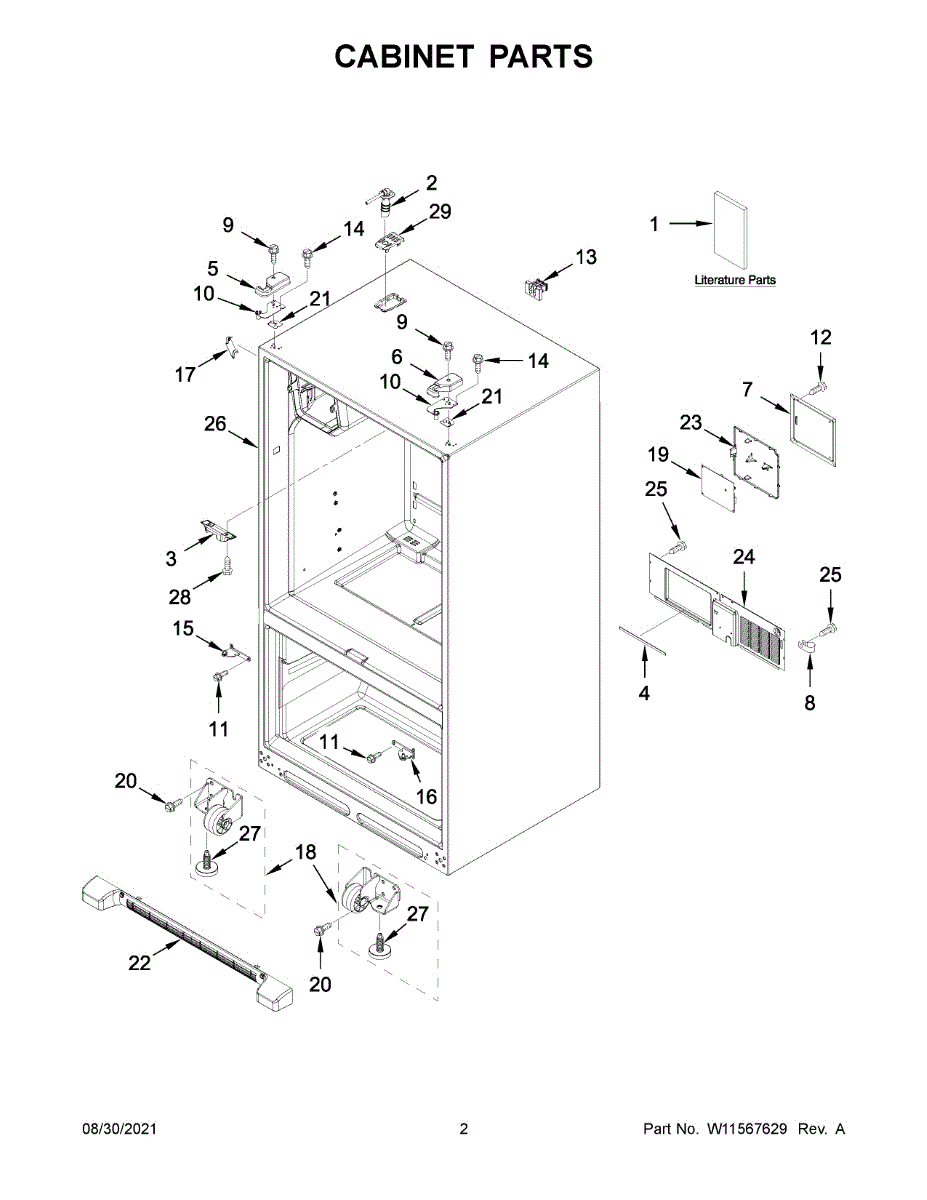

Parts for Maytag MFI2269FRB05: Cabinet Parts

This water tube routes water between internal components in your appliance to support proper filling and dispensing. Replacing a brittle, cracked, or kinked tube restores reliable flow and helps prevent leaks and water damage. What it does:

• Provides a sealed path for water from the valve to the component it serves
• Helps maintain correct flow by avoiding kinks and restrictions
• Over time, tubing can harden, crack, or deform from heat and age
• Common symptoms: visible leaks or puddling, slow/erratic flow, or no water to the function it serves

• 1 water tube

• Disconnect power and shut off the water supply before servicing
• Place a towel or pan to catch residual water and relieve line pressure
• Note the original routing and connection points; take a photo for reference
• Fully seat the tube in quick-connect/compression fittings and check for leaks after restoring water

This replacement cover protects and conceals the appliance's control board and related electronics, helping prevent debris intrusion and accidental contact. It restores the appliance's original internal protection and appearance. What it does

• Shields the control board and wiring from dust, lint, and small debris
• Helps prevent accidental contact with electrical components
• Maintains proper component placement and internal airflow paths
• Useful when repairing or replacing control assemblies or wiring

• One replacement cover

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove access panels as needed to access the control area; handle panels gently to avoid breaking tabs
• Align the cover with mounting points and secure with original fasteners; do not overtighten
• If you see damaged wiring or connectors, stop and address electrical damage before reassembling

This cover hinge assembly secures and guides the appliance lid or top panel so it opens and closes smoothly. Replacing a worn hinge restores proper lid alignment and helps eliminate sticking, sagging, or uneven closure. What it does:

• Provides a pivot point for the lid/top cover, holding it in the correct position during use
• Restores smooth opening and closing when original hinge is bent, worn, or broken
• Helps eliminate lid sag, misalignment, or rubbing against the cabinet
• Works with the appliance's existing bracketry and fasteners to maintain fit and function

• One cover hinge assembly

• Basic hand tools required; keep fasteners organized for reassembly
• Disconnect power and follow appliance-specific safety guidelines before beginning repair
• Inspect mating surfaces and replace any damaged screws or brackets for a secure fit

This door hinge secures and guides a refrigerator door, restoring smooth opening, closing, and proper door alignment. It's a direct-fit replacement designed to help stop door sag, rubbing, or gaps that let cold air escape. What it does:

• Supports the refrigerator door and keeps it aligned on the cabinet
• Allows the door to pivot smoothly when opening or closing
• Helps maintain a proper seal to preserve internal temperature
• Common symptom: door droops, rubs, binds, or won't stay closed

• One door hinge

• Installation requires basic hand tools; follow OEM instructions for correct alignment
• Keep door supported or use a second person while replacing hinges to prevent injury or damage
• Inspect mounting screws and hinge mating surfaces; replace any damaged fasteners

This door hinge is a direct-fit replacement part that restores proper door alignment and smooth opening/closing for compatible Whirlpool appliances. Replacing a worn or damaged hinge helps prevent door sag, gaps, and uneven sealing. What it does

• Supports and pivots the appliance door so it opens and closes smoothly
• Restores correct door alignment to ensure an even seal and temperature retention
• Stops door sagging or misalignment that can cause rubbing or uneven wear
• Reduces noise or binding during door movement when the hinge is worn

• Unplug the appliance or disconnect power before beginning any repairs.
• Support the door while removing or installing the hinge to prevent damage or injury.
• Keep original mounting hardware; use proper tools and basic mechanical skills.
• After installation, check door alignment and operation; adjust as needed for a tight, even seal.

This door hinge is the replacement pivot that supports and guides a refrigerator or freezer door, restoring smooth opening and secure alignment. It helps stop sagging doors and prevents binding for reliable everyday use. What it does:

• Provides a stable pivot point so the door opens and closes smoothly
• Restores proper door alignment to improve sealing and prevent drafts
• Reduces door sag and uneven gaps that can cause rubbing or airflow loss
• Replaces worn or damaged hinge hardware that can cause noisy operation

• One door hinge pivot as shown

• Disconnect power to the appliance before starting and remove food from door shelves if needed
• Support the door while removing the old hinge to avoid drops or damage
• Use the original fasteners unless replacements are specified; tighten to secure but avoid over-torquing

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This front grille covers the lower front of the refrigerator and helps guide airflow through the condenser area. Replace a cracked, loose, or missing grille to restore appearance and proper ventilation. What it does:

• Covers and protects the base area, giving the unit a finished look
• Helps channel air to the condenser for consistent ventilation
• Helps keep dust and debris from collecting under the appliance
• Common symptoms: cracked/broken grille, broken tabs, won't stay attached, missing piece

• 1 front grille

• Disconnect power before servicing
• Release retaining clips or remove any mounting screws per your model
• Align tabs and snap or fasten the new grille into place
• Reuse original screws/clips if applicable; secure attachment and clear airflow

This front base grille covers the lower toe area of the appliance, protecting internal components and channeling air through the condenser section. Replace a cracked or missing grille to restore a clean look and proper ventilation at the front. What it does:

• Covers the lower front area and helps direct airflow to the condenser
• Shields wiring and components from bumps, dust, and debris
• Helps reduce vibration noise when properly secured
• Common fix for a broken, warped, loose, or missing base grille

• 1 front base grille

• Disconnect power before servicing; turn off water supply if working near water lines
• Open doors as needed to access the grille fasteners
• Remove the old grille by releasing retaining clips or removing screws
• Align and secure the new grille using the existing mounting points; keep vents unobstructed

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming
