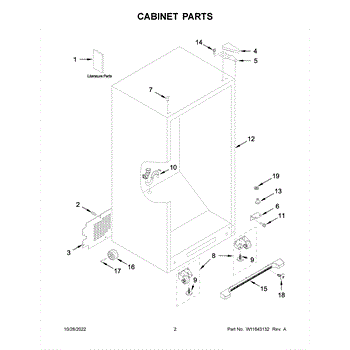

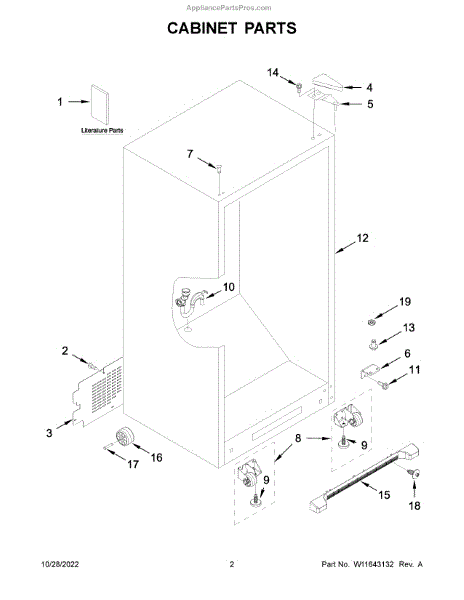

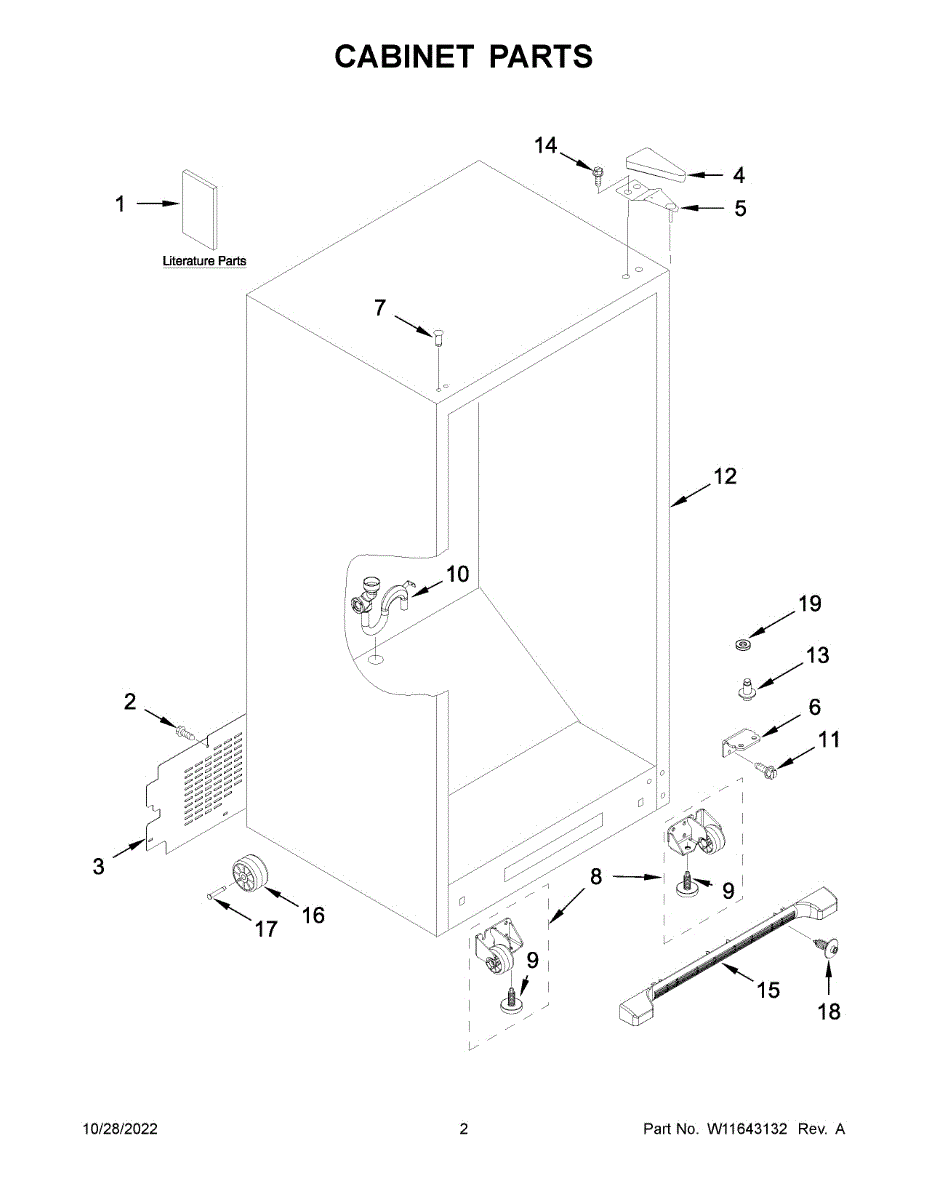

Parts for Maytag MZF34X20DW07: Cabinet Parts

The Drain Tube is an OEM part for Whirlpool-brand French door refrigerator water dispensers and ice makers. It channels excess water away during the icemaking process.

Causes of a bad drain tube can include mineral buildup clogging the narrow opening over time or cracks developing from rigid ice contact every cycle.

Symptoms of a bad drain tube include:

• Water failing to properly drain away from the ice maker
• Puddles or leaks appearing near the freezer floor
• Ice production deteriorating due to water backup
• Mineral scale deposits accumulating around connections

Replacing it with this OEM tube restores full water ejection to produce clean ice. Also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This front grille covers the lower front of the refrigerator and helps guide airflow through the condenser area. Replace a cracked, loose, or missing grille to restore appearance and proper ventilation. What it does:

• Covers and protects the base area, giving the unit a finished look
• Helps channel air to the condenser for consistent ventilation
• Helps keep dust and debris from collecting under the appliance
• Common symptoms: cracked/broken grille, broken tabs, won't stay attached, missing piece

• 1 front grille

• Disconnect power before servicing
• Release retaining clips or remove any mounting screws per your model
• Align tabs and snap or fasten the new grille into place
• Reuse original screws/clips if applicable; secure attachment and clear airflow
