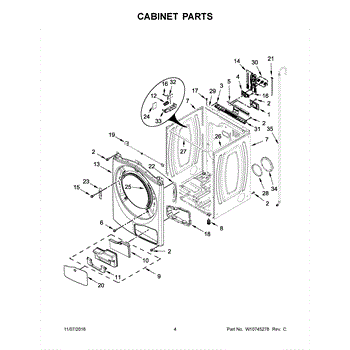

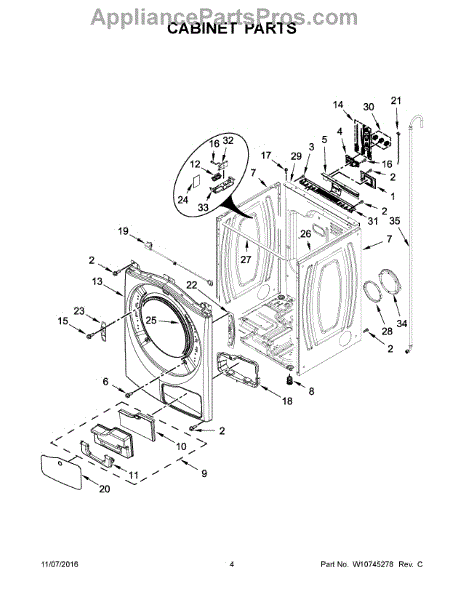

Parts for Whirlpool WED99HEDC0: 03 - Cabinet Parts

This terminal block cover protects the dryer/range terminal block and wiring by keeping connections enclosed and reducing risk of accidental contact or debris intrusion. It restores a finished, safe rear electrical access area. What it does:

• Covers and shields the appliance's electrical terminal block to help prevent accidental contact with live wires
• Helps keep dust, lint and small debris out of the terminal area
• Provides a mounting surface for the terminal block screw or clamp where applicable
• Common service symptom: missing, cracked or damaged cover exposes wiring or looks broken at the rear access

• One terminal block cover

• Disconnect all power at the breaker or unplug the appliance before servicing
• Intended to mount over the terminal block; secure with the factory screw(s) or fastener(s)
• Inspect wiring and terminal connections while the cover is off; replace frayed or damaged wires before reinstalling

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

Color: Chrome Shadow

Color: White

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This outer housing is the appliance's external cabinet panel that protects internal components and restores the unit's finished appearance. Replacing a damaged housing prevents exposure of wiring and improves structural support. What it does:

• Covers and protects internal components from dust, moisture, and impact
• Secures mounting points for controls, panels, and internal modules
• Stops rattling or vibration caused by bent or cracked cabinet sections
• Restores the appliance's exterior finish for a clean, factory look

• One outer housing

• Disconnect power and, if applicable, gas supply before starting
• Use proper fasteners and alignment when reinstalling to avoid stress on adjacent panels
• Watch for sharp edges; wear gloves and eye protection
• If clips or screws are damaged, replace them to ensure a secure fit

This Whirlpool Lint Screen is an OEM part for specific Whirlpool dryer models. This lint screen is essential for trapping lint and debris from clothes during the drying process, helping to prevent duct clogs and maintain efficient dryer operation.

Lint screens can become less effective or damaged over time due to lint build-up, wear, or accidental tearing. A compromised lint screen can lead to reduced dryer efficiency, longer drying times, and increased risk of lint-related safety hazards.

Symptoms of a bad lint screen include:

• Visible tears or holes in the lint screen.
• Excessive lint accumulation on clothes after drying.
• The dryer takes longer than usual to dry clothes.
• Reduced airflow in the dryer, is noticeable during operation.
• Increased lint build-up inside the dryer duct.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


This electronic control board replaces the console control that runs oven functions and the display, restoring timed bake, broil and user interface control. It's the main logic board for the range/oven control panel. What it does:

• Manages oven temperature setpoints, bake/broil cycles and timed functions
• Controls the front display, clock and touchpad/keypad inputs
• Enables signals to heating elements, ignitor and safety interlocks as directed
• Stops oven operation or shows a blank/unresponsive display when failed

• Disconnect power to the appliance before starting any repair
• Handle the board by its edges and avoid static discharge; wear an anti-static wrist strap if available
• Verify connector orientation and secure all wire harnesses and mounting screws during reassembly
• If the oven shows error codes after replacement, follow the appliance's service/testing procedure for control initialization or diagnostics

Includes screws and wire connectors. For the complete terminal block kit use 279320.

10 - 16 x 1/2

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This control bezel is the front trim piece that surrounds and protects the appliance's control console, restoring a clean, finished appearance and securing the control interface. Fits as the visible console trim around buttons and display. What it does:

• Replaces a cracked, scratched, or warped control bezel to restore a neat front appearance
• Keeps control buttons and the display area properly aligned and protected
• Helps prevent dirt and moisture from reaching the underlying control components
• Can reduce button sticking caused by distorted or loose trim

• One control bezel (console trim)

• Disconnect power to the appliance before beginning any work
• Removal typically requires loosening console screws or clips; handle trim and clips gently to avoid breakage
• Keep all fasteners and note their original locations for reassembly

This snap-action door switch senses whether the door is open or closed. Replacing a worn switch restores proper start/stop control and correct light/fan response tied to door operation, improving safety and reliability.

• Detects door position and signals the control or interrupts power as designed
• Helps prevent operation when the door is open
• Common fix for: won't start, stops when the door shifts, or "door ajar" messages
• Restores proper interior light or fan behavior linked to door status

• Disconnect power before servicing; for high-voltage appliances (e.g., microwaves), discharge capacitors
• Match terminal orientation to the original and transfer wires one at a time
• Install in the original bracket/orientation so the actuator aligns with the latch/striker
• Verify operation with a continuity test before reassembly

CHROME SHADOW

The Cover is an OEM part for Whirlpool dryers. This part secures the lint screen in place and ensures that lint, dust, and other debris are effectively captured before they can enter the dryer's vent system.

Common causes of a bad dryer cover include physical impact, heat-related warping, or degradation over time. A compromised cover can lead to exposure of internal components, potentially affecting the dryer’s performance and safety.

Symptoms of a bad Cover include:

• The lint screen does not stay securely in place.
• Increased lint accumulation within the dryer or vent system.
• The dryer takes longer to dry clothes, indicating airflow issues.
• Visible damage or warping of the cover, which can prevent it from fitting properly.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This strike is the latch receiver the door or lid engages when closed. Replacing a worn or broken strike restores a secure close and ensures the control correctly senses a closed door so cycles can run. What it does:

• Provides the fixed catch point for the latch mechanism
• Keeps the door/lid closed and properly aligned during operation
• Works with the interlock/switch to signal that the door/lid is closed
• Common symptoms: door won't latch or pops open, "door/lid open" message, cycle won't start, visible damage to the strike

• 1 strike

• Disconnect electrical power to the appliance; shut off water if applicable
• Open the door/lid and remove the original strike (typically secured by screws or retaining tabs)
• Position and secure the new strike, reusing original hardware; tighten snugly without over-tightening
• Close and open the door/lid to confirm smooth latch engagement and alignment; adjust if needed

The PAD is an OEM part crafted specifically for Whirlpool dryers. This pad plays a crucial role in the dryer's operation by providing support and cushioning for the dryer drum. Its precise design and compatibility ensure proper fitting and reduce noise during the drying cycles, contributing to smoother operation.

A worn-out or damaged dryer pad can lead to disruptions in the dryer's performance. Causes of a faulty pad might include wear over time, physical damage, or exposure to high heat, resulting in increased noise or imbalance during operation.

Symptoms of a bad PAD may include:

• Unusual or increased noise during dryer operation
• Visible signs of wear or deterioration on the pad
• Drum imbalance or wobbling during use

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

The Terminal Block Screw Kit is an OEM replacement part for Whirlpool dryers. It is an assembly of screws used to securely fasten electrical terminal blocks within the dryer's control panel. Includes 3 screws and 3 nuts. Screw kit for dryer cord connector.

Over time, terminal block screws can become loose, corroded, or damaged due to regular use or electrical issues. If the terminal block screws are compromised, it can lead to electrical problems or even pose a safety hazard.

Symptoms of a faulty terminal block screw kit include:

• Intermittent power or failure of heating/fan elements to engage
• Repeated blowing of internal fuses or tripping of circuit breakers
• Hot terminal connections detected during operation
• Arc flashes, sparks, or smoke seen around the control panel area

This genuine Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This rear bracket secures the dryer's rear panel and helps align internal components for stable operation. It restores proper fit and support when the original bracket is bent, broken, or missing. What it does:

• Secures and positions the dryer's rear panel to the cabinet frame
• Supports internal components and helps maintain proper panel alignment
• Prevents rattling, vibration, and panel separation during operation
• Helps ensure consistent airflow path by keeping the rear housing properly positioned

• Disconnect power (and gas, if applicable) before servicing the dryer
• Access typically requires removing the rear panel; keep fasteners organized for reassembly
• Inspect adjacent mounting points and replace any damaged screws or clips

This electronic control board manages the appliance's user interface and cycle functions, restoring reliable command and timing for the machine. It replaces a failed console board to help return normal control operation. What it does

• Receives input from buttons/knobs and runs the selected cycles and features
• Controls timing, cycle sequencing and on/off functions
• Can cause unresponsive controls, blank or error displays, or erratic cycles when faulty
• Works with other control components; symptoms often mimic wiring or sensor issues

• Disconnect power (unplug or shut off breaker) before starting any work
• Handle the board by edges and avoid static discharge; wear an ESD strap if available

This mounting bracket secures internal components to the appliance cabinet, keeping parts aligned and stable for reliable operation. It's a simple replacement that restores proper support where the original bracket is bent, cracked, or missing. What it does:

• Provides a solid attachment point for internal panels, assemblies or hardware
• Restores alignment to components that shift or sag when a bracket fails
• Helps eliminate rattling or abnormal movement caused by a broken bracket
• Works as a direct-fit replacement when the original bracket is damaged

• One mounting bracket

• Intended for users comfortable with basic disassembly; unplug power and shut off water before starting
• Keep track of removed fasteners and any shims or spacers for proper reassembly
• Inspect surrounding parts for damage and replace any worn fasteners to ensure secure mounting

This replacement flexible hose restores proper fluid flow and helps stop leaks in compatible Whirlpool appliances. OEM-design ensures correct fit where the original hose connects internal components, preventing water damage and operational issues. What it does:

• Routes water or wastewater between appliance components (pump, tub or valve connections) to maintain normal operation.
• Stops leaks caused by cracked, split or hardened hose sections.
• Helps restore proper draining and prevents pooling water under or around the appliance.
• Works with factory-style clamps and fittings for a secure seal.

• Disconnect power to the appliance and shut off the water supply before starting any work.
• Remove clamps or fasteners at both ends, replace hose, then re-secure with new or existing clamps rated for the application.
• Route the hose free of kinks, pinch points and heat sources to prevent premature failure.
• Test for leaks after restoring power and water.
