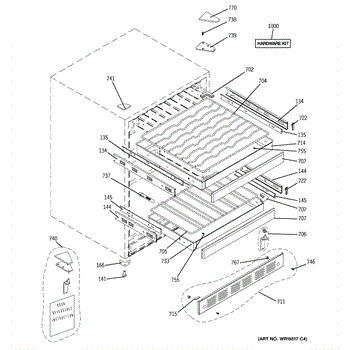

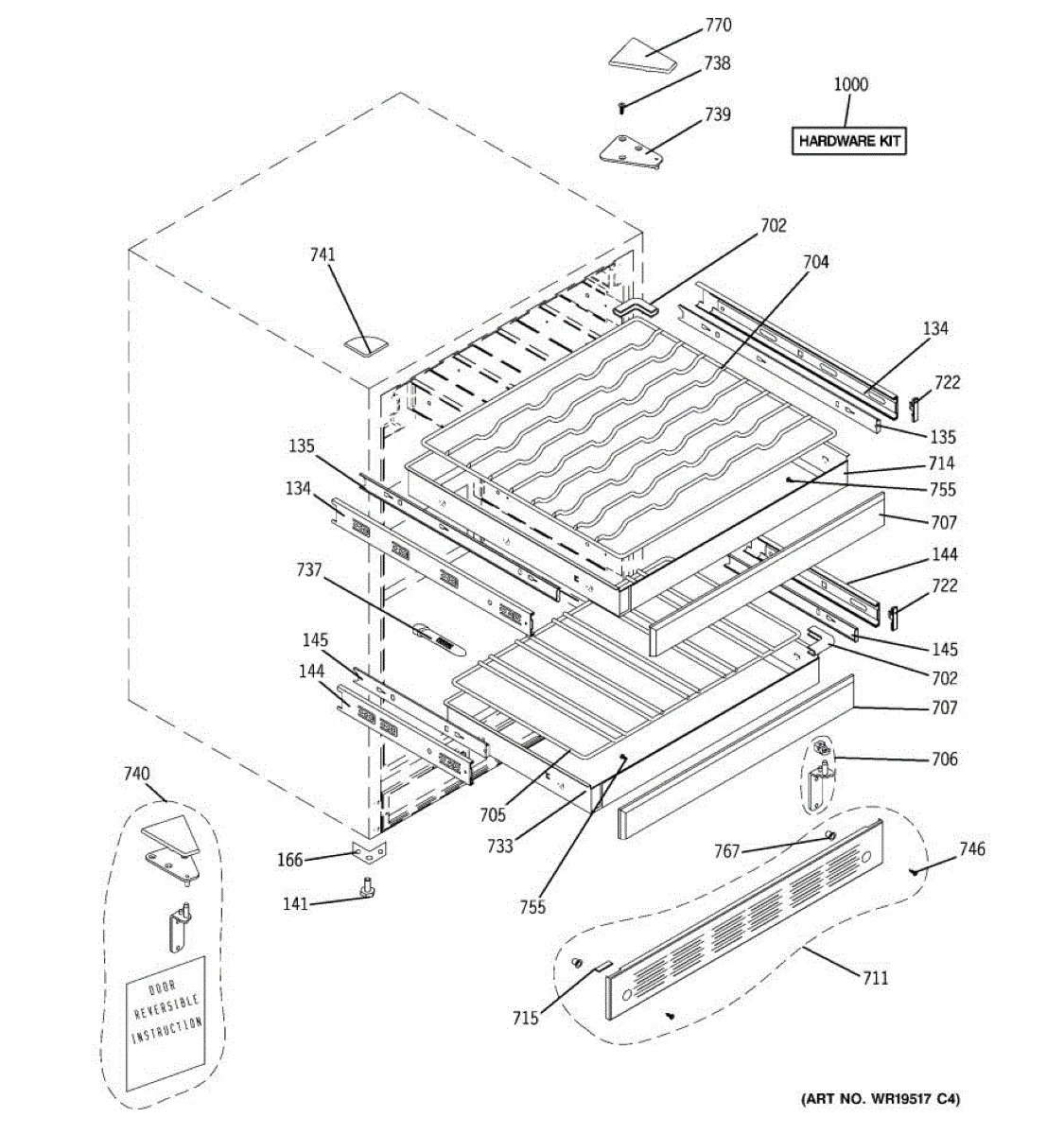

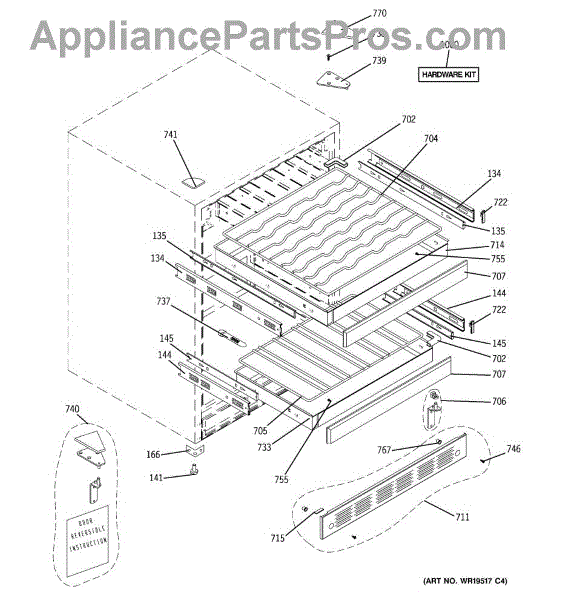

Parts for Ge ZDWR240PCBS: 02 - Cabinet & Shelves Parts

This inner-liner guide is a replacement plastic support that helps position and secure the refrigerator's interior liner components for smooth operation and proper fit. It restores alignment and stabilizes shelves or drawers that sit on the liner. What it does

• Supports and aligns the inner cabinet liner where shelves, drawers or trim attach
• Prevents liner movement or gaps that can cause rattling or misaligned shelves
• Restores proper engagement so drawers and shelves slide and sit correctly
• Helps maintain a sealed, stable interior cabinet surface

• One inner-liner guide

• Disconnect power to the appliance before starting any repair
• Remove shelves, drawers or trim pieces that block access to the damaged guide
• Snap or screw the replacement guide into the liner; use the same fasteners and locations as the original
• Inspect surrounding plastic for additional damage and replace other guides if needed for even support

This frame guide repositions and supports the refrigerator cabinet trim so doors and panels align correctly, helping ensure smooth door operation and a finished appearance. Designed to replace a worn or damaged cabinet frame guide. What it does:

• Guides and supports the cabinet trim and door edge to maintain proper alignment
• Helps reduce rubbing, scraping, or misalignment when opening or closing doors
• Restores the finished look of the cabinet edge where the original guide is damaged or missing
• Fits where the cabinet/frame guide has chipped, cracked, or worn over time

• Frame guide (1)

• Basic installation typically requires removing the door or trim panel; inspect surrounding clips and fasteners for damage
• Use appropriate hand tools and avoid forcing parts; align the guide before fully tightening fasteners
• Disconnect power only if removal requires working near electrical components or lights

This short frame guide helps support and guide the refrigerator drawer or bin for smooth opening and stable operation. It replaces a worn or broken guide to restore proper alignment and reduce drawer sticking or wobble. What it does:

• Guides and supports the drawer/bin along its track for consistent movement
• Helps prevent drawer misalignment, binding, and uneven wear
• Restores secure seating and reduces rattling or shifting during use
• Works as the short/secondary guide where appliances use paired guides

• Disconnect power to the appliance before servicing to avoid shock or injury
• Typical installation requires removing the drawer/bin and fastening the guide with original screws or clips
• Retain and reuse any original hardware unless replacement is explicitly supplied

This hinge and cam riser assembly replaces the upper hinge support that helps properly position and pivot the refrigerator door for smooth opening and a correct seal. It restores door alignment and stable hinge operation. What it does:

• Supports the top door hinge and provides the cam surface the hinge pin rides on
• Restores proper door alignment and helps prevent door sag or uneven gaps
• Reduces rubbing, binding, or noisy hinge movement caused by a worn riser
• Helps the door close fully so the gasket can seal properly

• One hinge and cam riser assembly

• Disconnect power or follow appliance safety guidance; support or brace the door before removing the hinge
• Loosen and remove top hinge fasteners to replace the riser; keep hardware for reinstallation
• Verify correct orientation and alignment before fully tightening fasteners; do not overtighten

This front guide helps align and support a refrigerator drawer, restoring smooth opening and stable positioning. It replaces a worn or damaged guide to reduce sticking, slipping, or drawer misalignment for reliable daily use. What it does:

• Holds the front edge of the drawer in place and keeps the drawer track aligned
• Guides the drawer during opening and closing for smoother travel
• Prevents the drawer from binding, catching, or falling out of the track
• Helps reduce noise and uneven operation caused by a damaged guide

• Disconnect power to the appliance before beginning any service
• Remove the drawer and existing guide per the appliance service instructions
• Install the new guide in the same orientation; secure with the original fasteners or clips
• Test drawer movement after installation; do not force components or overtighten fasteners

This right-side upper door hinge secures the refrigerator door at the top and helps it swing smoothly while keeping alignment. A direct-fit hinge designed to restore proper door operation and prevent sagging or gaps that let cold air escape. What it does:

• Provides a durable pivot point for the refrigerator door to open and close reliably
• Restores correct door alignment to prevent rubbing, uneven sealing, or floor contact
• Helps maintain a tight door seal to preserve internal temperature and efficiency
• Replaces worn or damaged hinge that causes door sag, binding, or noisy operation

• One upper hinge, right side

• Disconnect power and empty door contents before starting
• Retain original mounting hardware if undamaged; replace hardware only if explicitly supplied
• Support the door while removing/installing the hinge to prevent injury or damage
• Check door alignment and seal after installation; adjust per manufacturer instructions

This reverse door hinge kit lets you change the swing direction of a compatible refrigerator door, restoring proper alignment and sealing after a hinge-side change. It's a direct replacement designed for straightforward door reversal. What it does:

• Reverses the door swing so the door opens from the opposite side
• Restores proper door alignment and helps seal the gasket for consistent cooling
• Replaces worn or bent hinge components that cause sagging or sticking
• Useful when relocating the refrigerator or changing kitchen layout

• Disconnect power and remove food from door area before starting
• Follow the refrigerator's service manual for hinge removal and reinstallation steps
• Use appropriate tools and support the door while removing/installing hinges to avoid injury or damage
• If screws or trim pieces are missing from the kit, verify kit contents against the appliance parts list before installation

This hinge fill plug covers and seals the fridge/freezer door hinge opening to keep the hinge area tidy and reduce dirt and moisture entry. It restores the finished look and helps protect hinge hardware from debris. What it does:

• Covers the hinge opening or bolt for a clean appearance
• Helps keep dirt, dust and moisture out of the hinge cavity
• Protects hinge hardware from contamination that can affect movement
• Useful when a factory hinge cap is missing or damaged

• Typically snaps or presses into place; minimal tooling required.
• Support the door if removing hinge hardware; follow the appliance manufacturer's safety instructions.
• Disconnect power before working on electrical components nearby.
• If the old plug is brittle or stuck, gently pry with a plastic tool to avoid cosmetic damage.
