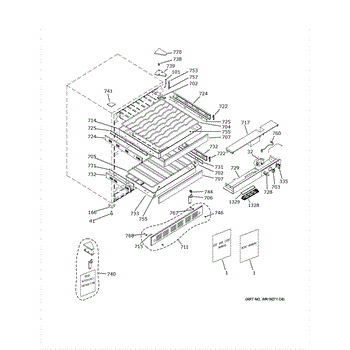

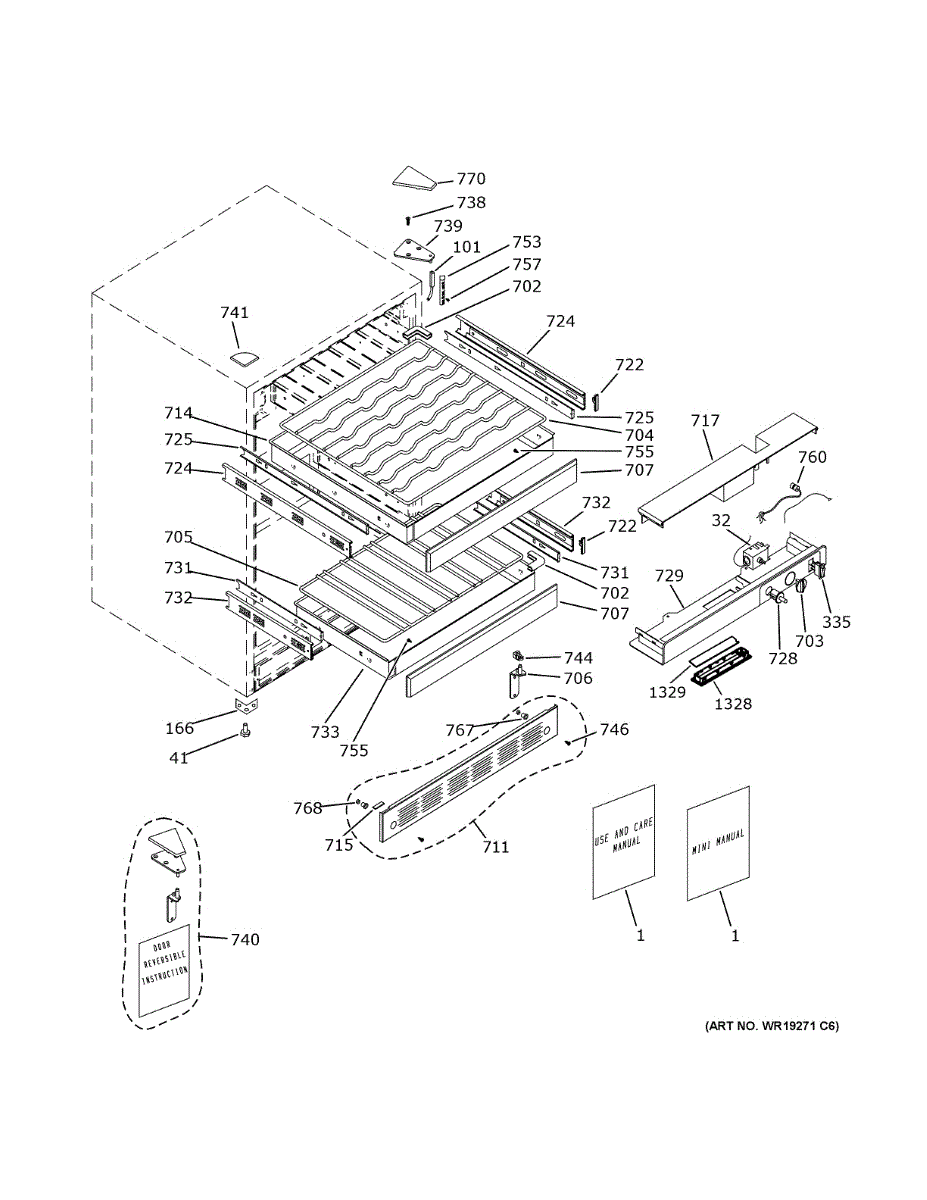

Parts for Ge PCR06WATFSS: Cabinet & Shelves Parts

This temperature sensor (thermistor) senses cabinet/evaporator temperature so the control can maintain proper cooling. Replaces a failed sensor to help restore accurate temperature readings and stable refrigerator operation. What it does:

• Measures internal temperature and sends readings to the control board
• Helps control compressor and fan cycling for consistent cooling
• Commonly associated with refrigerators that run continuously, cool inconsistently, or show incorrect temperature
• Can affect defrost cycles if the evaporator reading is incorrect

• Disconnect power before accessing components to avoid electrical shock
• Handle the sensor and lead carefully; avoid kinking or sharp bends in the wire
• Ensure the connector is fully seated and any mounting clip is snug but not overtightened
• Some models require removing interior panels or the evaporator cover for access

This hinge and cam riser assembly replaces the upper hinge support that helps properly position and pivot the refrigerator door for smooth opening and a correct seal. It restores door alignment and stable hinge operation. What it does:

• Supports the top door hinge and provides the cam surface the hinge pin rides on
• Restores proper door alignment and helps prevent door sag or uneven gaps
• Reduces rubbing, binding, or noisy hinge movement caused by a worn riser
• Helps the door close fully so the gasket can seal properly

• One hinge and cam riser assembly

• Disconnect power or follow appliance safety guidance; support or brace the door before removing the hinge
• Loosen and remove top hinge fasteners to replace the riser; keep hardware for reinstallation
• Verify correct orientation and alignment before fully tightening fasteners; do not overtighten

This front guide helps align and support a refrigerator drawer, restoring smooth opening and stable positioning. It replaces a worn or damaged guide to reduce sticking, slipping, or drawer misalignment for reliable daily use. What it does:

• Holds the front edge of the drawer in place and keeps the drawer track aligned
• Guides the drawer during opening and closing for smoother travel
• Prevents the drawer from binding, catching, or falling out of the track
• Helps reduce noise and uneven operation caused by a damaged guide

• Disconnect power to the appliance before beginning any service
• Remove the drawer and existing guide per the appliance service instructions
• Install the new guide in the same orientation; secure with the original fasteners or clips
• Test drawer movement after installation; do not force components or overtighten fasteners

This inner-liner guide is a replacement plastic support that helps position and secure the refrigerator's interior liner components for smooth operation and proper fit. It restores alignment and stabilizes shelves or drawers that sit on the liner. What it does

• Supports and aligns the inner cabinet liner where shelves, drawers or trim attach
• Prevents liner movement or gaps that can cause rattling or misaligned shelves
• Restores proper engagement so drawers and shelves slide and sit correctly
• Helps maintain a sealed, stable interior cabinet surface

• One inner-liner guide

• Disconnect power to the appliance before starting any repair
• Remove shelves, drawers or trim pieces that block access to the damaged guide
• Snap or screw the replacement guide into the liner; use the same fasteners and locations as the original
• Inspect surrounding plastic for additional damage and replace other guides if needed for even support

This frame guide repositions and supports the refrigerator cabinet trim so doors and panels align correctly, helping ensure smooth door operation and a finished appearance. Designed to replace a worn or damaged cabinet frame guide. What it does:

• Guides and supports the cabinet trim and door edge to maintain proper alignment
• Helps reduce rubbing, scraping, or misalignment when opening or closing doors
• Restores the finished look of the cabinet edge where the original guide is damaged or missing
• Fits where the cabinet/frame guide has chipped, cracked, or worn over time

• Frame guide (1)

• Basic installation typically requires removing the door or trim panel; inspect surrounding clips and fasteners for damage
• Use appropriate hand tools and avoid forcing parts; align the guide before fully tightening fasteners
• Disconnect power only if removal requires working near electrical components or lights

This short frame guide helps support and guide the refrigerator drawer or bin for smooth opening and stable operation. It replaces a worn or broken guide to restore proper alignment and reduce drawer sticking or wobble. What it does:

• Guides and supports the drawer/bin along its track for consistent movement
• Helps prevent drawer misalignment, binding, and uneven wear
• Restores secure seating and reduces rattling or shifting during use
• Works as the short/secondary guide where appliances use paired guides

• Disconnect power to the appliance before servicing to avoid shock or injury
• Typical installation requires removing the drawer/bin and fastening the guide with original screws or clips
• Retain and reuse any original hardware unless replacement is explicitly supplied

This replacement hinge cover snaps over the refrigerator door hinge to restore the cabinet's finished appearance and help protect the hinge from dust and debris. Simple cosmetic repair for a cracked, missing or broken hinge cover. What it does

• Covers and protects the door hinge from dirt and moisture.
• Hides exposed hardware for a clean, factory appearance.
• Helps prevent clothing or fingers from catching on the hinge.
• Commonly replaced when the cover is cracked, broken, or missing.

• Unplug the appliance or disconnect power before installing for safety.
• Remove any obstructing trim or move the door if required.
• Snaps or screws into place depending on model; use basic hand tools.
• Inspect hinge alignment and door operation after installation.

A single replacement frame screw that secures the appliance's front frame or trim so panels stay aligned and stable. Use this OEM-style screw to replace a missing or damaged fastener and restore a snug, rattle-free fit. What it does:

• Secures the front frame or trim to the appliance cabinet to maintain proper panel alignment
• Stops loose or vibrating trim that can cause noise or visible gaps
• Replaces stripped, corroded, or missing screws that prevent panels from seating correctly
• Small hardware solution for restoring proper fit and finish after repairs

• Turn off and unplug the appliance (or shut off power at the breaker) before accessing panels
• Use the correct driver bit and hold the trim firmly to avoid stripping the head
• Do not overtighten; snug the screw until the panel is flush without distorting the trim
• If existing holes or threads are damaged, inspect for necessary thread repair or replacement parts

This LED board provides the display/backlight lighting for the appliance control area, restoring proper illumination and visible status indicators. It replaces a failed or dim display board to make the control panel readable again. What it does:

• Powers and drives the LED light segments used for the control/display backlight
• Restores dim, flickering or dark control panel illumination
• Helps ensure display indicators and touch/press areas are visible
• Works with the appliance's control assembly to provide status feedback via lights

• One LED board as shown

• Disconnect power before servicing to avoid shock—unplug or switch off breaker
• Handle the board by edges; avoid static discharge and contact with components
• Remove control housing or console trim to access the board; follow OEM disassembly steps
