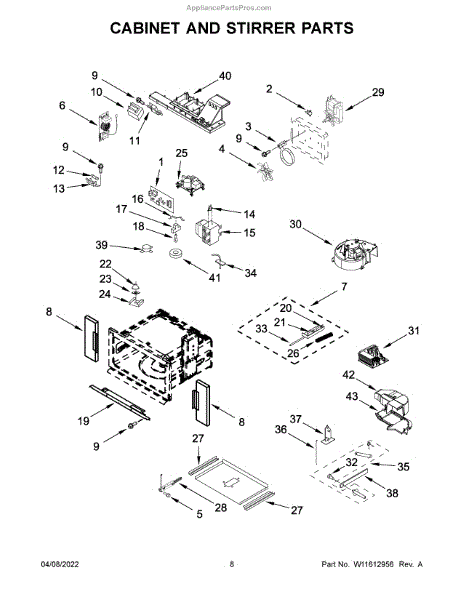

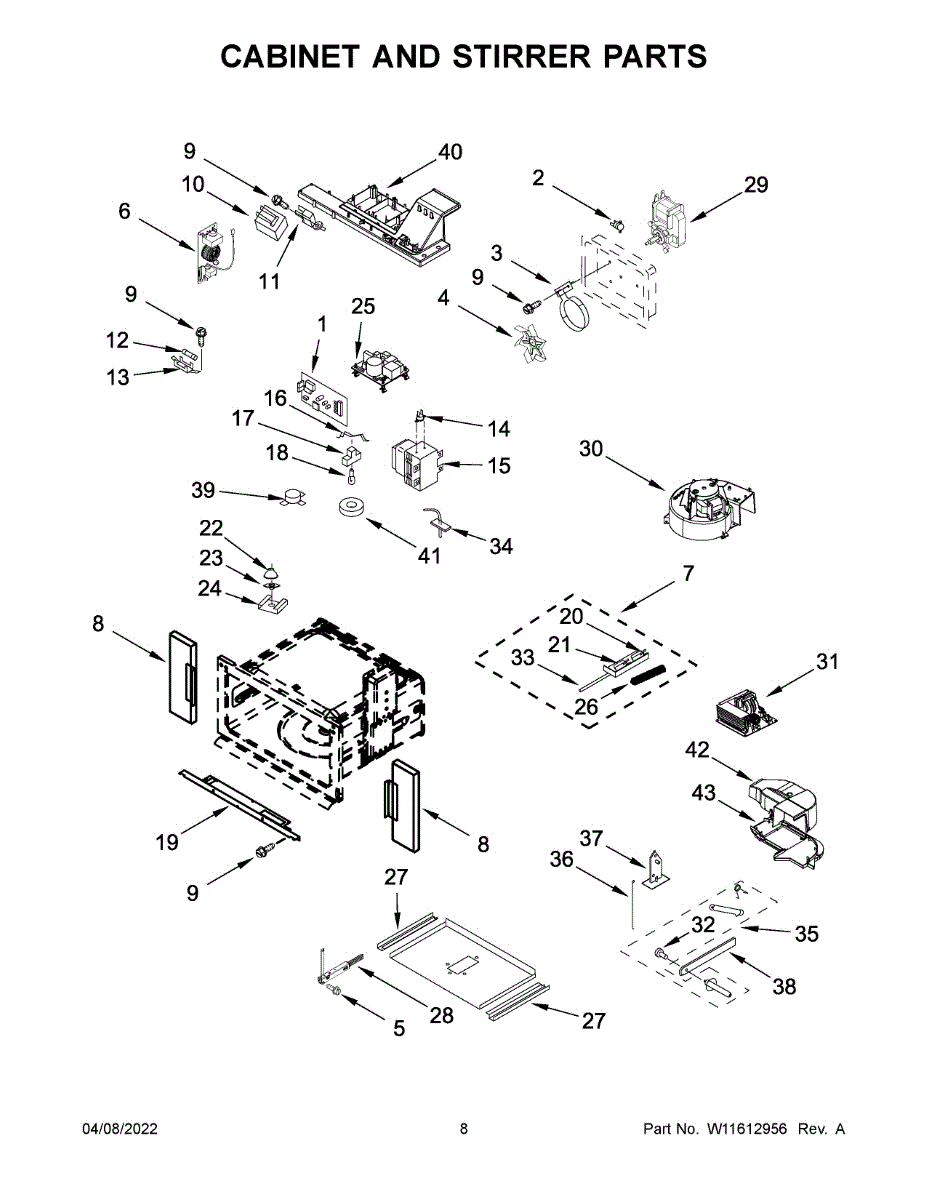

Parts for Kitchenaid KMBP100ESS20: Cabinet And Stirrer Parts

Microwave not heating, buttons unresponsive, or display blank? This control board regulates all functions including power levels and timing. Moderate difficulty repair.

Oven won't heat or shuts off unexpectedly? A faulty thermal fuse is often the cause. This safety part prevents overheating. Moderate DIY repair.

Replace a microwave heater element when convection cooking isn't working or food isn't browning properly. Moderate skill repair in 30-45 minutes.

Decorative trim frame for built-in microwave installations. Covers gaps between unit and cabinetry. Replace if cracked, discolored, or missing.

Control panel not responding or display flickering? This transformer supplies low-voltage power to your microwave's control board, restoring reliable operation.

Microwave won't start or shuts off unexpectedly? This door latch switch ensures proper door closure detection. Moderate DIY repair, 30-45 minutes.

Microwave won't turn on or has no power? This fuse protects circuits from power surges. Simple replacement restores operation in about 30 minutes.

Microwave won't heat or has no power? A damaged fuse block can prevent electrical flow. This holder secures the fuse to restore safe operation.

Microwave won't heat or shuts off after 10 seconds? This temperature sensor monitors the magnetron and prevents overheating. Simple DIY replacement.

Counterbalance spring for microwave drop-down doors. Assists with smooth opening and closing. Replace if broken, snapped, or door feels heavy to operate.

Secures and powers the G4-base bulb for reliable interior lighting. Replace if bulb flickers, won't stay seated, or socket is damaged. Confirm fit.

Halogen light bulb illuminates your microwave or oven cavity. Replace when light dims or burns out after extended use. Confirm fit with model number.

Decorative trim piece that frames the microwave door opening. Replaces damaged, cracked, or discolored trim to restore your appliance's appearance.

Microwave won't start or shows door error? This door switch signals when the door is closed so power flows to the magnetron. Moderate DIY repair, 30-45 min.

Microwave light reflector directs bulb illumination inside cooking cavity. Replace if cracked, discolored, or missing to restore proper lighting. Confirm fit with your model number.

Replaces cracked or missing microwave interior light lens and bulb. Restores clear illumination and protects bulb from food debris. Verify fit with model.

Fix F2E1 error codes or intermittent power issues with this microwave power supply board. Restores proper voltage to controls. Moderate difficulty.

Replace your broken or worn microwave door latch spring. This small metal spring ensures proper door closure and latch engagement on built-in models.

Mounting bracket that secures internal microwave components. Replace if your original bracket is cracked, broken, or missing to restore proper alignment.

If your microwave overheats or ventilation has stopped working, the fan motor likely needs replacement. Circulates air to regulate temperature.

Dishes coming out spotted or dirty? A worn lower spray arm reduces water coverage. This replacement part restores even cleaning. Moderate DIY repair.

Microwave door won't open when you press the button? This release rod connects the button to the latch mechanism, restoring smooth door operation.

Fix inaccurate oven temperatures or temperature error codes with this oven temperature sensor. Monitors cavity heat for precise baking and broiling control.

Dishes coming out spotted or dirty? A worn lower spray arm reduces water coverage. This replacement part restores even cleaning. Moderate DIY repair.

Replacement tension spring for microwave doors. Installs on drop-down door hinge mechanism. Needed when original spring is broken, popped, or missing.

Replacement mounting bracket that secures internal microwave components. Restores proper alignment and stability. Ideal when original is cracked or broken.

Fix inaccurate oven temperatures or won't heat issues with this oven cavity temperature sensor. Restores precise temperature control for reliable baking.

This seal-foam piece provides a cushioned, insulating barrier between cabinet or door panels to help reduce air leaks and vibration. It restores proper contact where foam sealing is required for consistent temperature control and quieter operation. What it does

• Fills gaps and cushions panel edges to improve thermal insulation and reduce drafts.
• Helps prevent moisture intrusion that can cause condensation or frost buildup.
• Dampens vibration and reduces rattling between panels or trim pieces.
• Supports proper door/panel alignment so seals and gaskets seat correctly.

• One seal-foam piece as shown

• Intended for replacement where existing foam is damaged, compressed, or missing.
• Clean mating surfaces and remove old adhesive or residue before installing for best adhesion.
• May require adhesive or clips depending on application—verify mounting method on your appliance.
• Disconnect power and follow appliance manufacturer's safety instructions before servicing.
