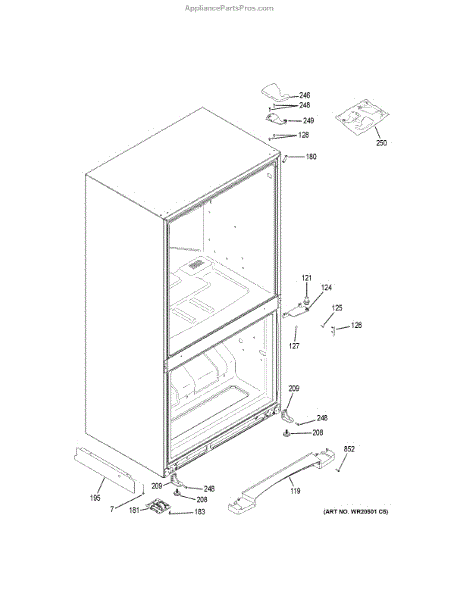

Parts for Ge GDE23ETEBRWW: Case Parts

8-18 CA HX 1/2 S

This Hinge and Pin Stop Assembly secures a refrigerator door hinge pin and helps the door stay aligned for smooth opening and closing. It restores proper door movement and reduces sagging or uneven gaps. What it does:

• Replaces a worn or damaged hinge pin stop that can allow door sag or misalignment
• Keeps the hinge pin seated to prevent excessive rotation or catching during operation
• Reduces noise or sticking caused by a loose or broken hinge stop
• Helps the door form a proper seal by maintaining correct hinge position

• One hinge and pin stop assembly

• Unplug the appliance or disconnect power before beginning work
• Support the door before removing hinge fasteners to prevent dropping or damage
• Use basic hand tools; fasteners are tightened securely after installation
• Consider replacing matching hinge parts for optimal alignment

This 10-32 x 1/2 machine screw secures appliance components where a standard 10-32 fastener is required. It restores proper mounting and reduces vibration or loose panels for reliable, quiet operation. What it does:

• Secures panels, brackets, or components that use a 10-32 threaded hole
• Prevents rattling, misalignment, and intermittent contact caused by loose fasteners
• Maintains electrical or mechanical connections when used as the OEM-specified screw
• Helps restore fit and finish after repair or disassembly

• Use the correct 10-32 driver (Phillips or slotted depending on head) and hand-start the screw to avoid cross-threading
• Tighten until snug; avoid over-tightening to prevent stripping threads or cracking plastic parts
• Replace only with the same size and thread spec to ensure proper fit
• Disconnect power if working near energized components or wiring

This leveling screw threads into the refrigerator's leveling leg or adjuster bracket to raise or lower the cabinet. Replacing a stripped or missing screw restores stable footing and helps keep doors aligned for proper sealing.

• Provides threaded height adjustment of the leveling leg/roller bracket
• Helps stop rocking or wobbling that can cause vibration and rattling
• Aids in door alignment so doors close and seal properly
• Replace if threads are stripped, screw is bent, seized, or missing

• Disconnect power and turn off the water supply before servicing
• Protect flooring; with assistance, carefully tip the appliance slightly to relieve weight from the adjuster
• Remove the damaged screw; hand-start the new screw to avoid cross-threading, then adjust until level
• Verify the cabinet is stable and doors operate correctly before restoring power

This upper hinge cover protects and finishes the refrigerator door hinge area for a clean appearance and helps keep hinge components free of debris. It restores the original look and helps maintain proper door operation. What it does:

• Covers the top door hinge to protect the hinge and mounting hardware from dirt and accidental contact
• Helps maintain a finished, OEM appearance at the top of the door
• Supports proper door alignment by securing the hinge area visually and mechanically
• Common symptom: broken, cracked, or missing hinge cover that exposes hinge hardware or looks unsightly

• Disconnect power to the appliance before performing service and work with the door supported to avoid injury
• Typically installs with basic hand tools; remove or slightly lift the door per the service manual if required
• Align cover over the upper hinge and secure per OEM instructions; do not force parts into place
• If hinge hardware is damaged or worn, replace the hinge or related hardware per OEM guidance

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head

This manufacturer-specified screw fastens appliance panels, brackets, and internal components in place. Replace a missing or stripped fastener to restore a tight, rattle-free fit and reliable support at the original mounting points.

• Provides the correct fastener for securing covers, brackets, and assemblies
• Replaces lost, rusted, or damaged screws
• Helps resolve loose or vibrating panels and trim
• Maintains alignment of components and hardware

• Unplug the appliance; shut off water if working near supply lines
• Match the new screw to the original location; verify length and thread
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Keep removed hardware organized for reassembly
