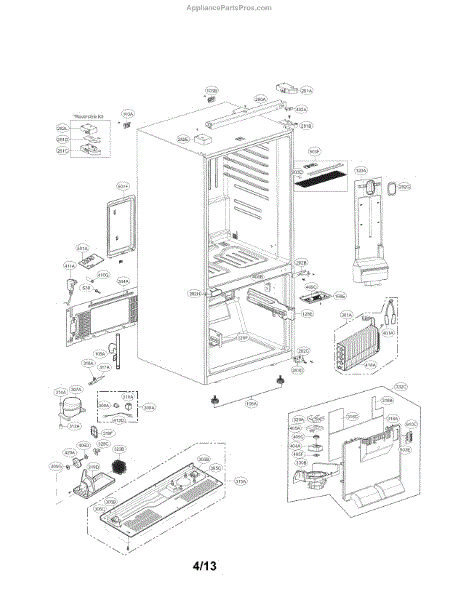

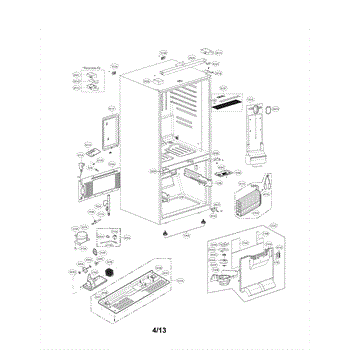

Parts for Kenmore 795.78024310 (79578024310, 795 78024310): Case Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

The Drain Tube Assembly is an OEM part for LG refrigerators. This drain tube assembly is responsible for directing condensation and melt water that accumulates in the refrigerator away to the evaporator pan.

Causes can include cracks developing from limescale or mineral accumulation, flexing fatigue from repeatedly catching drips, or damage from improper cleaning methods.

Symptoms of a bad drain tube assembly include:

• Puddles or leaks developing underneath the refrigerator
• Poor air flow from vents and higher temperatures
• Ice or moisture buildup in refrigerator walls and seals
• Water stains or corrosion appearing inside the unit

This OEM LG part is also compatible with some Kenmore models.

Note: Top LEFT Hinge

Note: Top RIGHT hinge

This drum support roller helps the dryer drum rotate smoothly and quietly by supporting the drum shaft and reducing friction. Replacing a worn roller restores proper drum movement and reduces noise. What it does:

• Supports the dryer drum shaft so the drum turns evenly during operation
• Prevents metal-on-metal contact that causes squealing, grinding or scraping noises
• Helps maintain correct drum alignment to avoid rubbing or uneven wear
• Works with the dryer's axle and bearing system to enable smooth rotation

• One roller

• Disconnect power and move the dryer to a safe, well-lit work area before starting
• Access requires removing the dryer front or rear panel depending on model
• Inspect the drum shaft, bearing, and idler components and replace any worn parts at the same time
• Wear eye protection and gloves; test the dryer empty after installation to confirm quiet, smooth operation

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

The Compressor Overload Protector is an OEM part for LG refrigerators. This critical component safeguards the compressor, which is the heart of the refrigeration system, from potential damage caused by excessive current draw or overheating.

Symptoms of a faulty compressor overload protector:

• Refrigerator not cooling properly or not running at all
• Compressor failing to start or repeatedly cycling on and off
• Buzzing or humming noises from the compressor area

Causes of a bad compressor overload protector can include electrical surges, wiring issues, or simply wear and tear over an extended period.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This guide assembly directs and stabilizes the refrigerator/freezer fan to ensure consistent airflow across the evaporator and cooling components. Replacing a damaged guide restores proper air circulation and helps reduce noise from an unsteady fan. What it does

• Holds and centers the fan blade to maintain efficient airflow through the evaporator coil
• Prevents fan wobble or contact with housing that can cause noise or mechanical wear
• Helps ensure even cooling and can reduce frost build-up caused by disrupted airflow
• Supports proper airflow that contributes to consistent temperatures in the cooling compartment

• One guide assembly

• Disconnect power before beginning any repair and follow the appliance manufacturer's safety instructions
• Access may require removing interior panels or the evaporator/fan housing; retain fasteners for reassembly
• Inspect adjacent components while replacing the guide to ensure full repair
• Use only compatible parts and avoid forcing plastic tabs; if clips or screws are damaged, replace them

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

The Defrost Sensor Assembly is an OEM part for LG refrigerators. It plays a critical role in the defrost system by monitoring the temperature of the evaporator coil to ensure that it remains at the optimal temperature to prevent frost buildup. The sensor sends signals to the control board, triggering the defrost cycle when necessary.

Over time, the defrost sensor assembly can fail due to wear and tear, electrical issues, or exposure to moisture and temperature fluctuations. When the defrost sensor malfunctions, it can cause improper defrost cycles, leading to excessive frost buildup, reduced cooling efficiency, or the refrigerator not defrosting at all.

Symptoms of a bad defrost sensor assembly include:

• Excessive frost buildup on the evaporator coils
• Refrigerator or freezer not maintaining the correct temperature
• Increased energy consumption
• Refrigerator not defrosting properly

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

The Temperature Sensor is an OEM part for LG refrigerators. It monitors the internal temperature and sends this information to the control board, ensuring that the refrigerator maintains the correct temperature for optimal food preservation.

Over time, temperature sensors can fail due to electrical issues, exposure to moisture, or wear and tear from continuous use.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• The refrigerator or freezer being too warm or too cold
• The refrigerator running constantly or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.
