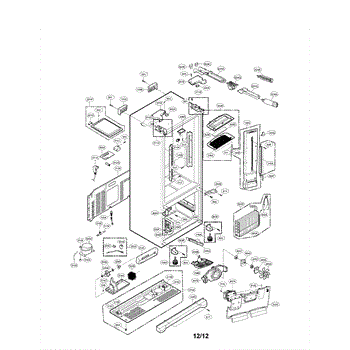

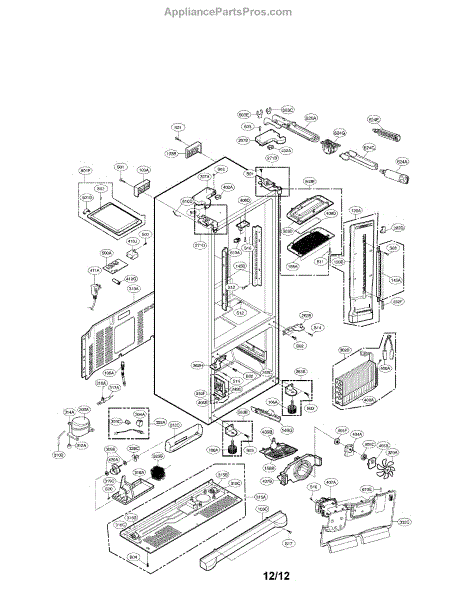

Parts for Lg LFX21976ST02: Case Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This customized screw secures specific appliance components to maintain proper fit and prevent parts from loosening during normal use. Use it when replacing a missing or damaged fastener to restore secure assembly and reduce vibration. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Keeps parts aligned to prevent rattling or movement during operation
• Replaces stripped, missing, or damaged screws that cause loose assemblies
• Helps maintain electrical and mechanical connections by holding parts in place

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Keep removed hardware organized for reassembly; replace any additional damaged fasteners

This is a genuine replacement mounting screw designed to secure appliance panels and internal components, restoring proper fit and stopping movement. Fits specified LG assemblies where the original screw is missing or damaged. What it does:

• Secures panels, brackets, or small components to prevent rattling and misalignment
• Restores proper attachment when original screw is stripped, lost, or broken
• Helps eliminate vibration noise caused by loose fasteners
• Matches OEM fit and thread form for reliable reassembly

• One mounting screw

• Disconnect power and water before beginning any service
• Use the correct driver and do not overtighten to avoid striping threads or cracking components
• Keep removed screws organized to ensure correct replacement locations
• If threads are damaged, replace mating clip or insert as recommended by OEM

This customized screw secures specific appliance components to maintain proper fit and prevent parts from loosening during normal use. Use it when replacing a missing or damaged fastener to restore secure assembly and reduce vibration. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Keeps parts aligned to prevent rattling or movement during operation
• Replaces stripped, missing, or damaged screws that cause loose assemblies
• Helps maintain electrical and mechanical connections by holding parts in place

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Keep removed hardware organized for reassembly; replace any additional damaged fasteners

This is a replacement mounting bolt used to secure appliance components and assemblies, restoring proper fit and reducing movement that can cause noise or misalignment. Use when a factory fastener is missing or damaged. What it does

• Fastens panels or internal components to maintain correct alignment and structural integrity.
• Prevents vibration-related noise and rubbing by holding parts securely in place.
• Restores secure connections after disassembly for service or repair.
• Helps eliminate intermittent movement that can lead to wear or leaks when a fastener is compromised.

• Use the correct bolt length and thread engagement for the application; do not force a mismatched fastener.
• Tighten to snug, manufacturer-specified torque when available; avoid overtightening to prevent stripping.
• Inspect surrounding parts (washers, nuts, threaded holes) and replace if worn or damaged.
• Disconnect power and follow all safety precautions before servicing the appliance.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This is a customized screw used to secure components in LG appliances. It replaces a worn or missing fastener to restore proper assembly and reduce rattling or loose panels. What it does:

• Secures panels, brackets, or small components in the appliance chassis
• Helps stop vibration-related noise caused by loose fasteners
• Replaces missing or stripped screws to restore safe, stable assembly
• Matches OEM fit for the specific mounting point it was made for

• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can damage threads or parts
• Disconnect power and follow appliance-specific safety procedures before servicing

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This is a replacement mounting screw used to secure appliance panels, trim or components. It restores proper attachment to reduce vibration and rattling and helps keep removable parts firmly in place during operation. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Restores secure fit when original screw is missing, loose, or stripped
• Reduces rattling and vibration caused by loose hardware
• Helps maintain proper alignment of removable covers and control panels

• Disconnect power and water before starting any repair
• Verify size and thread match the original screw before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but do not overtighten — overtightening can strip threads or crack plastic parts
• Keep small parts away from children and pets

This lower cover assembly protects the appliance's lower cabinet area and helps keep internal components free from debris while supporting proper airflow. It restores the unit's finished appearance and helps prevent damage to wiring and controls. What it does:

• Shields lower cabinet components from dust, lint and accidental contact
• Helps maintain correct airflow routing under the appliance
• Prevents foreign objects from reaching motors, pumps or wiring
• Re-establishes the finished exterior where the lower panel is missing or damaged

• One lower cover assembly

• Disconnect power (and water, if applicable) before starting work
• Remove any exterior panels or trim as needed; basic hand tools required
• Handle edges carefully; wear gloves to avoid cuts
• Secure all fasteners; replace any damaged clips or screws

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This lamp cover is the replacement light lens that protects and diffuses the refrigerator's interior lamp, restoring even illumination and preventing direct bulb contact. Fits the original mounting for a clean, finished appearance. What it does:

• Protects the interior lamp from spills, splashes, and incidental contact
• Diffuses light for more even interior illumination
• Helps prevent direct exposure to the lamp bulb
• Restores a damaged, cracked, or yellowed lens to improve visibility

• One lamp cover / light lens

• Turn off power or unplug the appliance before replacing the lamp cover to avoid electric shock
• Handle the cover carefully to avoid cracking; use a soft cloth to seat into mounting tabs
• Remove and retain any fasteners or clips from the old cover for reinstallation if applicable
• Replace the bulb before seating the new cover

This light lens covers and protects the interior lamp, diffusing brightness for a clean, finished look. Replacing a damaged lens helps keep the bulb or LED safe from bumps and moisture inside the compartment.

• Shields the bulb/LED from impact and moisture
• Diffuses light for more even illumination
• Restores appearance when the original lens is cracked, yellowed, or missing
• Helps ensure a secure fit

• Disconnect power before servicing and let any hot bulb cool
• Remove shelves or bins as needed for access
• Release the locking tabs or slide the old lens to disengage; avoid prying that could crack plastic
• Seat the new lens fully until the tabs engage; do not force

This hinge cover fits over the door hinge to conceal and protect the mechanism. Replacing a cracked or missing cover restores a clean, finished look and helps keep hinge components shielded from dust, snags, and everyday wear.

• Conceals the door hinge for a finished, factory look
• Helps protect hinge hardware from dust and accidental contact
• Reduces snag points around the hinge area
• Typical failure signs: cracked plastic, broken tabs, missing cover, or a cover that won't stay attached

• Disconnect power before servicing; hinge areas can contain wiring
• Open the door and remove any retaining screw(s) or release the cover's tabs
• Lift off the old cover; align and snap or screw the new cover into place
• The door opens and closes freely with the cover installed

This hinge assembly replaces a worn or damaged refrigerator door hinge to restore proper door alignment and smooth opening and closing. It helps stop sagging doors, noisy movement, and improper sealing for better cooling performance. What it does:

• Supports and pivots the refrigerator door for correct alignment and even sealing
• Replaces broken, bent, or worn hinge hardware that causes door sag or misalignment
• Reduces rubbing, grinding, or noisy hinge movement when opening or closing
• Helps restore proper door closure to prevent cold air loss and temperature issues

• Unplug the appliance and support the door before removing hinge hardware to prevent injury or damage
• Transfer any mounting screws or brackets only if specified by the OEM; replace visibly damaged fasteners
• Tighten mounting fasteners to secure the hinge but avoid over-torquing; confirm door alignment after installation

This hinge secures and guides a refrigerator door for reliable opening and closing. It restores proper door alignment to help maintain an airtight seal and prevent sagging or rubbing. What it does:

• Supports the refrigerator door and attaches it to the cabinet frame
• Guides smooth door movement and maintains alignment
• Helps prevent door sag, uneven gaps, and items catching when opening/closing
• Reduces rubbing, scraping or abnormal door noise caused by a worn hinge

• Disconnect power and remove food from the door before starting; support the door to prevent dropping
• Use the factory mounting screws and follow OEM torque and alignment steps
• Check door position and seal after installation; adjust hinge mounting if necessary

Replacement refrigerator door hinge that restores smooth pivoting and proper door alignment, helping the door open and close reliably and maintain an airtight seal to preserve cooling performance. What it does:

• Supports the refrigerator door and allows it to pivot smoothly.
• Replaces worn, bent, or damaged hinges that cause door sag or misalignment.
• Helps reduce noisy or grinding door operation when the hinge is failing.
• Promotes an even door seal to help maintain internal temperature consistency.

• Unplug the appliance and remove food from nearby shelves before starting work.
• Support the door while removing hinge fasteners to prevent dropping or damage.
• Reinstall using the original hardware; align the door and tighten fasteners securely but avoid overtightening.

The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This damper assembly controls airflow between compartments to help maintain consistent refrigerator temperatures and restore proper air distribution. It replaces a damaged or stuck damper that interferes with cooling balance. What it does:

• Regulates fresh food/freezer airflow by opening and closing the inlet
• Helps correct uneven temperatures or reduced cooling caused by a stuck or broken damper
• Stops unwanted drafts when the damper is closed
• Operates with the fridge's control system to respond to temperature changes

• Disconnect power to the appliance before starting any repair
• Access typically requires removing interior panels or shelving to reach the damper housing
• Handle plastic parts and wiring gently; avoid forcing connectors

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This fan grille assembly replaces the outer grill that covers and protects the appliance cooling fan, restoring airflow management and protecting internal components from debris. Designed for a direct fit where specified. What it does:

• Provides a protective cover for the cooling fan to prevent foreign objects from contacting the blades
• Helps direct airflow for proper cooling and ventilation
• Reduces noise caused by turbulent airflow around the fan area
• Can resolve issues like rattling sounds or reduced airflow caused by damaged or missing grille

• Disconnect power to the appliance before beginning any repairs
• Replacement typically requires removing a few fasteners; keep hardware for reinstallation
• Handle the grille carefully to avoid scratching or bending mounting tabs during installation
• After installation, restore power and verify fan operation and that the grille is secure

The Defrost Control Assembly is an OEM part for LG refrigerators, crucial for regulating the defrost cycle within the unit. This component plays a pivotal role in ensuring that the evaporator coils are periodically defrosted, preventing the build-up of ice that can impede airflow and cooling efficiency.

Causes of a bad Defrost Control Assembly can include electrical failures, sensor malfunctions, or damage to the assembly itself, which can disrupt the defrost cycle.

Symptoms of a bad Defrost Control Assembly include:

• The refrigerator or freezer compartment becoming too warm due to blocked airflow from ice accumulation
• A noticeable build-up of frost or ice on the evaporator coils or in the freezer compartment
• The refrigerator running continuously without cycling off
• Unusual noises coming from the refrigerator as ice builds up and interferes with the fan

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

Motor Bracket secures the motor assembly, keeping it aligned and reducing vibration for reliable operation. Replacing a damaged bracket restores stable motor mounting and helps reduce noise and premature motor wear. What it does:

• Secures and supports the motor to maintain correct alignment and stable operation.
• Reduces motor vibration and operational noise when properly installed.
• A cracked, bent, or broken bracket can cause increased noise, vibration, or motor misalignment.
• Use when the existing bracket is bent, damaged, or failing to hold the motor securely.

• Disconnect power to the appliance before starting any repair.
• Access may require removing the cabinet or an access panel; keep track of fasteners.
• Installation typically requires basic hand tools; avoid forcing parts into position.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement mounting bracket that secures internal appliance components to the cabinet frame, restoring proper alignment and support for moving parts. It helps reduce vibration and prevents loose or sagging assemblies. What it does:

• Provides a stable mounting point for internal components to maintain correct positioning
• Helps stop rattling, knocking, or vibration caused by loose fittings
• Restores support for panels, assemblies, or mechanical linkages that rely on the bracket
• Useful when original bracket is bent, cracked, or otherwise damaged

• Follow manufacturer service manual for correct placement and fastener torque
• Use proper tools and retain all screws/fasteners; replace damaged fasteners as needed
• Disconnect power before accessing internal components to avoid shock or injury

This fan grille assembly covers the interior compartment fan and helps direct airflow. Replacing a damaged grille restores safe, consistent air movement and protects the fan from contact with food items or debris. What it does:

• Shields the compartment fan to prevent accidental contact
• Guides airflow for more even cooling across shelves
• Helps keep packaging and loose items from striking the fan blades
• Replaces cracked, missing, or rattling fan cover components

• 1 fan grille assembly

• Disconnect power to the appliance before servicing
• Remove shelves/drawers as needed to access the fan cover area
• Remove screws or release tabs and pull the old grille straight out
• Seat the new assembly, reuse existing hardware, and verify the fan spins freely before restoring power

This refrigerator sheath heater melts frost from the evaporator so air can circulate freely and the unit can cool properly. Replacing a failed heater helps restore even temperatures and reduce frost buildup in the freezer.

• Warms the evaporator coil during defrost cycles to clear ice
• Helps prevent restricted airflow, warm spots, and long run times
• Common failure symptoms include heavy frost on the evaporator, poor cooling, ice buildup on the back panel, or frequent defrost errors
• May cause sizzling sounds or water under the evaporator area during normal operation after replacement

• Unplug the refrigerator before service; defrost any heavy ice to access parts safely
• Access typically from the rear of the freezer compartment behind the evaporator cover
• Handle heater leads and evaporator fins carefully to avoid damage
• Secure all connectors before reassembly

This LED backlight assembly restores screen illumination for compatible LG LCD/LED TVs, improving picture brightness and uniformity. Use it to replace damaged or failing backlight components and recover visible image lighting. What it does:

• Provides backlight illumination for the TV LCD panel so the picture is visible and evenly lit.
• Replaces damaged or non-functioning LED strips that cause dim screens or dark bands.
• Can address symptoms such as no backlight while image is still present, flickering or uneven brightness.
• Restores overall screen brightness and reduces backlight-related artifacts.

• Disconnect the TV from power and discharge capacitors before beginning any repair.
• Screen and internal components are fragile; handle the panel and LED strips carefully to avoid damage.
• Use ESD-safe precautions and follow manufacturer service instructions where available.

The Run Capacitor is an OEM part for LG refrigerators. It is located near the compressor in the appliance's cooling system. It stores electrical energy and provides a boost to the motor during startup, ensuring smooth and efficient operation. The capacitor helps maintain the required power levels, stabilizes voltage, and supports the proper functioning of the compressor.

Causes of a faulty run capacitor can include electrical issues, capacitor aging or degradation, or damage due to power surges. These factors can result in issues such as the compressor not starting, the appliance not cooling properly, or unusual noises coming from the appliance.

Symptoms of a bad run capacitor may include:

• Compressor failing to start or delayed startup
• Inadequate cooling or no cooling at all
• Unusual noises, such as buzzing or clicking sounds

This OEM LG part can also be used on Kenmore/Sears appliances.

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

This small retaining clip secures its mating component within the refrigerator assembly, keeping parts properly seated and reducing vibration. Replacing a damaged or missing clip helps restore a snug fit and reliable operation of the attached piece.

• Holds the designated part firmly in place within the assembly
• Maintains proper alignment to prevent movement or rattling
• Helps ensure panels, ducts, or lines stay secured during use
• Symptoms can include loose or sagging parts, vibration noises, or components that won't stay attached

• Disconnect power; if working near the water system, also shut off the water supply
• Note the original orientation and placement before removal
• Fully seat the mating component, then press the new clip into place without forcing
• Check operation before reassembly

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Filter Assembly, Head is an OEM replacement part for LG refrigerators. As an essential filtration component, the filter head houses the water filter and is responsible for dispensing clean, filtered water through the refrigerator's dispenser. It works to remove contaminants and improve taste.

Causes of a bad filter head can include normal wear and tear over time, mineral buildup within the head that impacts water flow, or damage to the head itself from accidental impact.

Symptoms of a bad filter head include:

• Reduced or slow water flow from the dispenser
• Noticeable declines in water filtration effectiveness
• Leaks or water damage around the filter head area

This OEM LG part is also compatible with select Sears/Kenmore brand models.

The Water Filter Bypass is an OEM part for LG refrigerators. It is used when you choose not to use a water filter in your refrigerator. This bypass plug allows water to flow directly to the dispenser and ice maker without being filtered, ensuring continuous operation even when a filter is not installed.

Causes of a bad water filter bypass can include damage to the bypass plug, clogging from debris, or wear and tear over time. If the bypass plug is not functioning properly, it can disrupt the water flow and lead to issues with the ice maker and water dispenser.

Symptoms of a bad water filter bypass include:

• Reduced water flow or no water flow to the dispenser
• Ice maker not producing ice
• Water leaks around the bypass plug area

This OEM LG part is also compatible with Sears/Kenmore.

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.
