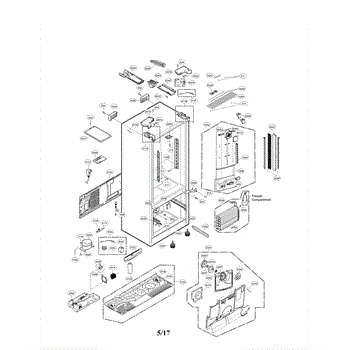

Parts for Lg LFXS29626S/01: Case Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This is a customized screw used to secure components in LG appliances. It replaces a worn or missing fastener to restore proper assembly and reduce rattling or loose panels. What it does:

• Secures panels, brackets, or small components in the appliance chassis
• Helps stop vibration-related noise caused by loose fasteners
• Replaces missing or stripped screws to restore safe, stable assembly
• Matches OEM fit for the specific mounting point it was made for

• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can damage threads or parts
• Disconnect power and follow appliance-specific safety procedures before servicing

This drain tube assembly channels defrost water from the evaporator to the drain pan, preventing leaks and water buildup. Replace a cracked or clogged tube to restore proper drainage and reduce puddles or ice inside your refrigerator.

• Directs defrost water from the drain outlet to the drain pan
• Helps prevent water leaks inside the fresh food or freezer compartment
• Addresses issues from a tube that is cracked, kinked, or obstructed by debris/ice
• Common symptoms: water under crisper drawers, puddles beneath the unit, or ice forming at the freezer bottom

• Unplug the refrigerator before servicing
• Access the drain outlet and remove any ice or debris from the drain path
• Fully seat the tube at both ends to ensure a secure, leak-free fit
• Test by pouring a small amount of warm water into the drain to confirm proper flow to the pan

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This duct assembly channels exhaust air from the appliance to the external vent, helping maintain proper airflow and reduce moisture buildup. Replace a damaged or misaligned duct to restore safe, efficient venting. What it does:

• Directs exhaust air from the appliance to the vent outlet to support proper airflow
• Helps reduce backflow, moisture buildup, and lint bypass when properly sealed
• Fits multiple positions/configurations to accommodate different cabinet or wall locations
• Restores worn, torn, or crushed ducts that can restrict airflow or cause odors

• Disconnect power and unplug the appliance before beginning work; if gas-equipped, turn off the gas supply.
• Use appropriate clamps or screws and high-temperature foil tape where recommended.
• Inspect surrounding venting and replace any crushed or obstructed sections for best performance.

The Temperature Sensor is an OEM part for LG refrigerators. It monitors the internal temperature and sends this information to the control board, ensuring that the refrigerator maintains the correct temperature for optimal food preservation.

Over time, temperature sensors can fail due to electrical issues, exposure to moisture, or wear and tear from continuous use.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• The refrigerator or freezer being too warm or too cold
• The refrigerator running constantly or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

This hinge cover protects and conceals the appliance door hinge, keeping the hinge area clean and improving the door's finished appearance. It helps prevent debris buildup and keeps moving parts shielded from accidental contact. What it does:

• Covers the door hinge to protect pivot components from dust and grime
• Helps maintain a neat, factory-finish look around the hinge area
• Reduces risk of snagging or accidental contact with the hinge
• Compatible replacement for worn, cracked, or missing hinge trim

• One hinge cover

• Remove power and open the door per your appliance's safety instructions before servicing
• Installation typically requires removing a few screws or clips; retain fasteners from the original cover if possible
• Use common hand tools and avoid forcing plastic tabs to prevent breakage

The Hinge Cover Assembly conceals and protects the door hinge area on your refrigerator. It safeguards wiring harnesses while restoring a clean, finished appearance, helping keep the hinge area secure and free of dust and damage.

• Protects the hinge mechanism and wiring for a clean, finished look
• Helps keep harnesses routed correctly and prevents snagging/abrasion near the hinge
• Replaces cracked, broken, loose, or missing hinge covers
• Helps reduce rattling or vibration noise from a loose/damaged cover

• Disconnect power before servicing.
• Support the door as needed; remove any screws or clips securing the old cover.
• Transfer and reuse existing hardware or clips if required; align the new cover and secure in place.
• Ensure wiring is not pinched; ensure smooth door movement before restoring power.

This guide assembly rail is the replacement drawer slide that restores smooth, stable movement for a refrigerator or appliance drawer. It keeps the drawer aligned and reduces sticking or uneven operation for everyday use. What it does:

• Guides and supports the drawer as it opens and closes to maintain proper alignment.
• Reduces sticking, scraping, and uneven travel caused by worn or damaged rails.
• Helps prevent drawer sagging and improves load stability when pulling out the drawer.
• Works with the factory mounting points and keeps the drawer tracking true.

• One guide assembly rail.

• Disconnect power or follow appliance-specific safety procedures before servicing.
• Remove the drawer or access panel to reach the existing rail; keep fasteners for reuse unless replacement required.
• Compare the new rail to the old part to ensure fit and orientation before installing.
• If fasteners are damaged or missing, replace with OEM-specified hardware.

This guide assembly keeps a sliding appliance drawer or rack aligned for smooth, reliable movement and helps prevent sagging or derailment. It restores proper tracking so the drawer/rack opens and closes without binding. What it does:

• Guides and supports a sliding drawer or rack so it stays aligned during use
• Reduces binding, sagging, or derailment when loading or pulling the drawer/rack
• Eliminates scraping or grinding noises caused by a worn guide
• Helps restore smooth, even motion and proper engagement with the slide mechanism

• One guide assembly

• Disconnect power before starting any repair
• Remove the affected drawer/rack to access the guide; keep track of fasteners
• Align the guide with the slide channel and secure per the OEM fastening points; some designs snap in while others use screws
• If mounting hardware is worn or missing, replace with OEM-specified fasteners for safe operation

This center hinge assembly replaces the factory center hinge that supports and aligns the refrigerator doors, restoring proper door movement and a tight seal for efficient cooling. It's a direct-fit mechanical hinge used where the upper and lower doors meet. What it does:

• Supports the weight of the upper/lower doors and maintains proper door alignment
• Lets the door pivot smoothly to open and close without binding
• Helps the door seal correctly to prevent warm air leaks and frost buildup
• Stops sagging or uneven door gaps that cause rubbing or poor closure

• One center hinge assembly

• Disconnect power to the appliance before starting work; if the unit has a water line, shut off the water supply as needed
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use basic hand tools; follow the manufacturer service instructions for torque and fastener sequence

This center hinge assembly secures and guides a refrigerator door, restoring proper door alignment and smooth opening/closing. Replacing a worn or damaged center hinge helps stop sagging doors and improves seal integrity for reliable cooling. What it does:

• Supports the center of a refrigerator door and keeps it aligned on the cabinet frame
• Guides door movement to ensure smooth opening and closing
• Restores proper door fit to help maintain an even door seal
• Addresses symptoms such as door sagging, misalignment, scraping or grinding noises from the hinge

• Disconnect power to the appliance before starting any repair.
• Doors are heavy; support the door and use a second person or proper support when removing or installing hinges.
• Keep track of fasteners and hinge shims or spacers; reinstall in the same order and orientation.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


This evaporator assembly is the sealed evaporator coil and mounting used in compatible refrigerators to absorb heat and support the freezer cooling cycle. Replacing a damaged evaporator restores proper cold circulation and helps eliminate frost build-up in the evaporator area. What it does:

• Absorbs heat from inside the freezer compartment so the refrigerant can carry heat away
• Works with the evaporator fan and defrost system to maintain proper freezer temperatures
• A faulty or damaged evaporator can cause frost accumulation, reduced cooling, or long run-times
• Installed as part of the sealed refrigeration loop to enable normal compressor cycling

• One complete evaporator assembly

• Disconnect power before starting any repair; work in a dry, well-lit area
• This is part of the sealed refrigeration system; repairs that require cutting or brazing refrigerant lines should be performed by a qualified, certified appliance technician
• Inspect and replace any damaged gaskets, insulation, or fasteners during reassembly for best results
• Follow manufacturer service instructions for proper defrost and airflow alignment

The Thermistor Assembly is an OEM part for LG refrigerators. It serves a crucial function in monitoring and regulating the temperature within the appliance. By sensing temperature changes, the thermistor sends information to the refrigerator’s control board, ensuring the system adjusts cooling to maintain the desired temperature settings.

Symptoms of a failing thermistor assembly include:

• Inconsistent temperatures in the refrigerator or freezer
• Refrigerator running longer than usual or not cooling efficiently
• Frequent fluctuations in temperature readings

Causes of thermistor assembly failure typically involve electrical faults, damage from moisture or frost, or simple wear over time, which can impact its ability to accurately measure and report temperatures.

This OEM LG part is also compatible with Sears/Kenmore.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This drip tray catches and channels water runoff inside the appliance to help prevent pooling and minor leaks. It's a direct-fit replacement listed by the manufacturer and sold as the single tray used in the unit. What it does

• Collects condensate or defrost water and directs it to the drain area to prevent pooling.
• Helps stop water from dripping onto lower drawers, shelves or the floor.
• Commonly replaces a cracked, warped or missing tray that causes visible leaks or water buildup.
• Fits into the appliance's lower compartment where the original tray sat.

• Unplug the appliance or disconnect power before servicing.
• Remove any obstructing drawers or shelves to access the tray location; handle glass shelves carefully.
• Lift out the old tray and set the new tray into the same position; no special tools typically required.

Replacement fan guide that directs airflow from the refrigerator fan to improve cooling distribution and help keep the fan blade clear of nearby components. Restores proper airflow and can reduce rubbing or scraping noises. What it does:

• Channels airflow from the fan to promote even temperatures throughout the compartment.
• Keeps the fan blade aligned and away from cabinet walls and other components.
• Commonly replaced when cracked, warped, or broken parts cause rubbing or unusual fan noise.
• Helps maintain efficient cooling by restoring the intended airflow path.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access typically requires removing the interior cover or rear evaporator cover.
• Handle the plastic guide carefully to avoid cracking; align mounting tabs and secure using the original fasteners.
• Inspect the fan blade and motor for damage while replacing the guide; replace any damaged components to avoid repeat issues.

This cover assembly protects the machine components and helps keep internal machinery free of debris and accessible for repair. It provides a durable barrier that helps extend component life and maintains safe operation. What it does:

• Shields motors, belts and internal linkages from dust and lint that can cause wear
• Helps contain moving parts to reduce pinch or contact hazards during normal use
• Maintains proper component alignment by providing a stable mounting surface
• Commonly replaced when cracked, warped, missing fasteners, or damaged from impact

• One cover assembly as shown

• Disconnect power before attempting service
• Handle gently to avoid cracking plastic tabs; inspect mounting clips and screws for damage
• Reuse original fasteners only if undamaged; replace any stripped screws or broken clips

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This grille assembly is the outer fan cover that protects the dryer fan and helps direct airflow. It replaces a damaged or cracked grille to restore proper airflow clearance and prevent debris from contacting the fan. What it does:

• Covers and protects the blower/fan area from loose items and lint
• Helps maintain correct airflow path for efficient drying and venting
• Reduces rattling or vibration caused by a cracked or loose grille
• Prevents small objects from entering the fan housing and causing damage

• One grille assembly (fan) as shown

• Installation requires access to the dryer's front or rear panel depending on model
• Unplug the appliance and shut off gas before starting work
• Inspect surrounding trim and fasteners; replace any broken clips or screws for a secure fit

The Defrost Control Assembly is an OEM part for LG refrigerators. It is designed to regulate the defrost cycle, ensuring that frost buildup on the evaporator coils is periodically melted away. This helps maintain efficient cooling performance and prevents excessive ice accumulation, which can hinder the refrigerator's functionality.

You should replace the defrost control assembly if it becomes faulty. Causes of a bad defrost control assembly can include electrical failures, regular wear and tear, or damage from power surges. A malfunctioning defrost control can lead to issues such as inadequate defrosting, which results in excessive frost buildup and affects the cooling efficiency of the refrigerator.

Symptoms of a bad defrost control assembly include:

• Frost buildup on the evaporator coils
• The refrigerator not cooling properly
• The defrost cycle not initiating or running too frequently
• Increased energy consumption due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

Door switch magnet for reed switch

The MOTOR, DC is an OEM part for LG refrigerators. It is a direct current electric motor responsible for operating components related to cooling and airflow, such as the condenser fan and cooling fan. Efficient airflow circulation is critical for pulling heat away from refrigerated compartments and maintaining even temperatures throughout the fridge.

Causes of a bad motor can include excess dust buildup over time inhibiting proper fan rotation, worn motor brushes, or damaged motor windings affecting current flow.

Symptoms of a bad direct current motor include:

• Abnormally warm refrigerator temperatures
• Louder than usual operating sounds
• Lack of air coming from ventilation areas
• Visible buildup of frost or condensation inside the fridge

Replace yours today with this genuine OEM LG part to restore optimal cooling performance. This OEM LG part is also compatible with Sears/Kenmore.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Magnet Switch is an OEM part for LG refrigerators. It plays an important role in monitoring the position of the refrigerator door.

The magnet switch works together with a magnet installed in the door gasket to detect when the door is opened or closed. It communicates this information to the control board which uses it to manage temperatures and fan speeds accordingly.

Causes of a bad magnet switch can include wear and tear over time, physical damage, or failure of internal components.

Symptoms of a bad magnet switch include:

• Improper cooling and freezing performances
• Inability to detect when the door is opened
• Erratic temperature fluctuations
• Errors codes relating to door sensors

This genuine OEM LG magnet switch restores the door monitoring functions of your refrigerator. It is also compatible with Sears/Kenmore refrigerator models.

The Freezer Defrost Heater is an OEM part for LG refrigerators. It plays a crucial role in the defrost system by melting any frost or ice buildup on the evaporator coils. This helps maintain the efficiency of the cooling system and ensures the freezer operates properly.

Over time, the defrost heater can wear out or fail due to continuous heating and cooling cycles, electrical issues, or physical damage. Causes of a bad defrost heater include burnouts, electrical faults, and accumulation of frost that hinders its functionality.

Symptoms of a bad freezer defrost heater include:

• Excessive frost buildup in the freezer
• The freezer not maintaining the set temperature
• The refrigerator running continuously or cycling more frequently
• Water leaks inside the freezer from melting ice

This OEM LG part is also compatible with Sears/Kenmore models.

This LED assembly restores the display backlight so the TV screen lights evenly and images are visible. Use it to replace a damaged or failed backlight strip that causes dark areas or no screen illumination. What it does:

• Provides the LED light source for the TV's LCD panel backlight.
• Replaces burned-out or flickering LEDs that cause dim, uneven, or striping light.
• Helps resolve screens that power on but appear very dark or show only a faint image.
• Works as the direct replacement component for the TV's backlight system.

• High-level replacement; a moderate level of disassembly of the TV panel is required—refer to manufacturer service instructions.
• Disconnect power and allow capacitors to discharge before servicing.
• Handle the LCD panel and LED strip carefully to avoid damage from flexing, fingerprints, or static.

This LED assembly restores backlight illumination for compatible LG displays, improving screen brightness and uniformity so images look clearer and easier to see. It replaces a worn or failed backlight strip. What it does:

• Provides the backlight illumination that lights the LCD panel
• Restores overall brightness and reduces dark or dim areas
• Can stop flickering or intermittent light if LEDs are failing
• Helps eliminate uneven lighting or bright/dark bands across the screen

• One LED assembly (single backlight strip) as shown

• Disconnect power and allow capacitors to discharge before starting
• Handle the LED strip and circuit board by the edges; avoid touching LED surfaces and PCB traces
• Keep track of screws and clips; test the display before fully reassembling

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This authentic OEM part is a control board assembly for refrigerators. The control board assembly is the main circuit board that controls the refrigerator's essential functions such as adjusting and maintaining temperature. Over time, a refrigerator's control board can become inoperable due to excessive use. If the refrigerator is no longer cooling and failing to maintain its desired temperature, the control board might need to be replaced.Before installing this part, unplug the refrigerator. After that, proceed to open the freezer door and uninstall the side panel to gain access to the old control board. Once accessed, remove the wire harness and any individual wires attached to the control board assembly. Unfasten the mounting screws holding the assembly in place and pull the control board out. Set it to the side, and proceed to install the new board. Reattach the wires in their correct terminals, and reinstall the side panel. This genuine replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with LG brand refrigerators.

This sub PCB assembly is an electronic control board that processes inputs and switches components, coordinating specific appliance functions. Replacing a failed board can restore normal operation and resolve dead controls, error codes, or intermittent, unpredictable behavior. What it does:

• Distributes and regulates control power and switches loads via onboard relays/triacs
• Interprets signals from sensors and the user interface to execute commands
• Coordinates timing and operation of related components per the appliance's program logic
• Failure may present as no power, won't start, unresponsive or flickering display, random beeps, or recurring error codes

• 1 sub PCB assembly

• Disconnect power to the appliance before servicing; verify no voltage is present
• Use ESD protection and handle the board by the edges
• Photograph wiring; transfer connectors one at a time and ensure they are fully seated
• Secure the board with existing fasteners/standoffs; perform any required reset or diagnostic per your model's service info

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Temperature Sensor is an OEM part for LG refrigerators, designed to monitor and relay the temperature inside the refrigerator to the control board. This component ensures that your refrigerator maintains the correct temperature to keep your food fresh and safe to eat.

Over time, temperature sensors can fail or become less accurate due to wear and tear, environmental factors, or electrical issues. This can lead to problems such as the refrigerator cooling too much or not enough, resulting in food spoilage or excessive energy consumption.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer is too warm or too cold, despite setting adjustments
• Unusual fluctuations in temperature, indicating the sensor is not accurately detecting or communicating the internal temperature
• The refrigerator runs constantly or more frequently than normal, attempting to reach the desired temperature

This OEM LG part is also compatible with some Kenmore models.

This water filter head assembly holds the water filter and connects the water lines to the filter.

This filter cover replaces the damaged or worn cover that holds the air filter in place, helping maintain correct filter position and airflow for proper operation. It's a direct-fit replacement designed for easy swap-out. What it does

• Secures and protects the air filter inside the unit so the filter seals and sits correctly.
• Maintains proper airflow path to help the system run as designed.
• Prevents debris from bypassing the filter and entering internal components.
• Helps reduce rattling or vibration caused by a loose or broken cover.
• Restores the intended fit and finish of the filter compartment.

• One filter cover

• Disconnect power or remove batteries before removing the old cover to avoid fan or electrical hazards.
• Remove the old cover by releasing clips or screws; align replacement and engage clips or reinstall screws securely.
• Do not force the cover—ensure filter is seated correctly before closing to avoid damage.
• Replace hardware with OEM-equivalent parts for proper fit.

The Water Filter Bypass is an OEM part for LG refrigerators. It is used when you choose not to use a water filter in your refrigerator. This bypass plug allows water to flow directly to the dispenser and ice maker without being filtered, ensuring continuous operation even when a filter is not installed.

Causes of a bad water filter bypass can include damage to the bypass plug, clogging from debris, or wear and tear over time. If the bypass plug is not functioning properly, it can disrupt the water flow and lead to issues with the ice maker and water dispenser.

Symptoms of a bad water filter bypass include:

• Reduced water flow or no water flow to the dispenser
• Ice maker not producing ice
• Water leaks around the bypass plug area

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement filter cover that secures and protects the air filter on compatible LG air-care units. It restores proper filter fit and helps maintain airflow and filtration performance for safer, cleaner operation. What it does:

• Holds the air filter in place and protects it from damage and debris
• Helps maintain correct airflow through the filter assembly
• Prevents gaps that can allow unfiltered air to bypass the filter
• Addresses symptoms such as a cracked, loose, warped, or missing filter cover

• One filter cover (housing) as shown

• Disconnect and unplug the appliance before servicing
• Remove the filter and detach the old cover (typically snaps or screws) before installing the replacement
• Align tabs and secure the cover until it seats firmly; do not force or bend mounting tabs
• If screws are used, tighten evenly to avoid distorting the cover; test fitment before powering on

This LED light cover protects and diffuses the appliance's interior LED, restoring even lighting and a finished appearance. It is a direct-fit replacement designed to match the original factory lens. What it does:

• Protects the LED assembly from debris and impacts
• Diffuses and softens LED output for even interior illumination
• Restores a cracked, yellowed, or missing lens that affects light distribution
• Helps prevent direct contact with the LED board

• One LED light cover

• Disconnect power or unplug the appliance before starting
• Handle the lens carefully to avoid scratches; it typically snaps into place or is retained by a few clips
• Use a small screwdriver only if necessary to release retaining clips; avoid forcing parts

The Air Cleaner Filter Assembly is an OEM part for LG refrigerators. This part ensures the air within the appliance remains fresh and free of contaminants. This part minimizes odors and filtering out particulates, thereby maintaining the quality of the air circulating through the refrigerator and its contents.

Over time, the effectiveness of the air cleaner filter can diminish due to the accumulation of particles and odors it has trapped. A decrease in air quality within the refrigerator, persistent odors despite cleaning, and an increase in the spoilage rate of food items can all be signs that the filter assembly may need replacement.

Symptoms of a bad Air Cleaner Filter Assembly include:

• Persistent unpleasant odors inside the refrigerator
• Increased spoilage of food items
• Noticeable reduction in air freshness or quality

This OEM LG part is also compatible with some Kenmore models.
