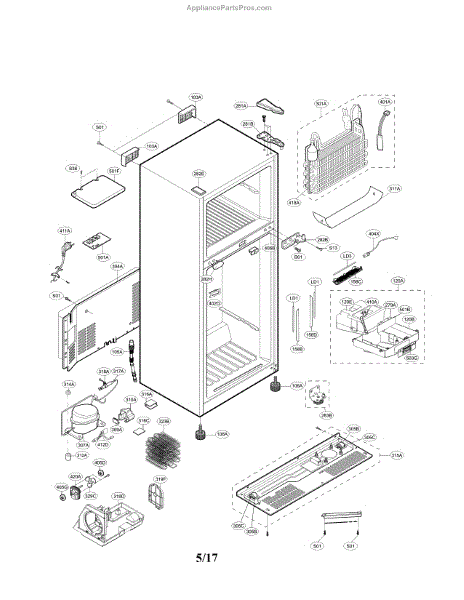

Parts for Lg LTCS24223S/05: Case Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This customized screw is the manufacturer-specified fastener used to secure appliance components and panels at their mounting points. Replace a missing, stripped, or corroded original to restore a tight fit, proper alignment, and help eliminate vibration or rattling.

• Secures brackets, covers, and panels to the chassis at designated mounting points
• Maintains alignment and stability of the assembly during operation
• Helps address loose or rattling components caused by a missing or damaged fastener
• Direct replacement for the original fastener used in the specified location

• Disconnect power; shut off water before servicing
• Match head/length to the original; transfer any original clips or washers if used
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Tighten until snug—do not overtighten into plastic or thin sheet metal

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling or loose parts. Simple, direct replacement when a worn or missing screw causes loose panels or intermittent contact. What it does:

• Fastens panels, brackets, or small components to maintain proper alignment and reduce vibration
• Prevents loose trim, covers, or assemblies that can cause noise or improper sealing
• Replaces missing, stripped, or corroded screws that interfere with reliable operation
• Works wherever the OEM screw specification is required for secure mounting

• Use the matching screw hole and tighten until snug; avoid over-torquing to prevent stripping
• Disconnect power to the appliance if accessing electrical or moving parts near the work area
• If multiple screws are missing or panels are damaged, replace all fasteners for even support

This control case assembly is the replacement outer housing that holds and protects the appliance control board and user interface, restoring a secure fit and proper button/panel alignment for safe operation. What it does:

• Houses and protects the control board and associated electronics from dust, moisture, and accidental contact
• Keeps control panel buttons and switches properly aligned for reliable user input
• Prevents loose or rattling control components that can cause intermittent operation or noise
• Supports the front panel and display mounting for normal appearance and functionality

• Disconnect power to the appliance before starting any repair to avoid electric shock.
• Handle the control board and connectors carefully; avoid touching circuit traces or components.
• Basic hand tools are typically required to remove the panel and transfer the control board into the new housing.
• If the control board is damaged or shows corrosion, this part replaces only the housing unless otherwise specified.

This Hinge cover protects and conceals the hinge mechanism on your appliance for a finished look and to help prevent dirt buildup. It keeps the hinge area neat and reduces exposure to bumps and wear. What it does:

• Covers the exposed hinge to improve appearance and protect moving parts
• Helps keep lint, dust, and debris out of the hinge area
• Prevents direct contact with the hinge to reduce cosmetic damage
• Useful if the original cover is cracked, broken, or missing

• One hinge cover

• Designed for straightforward replacement—typically snaps or screws into place
• Use basic hand tools; avoid forcing the cover to prevent breakage
• Disconnect power or follow appliance safety guidance before doing repairs that expose internal components

Upper hinge assembly that restores proper door pivot and alignment for smooth opening and closing. Replacing a worn or damaged upper hinge helps reduce sag, noise, and uneven sealing so the door closes correctly. What it does:

• Supports and pivots the refrigerator door for stable, controlled movement.
• Keeps the door aligned so the gasket seals evenly and the interior stays cold.
• Use when the door sags, binds, grinds, squeaks, or does not latch evenly.
• Replace bent, worn, or damaged hinge components that cause misalignment.

• Disconnect power and remove items from the door before starting; follow all safety precautions.
• Door removal and reinstallation often require a second person to support the door.
• Hinge orientation and hardware before tightening; follow the manufacturer service instructions for final alignment.
• Reuse or replace mounting screws and bushings as needed; do not overtighten fasteners.

A small plastic hinge cap that covers and protects a refrigerator/freezer door hinge, restoring a finished appearance and shielding the hinge from dust and debris. Simple replacement for a cracked, broken, or missing cap. What it does:

• Covers the exposed door hinge to improve appearance and protect moving parts
• Helps keep dirt, lint, and debris out of the hinge area
• Prevents sharp or rough hinge edges from catching on clothing or food-packaging
• Replaces cracked, broken, or missing hinge caps that leave the hinge exposed

• Support or brace the door before removing or replacing hinge covers to avoid door movement
• Use basic hand tools as needed; remove nearby trim or screws per the appliance service instructions
• Check fit and orientation before tightening any fasteners; do not force or snap parts beyond their designed engagement

Restore smooth, proper door movement with this Center Hinge Assembly. It supports the refrigerator door at the middle pivot point, helping maintain alignment and ensuring the door opens and closes correctly to seal out warm air.

• Supports the door at the center pivot for stable operation
• Helps correct issues like a sagging, misaligned, or rubbing door
• Can reduce squeaks or binding when opening/closing
• Helps the door seal contact the cabinet evenly for proper cooling

• Disconnect power and clear items from the door before service
• Support the door to prevent drops; remove hinge cover and mounting screws
• Transfer any shims/spacers in the original order for proper alignment
• After reassembly, verify door alignment and gasket seal

The Lower Hinge Assembly is an OEM part for LG refrigerators. This lower hinge safely and smoothly supports the weight of the refrigerator door.

Causes of a bad lower hinge can include loose or worn parts from years of use, damage from overloading doors with heavy items, or failure due to impact or bending stresses.

Symptoms of a bad lower hinge include:

• Doors sagging or dropping over time
• Noisy squeaks or grinding sounds coming from hinges
• Difficulty opening and closing doors smoothly
• Doors unable to stay open at various angles

Replace yours today with this genuine OEM LG assembly before further issues develop. This replacement part is compatible with Frigidaire, Samsung, and Kenmore models for a factory fit and function.

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

This overload protector is a motor thermal cut-off that helps prevent motor overheating by interrupting power when temperatures get too high. It restores normal operation after the motor cools, helping protect the motor from heat damage. What it does:

• Senses excess motor temperature and interrupts power to prevent overheating
• Commonly used when a washer or motor hums, won't spin, or stops mid-cycle
• Protects the motor and associated components from heat-related failure
• Resets or is replaced after a thermal fault clears, depending on design

• Disconnect power before accessing the motor or electrical components
• Handle and mount the protector per OEM orientation to ensure proper thermal contact
• Inspect motor and wiring for underlying faults before replacing

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

This controller assembly is the display/control circuit board used in compatible units. Replacing a failed board restores proper front-panel operation so you can select settings, view status, and run the appliance reliably again.

• Governs user input and display functions for the appliance's front panel
• Resolves issues like unresponsive buttons, blank or erratic display, or incorrect function selection
• Helps restore normal operation when the original board is shorted or damaged
• Designed to fit per manufacturer specifications for the intended models

• Disconnect power before servicing; electronic components can store charge
• Handle the board by edges; avoid static discharge—use ESD protection if available
• Photograph wire and connector positions before removal to ensure proper reconnection
• Do not overtighten mounting screws; verify all harnesses are fully seated

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This harness assembly routes power and signals between appliance components to restore electrical connections and normal operation. It replaces damaged or frayed wiring to stop intermittent power, control failures, or no-start conditions. What it does:

• Reconnects power and control circuits between major components
• Replaces damaged, burned, or frayed wires and connectors that cause intermittent or lost function
• Restores reliable signal paths to controls, sensors, and motors
• Helps resolve symptoms like sporadic operation, failure to start, or component non-response

• Disconnect power to the appliance before accessing electrical components.
• Match connectors and wire routing to the original harness during installation to avoid pin miswiring.
• Inspect connector pins and mating terminals for damage; replace the harness if pins are bent or corroded.

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

The Heater Sheath is an OEM part for Frigidaire refrigerators. It contains a heating coil that provides regulated temperatures within the fridge. The sheath helps direct airflow while protecting internal insulation.

Causes of a faulty heater sheath can include normal wear from years of cooling cycles. Mineral deposits accumulating on the coil could disrupt temperature regulation. Physical damage puts it at risk for air and moisture leakage issues.

Symptoms of a failed heater sheath are:

• Fluctuating interior temperatures and issues maintaining the temperature setting
• Frost or ice buildup within the fridge compartments
• Increased energy usage without adequate chilling performance

This OEM replacement part is compatible with brands including Electrolux, Gibson, Kelvinator, and Kenmore.

This part is an LG refrigerator control board. A refrigerator's control board acts as the central processing and command center for the appliance. All of the functions of the refrigerator will originate from the control board. Essentially, the control board is the main nerve center of the refrigerator. A clicking noise may originate from the refrigerator if the board is damaged. Intermittent cooling and freezing is another way of identifying damage. Noticeable dimming of the numbers on the screen may also be an indicator.To install this part, return to the metal faceplate on the back of the refrigerator. Remove the plate and locate the connecting wire. Plug the control board wire into the refrigerator connecting wire. Insert the control board back into place using the mounting clips that hold it into position. Power the refrigerator back on, and make sure the proper functions have returned. Replace the metal plate and reset the refrigerator back to the desired levels.This part is a genuine OEM product and is sourced directly from the manufacturer. The piece described is made exclusively for LG appliances.

The PCB Assembly, Display is an OEM part for LG refrigerators. It is responsible for controlling the refrigerator's display functions and interface. This board monitors temperature and cycle settings and regulates the input/output of operational data to the control panel. It assists users by displaying temperatures, selections, and error codes.

Causes of a bad display board can include liquid damage, thermal stresses from opening/closing doors over time, and short circuits due to manufacturing defects.

Symptoms of a bad PCB assembly include:

• Faulty or unreadable control panel display
• Buttons not responding properly
• Random error codes appearing
• Glitches in temperature or function display

This genuine LG replacement ensures dependable control panel performance. It preserves your investment and restores full refrigerator operations. This part is also compatible with Sears/Kenmore models utilizing LG components and controls.
