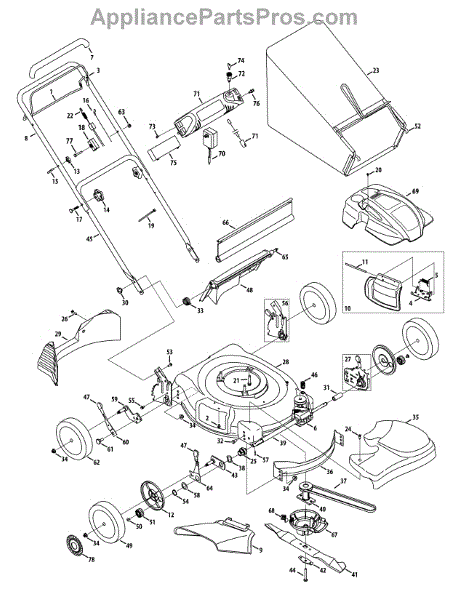

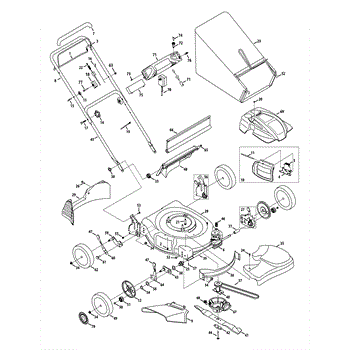

Parts for Cub Cadet Home Maintenance 12AE46JA009 / HM 2012: Cc46es General Assembly (Cub Engine) Parts

This replacement part is a screw. This is a genuine replacement part made by MTD. A screw is a small part but important to the overall workings of many appliances. Screws work with other small pieces such as nuts and washers to keep parts in place and secure during use.A new screw might be needed if the current one is missing or damaged. This can be caused by normal wear and tear or an isolated incident. Screws endure friction over time and can become worn down.This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

This control handle is designed specifically as a replacement for use on select walk-behind lawn mowers. The control handle is the safety that is engaged to allow the engine to run. When holding the control handle in, the pull start can be activated and the engine will run. Once the control handle is released, the engine will stop. In the event that the control handle becomes damaged or fails, it will need to be replaced so that the mower can continue to be used. This handle can provide a genuine replacement for compatible models. This control handle is manufactured to exact standards by MTD and provides an exact fit. It is compatible with hundreds of models, including select models from RYOBI, Yard Machines, Troy-Bilt, Yard-Man, Husky, Bolens, and Cub Cadet. This part is also known as the control bar, control handle, engine stop handle, bail control, or mower bail. It is made of durable metal and sold individually. No tools are required for the installation of this part. To replace the handle, simply squeeze the existing control handle to remove it from the outer handle, and then align the new handle and slide it into place. When properly installed, the pressure will hold it in place and allow for proper operation.

This replacement part is a transmission assembly intended for use in lawn equipment. This is a genuine replacement part made by MTD. Transmissions work with the engine, pulleys, and other parts to ensure that the machine is working properly. A new transmission might be needed if the current one is unable to power the appliance on, or if the machine stops working abruptly while in use. Be sure the appliance is completely powered down and cooled off before attempting to replace this part. It is recommended that the user refer to the appliance manual for more detailed instructions on how to install this part. This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with lawn equipment made by MTD.

This 21-inch deck chute is an OEM-authorized part that is designed for use with select walk-behind push lawn mowers. The deck chute directs the grass clippings that are expelled by the mower blade as they are discharged from the deck. The mower deck cover should be removed and replaced with the chute, as they will not both fit on the hinge at the same time. This chute sees a lot of use and is subject to potential impact with the ground and various obstacles, which makes it prone to damage over time. It can even become detached and need a full replacement. This genuine OEM chute will provide the perfect fit for compatible mowers. This deck chute is manufactured to specific standards by MTD and can work with over 150 machines from RYOBI, Yard-Man, Yard Machines, Troy-Bilt, MTD, Bolens, Husky, and Cub Cadet. Refer to the parts diagram and owner's manual to confirm part number compatibility and location of the chute. This part is made of durable plastic material and is sold as a single unit. Hardware is not included with this part and will require an additional purchase. Always disable the engine before working near the mower blade for safety.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This hex screw is a genuine MTD part, sold individually. This hex screw can be used as a replacement part in lawn mowers, snowblowers, tillers, leaf blowers, and wood chippers. The purpose of a screw for one of these outdoor appliances is to serve as a fastening component.This hex screw might have to be ordered as a complete replacement in a hex screw that has been lost, misplaced, or stripped as a result of general wear and tear over long-term use or due to an accidental collision with a hard object. If this occurs, the screw should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Yard Man, and MasterCut.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This is a grass catcher that attaches to the cutting deck of a number of walk behind lawn mowers. The bag fits over the metal bag frame, which is sold separately. The bag and frame are designed to detach easily from the mower so that grass clippings can be discarded quickly and the bag can be reattached. Although it is made of durable fabric, bags do become worn out. This is primarily a result of being dragged against grass, obstacles, fences, and other impediments. Once worn, the bags cannot be satisfactorily repaired and thus need to be replaced. Replacement is a simple matter of removing the fabric bag from the metal frame and slipping the new replacement bag back onto the frame. While making the replacement, it is a good idea to check the status of the metal frame, which can also become bent or even broken during normal use. When replacing this grass catcher bag, it is essential to avoid purchasing a generic, lower quality item. Instead, make sure to use a genuine OEM replacement part such as this one, which is manufactured to be identical to the original. This bag is compatible with mowers offered by Ryobi, MTD, Yard Man, Bolens, Yard Machine, Husky, Cub Cadet, and Troy-Bilt.

The shoulder screw is used in places where a spacer or bearing surface is needed, since the top half of the screw is unthreaded. These fasteners are often used for guides, pivot points, mounting pins, axles, and even a shaft for bearings and bushings in various MTD engines. With regular use, the screws can wear down or be lost. Always repair the missing hardware promptly with genuine OEM replacements. Disengage the spark plug and wear gloves when performing work on engines for safety. This genuine OEM replacement shoulder screw has been designed to be compatible with machines from MTD, Troy-Bilt, Yard-Man, Yard Machines, Bolens, Cub Cadet, and Craftsman. It can be used for multiple applications and in multiple locations in different models of lawnmowers, tractors, and chippers that use the screw in various applications. Check your parts diagrams for the exact location and use of these screws before ordering. This is sold as an individual unit; order multiple quantities as needed.

This screw is a hex wash head screw. It is a genuine MTD part. It is a replacement part for various makes and models of lawn mowers, snowblowers, edgers, and other equipment. A screw is a type of fastener, and as such, there are many screws on these appliances.Screws may become worn over time through normal wear and tear. In addition, screws can become stripped when making another repair, so it is a good idea to have compatible screws on hand in case. This hex wash head screw is made of durable metal.This screw is a genuine OEM part that is sourced directly from the manufacturer. It is sold individually, though there are many screws located on these types of equipment. It is made to be compatible with equipment manufactured by MTD, Yard Machines, Bolen, Troy-Bilt, Craftsman, Husky, Cub Cadet, and many others.

This replacement part is a height adjuster. This is a genuine replacement part made by MTD. This part allows the user to adjust the height of the blades in a lawn mower for finer control over the length of the grass after cutting.A new height adjust might be needed if the user is unable to control the height of the blades in the lawn mower. This can be from an isolated incident or from normal wear and tear over time. If the height adjuster is faulty, the user might not be able to change the settings to their desired height. Be sure to wear work gloves as this part is typically close to the blades of the machine. This part is sold individually and is sourced directly from the manufacturer. This part is also a genuine OEM replacement part to ensure proper fit.

This is a genuine wing nut replacement designed for use in select walk-behind lawn mowers. Although some wing nuts are considered standard hardware on lawn mowers and other equipment, this specific wing nut connects to a bolt and secures the front baffle to the deck of the mower. Over time, this plastic wing nut can crack, fall off, or the threads may become damaged. This will result in the mover assembly being affected and the unit may not be able to be used until the nut has been properly replaced. This genuine replacement part will provide the exact fit for compatible mowers. This genuine OEM wing nut is manufactured to exact standards and comes from MTD. It can be used with hundreds of walk-behind lawn mower models from the brand, as well as those from Cub Cadet, Ryobi, Troy-Bilt, Bolens, Yard Man, Yard Machines, and Huskee. This plastic wing nut is sold individually. The carriage bolt that it connects to will need to be purchased separately if that also needs to be replaced. No tools are required for this installation, as it can simply be hand-tightened into place. Wear gloves for hand protection when performing equipment repairs.

This replacement part is a hex screw. This is a genuine replacement part made by MTD. This type of screw is commonly found in many types of machinery and appliances. Screws are able to keep certain parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged in any way or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal use. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required on top of a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This V-belt is a genuine MTD part, sold individually. This V-belt can be used as a replacement part for lawnmowers. The v-belt of a lawn mower is operated by a network of pulleys that work in conjunction to turn the belt powered by the engine. The purpose of the V-belt for a lawnmower is to rotate the lawnmower blades.A V-belt might suffer damage that can stop the belt from helping the lawn mower blades to rotate and mow effectively. Symptoms of a damaged v-belt can include visible cracks, deterioration, or erosion, or visible damage to the side wall. If any of these symptoms are attributable to a malfunctioning or damaged V-belt, the component should be removed and replaced with this genuine OEM replacement part before operating the lawn mower again. Remember to wear gloves when handling, repairing, and using outdoor equipment.This is an OEM part sourced directly from the manufacturer, and it is sold individually. This V-belt is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard-Man, and MasterCut.

This is a special type of washer called a wave washer. It is used for mowers and is compatible with many models from popular brands. The wave washer is used to provide some cushioning between the part assemblies along the shaft in the mower. If it is missing or damaged, it could cause the mower to have more vibrations, which can make it more difficult and uncomfortable to operate.The wave washer is made from metal and it is a durable piece. However, it could corrode or break, and it could be lost when making other repairs to the mower. Owners will want to be sure that they replace the washer if there is any trouble with it. The replacement is easy, but owners should be sure to wear gloves to protect their hands.The wave washer is used with select models of mower from MTD, Ryobi, Troy-Bilt, Yard-Main, Bolens, Cub Cadet, Husky, and Yard Machines. The piece is sold individually. It is a genuine OEM replacement part that was sourced from the manufacturer.

This is a blade adapter assembly for a lawn mower. The blade adapter serves as a mount for the blade allowing it to freely rotate. A mounting bolt and blade support hold the blade in place, with the bolt fastening directly into the blade assembly. This is a genuine OEM part and is sold individually. This part is compatible with several brands, including Cub Cadet, Troy-Bilt, Yard Machines, and Yard Man. Blade adapters should be replaced when they are worn or broken. A broken or sheared key in the blade adapter will cause the blade to loosen. To replace the blade adapter, first disengage the engine and weight the mower down. Prop the cutting blade before positioning a ?-inch socket on the bolt. Then use a mallet to strike it and loosen the mounting bolt. Unthread the bolt and remove the blade support and blade. A mallet or gear puller will help to remove the old adapter. The new blade adapter can then be installed by aligning the key with the slot in the crankshaft and pushing it into place. Replace the blade, cutting edge down, align the support, and rethread the bolt. Secure the blade before torquing the bolt to 30 foot-pounds.

A mulching blade has a unique curved or angled design that allows discharging, bagging, and mulching. If its edges are already dull, it can lead to longer mowing time and frayed and torn grass blades. Mulching blade installation is easy. First, unplug the spark plug wire. Then, position the lawnmower on its side. Get a woodblock, preferably 6 x 2 in size, and put it between the old blade and housing deck. Make sure that the wood will prevent the old blade from moving. Take a socket wrench and remove the blade’s nut and washer. Remove the old blade and put the new mulching blade in. Put the nut and washer back and tighten until it is secured. You can use the woodblock to prevent the replacement blade from moving when it is tightened. This mulching blade replacement s an original MTD product. This OEM mulching blade can be used for MTD, Craftsman, Cub Cadet, Murray, Yard-Man, and Bolens lawnmower models. This brand-new mulching blade is sold individually. The support blade and screw hex are sold separately.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

This hex screw can be used as a replacement part for the small engine of a lawn mower or a lawn tractor. The hex screw is a fastener with a six-sided head that is responsible for fastening components to one another. A hex screw might be lost or misplaced, which is a frequent occurrence in small engine appliances as a result of long-term usage. Hex screws are easily lost and misplaced as they are small components that do not necessarily cause damage upon unscrewing unless it results in the materials coming loose. If this is the case, or if the hex screw suffers from impact or corrosion to the metal material, the hex screw should be removed and replaced with this genuine OEM replacement for lawn mowers and lawn tractors. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, MTD. It is sold individually. This hex screw is compatible with the following brands: MTD, Troy-Bilt, Yard Man, and Bolens.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

This specially designed lawn mower wheel provides reliable performance for walk behind lawn mowers. This wheel is black. The wheel's evenly spaced ridges provide traction on most lawn surfaces. This wheel is intended for home lawn maintenance mowers in need of a replacement wheel. The wheel can be used to replace the front or rear wheels in supported models. These wheels attach to the drive assembly. This complete wheel is sold individually and has two connection points, as well as the hollow middle which allows it to fit easily onto the wheelbase. Wheels can require replacement after they are damaged or destroyed by debris, nails, rocks, or incorrect use. This wheel provides a reliable replacement for wheels that have failed. Self-propelled mowers have the ability to be lowered and raised according to the terrain. These wheels will support a walk-behind mower used in this capacity.This lawn mower wheel is compatible with walk-behind push lawn mowers, including Cub Cadet, MTD, Bolens, and Yard-Man. Refer to the lawn mower's manual for instructions on replacing a wheel. Models may vary. This Genuine MTD part is an OEM replacement part sourced directly from the manufacturer.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

This replacement part is a handle bracket assembly. This is a genuine replacement part made by MTD. Brackets are used to connect two pieces together and ensure that they are secure during use. A new handle bracket assembly might be needed if the current one is unable to properly stay attached in any way. This can be due to damage over time and should be replaced if this is the case. The bracket assembly might have become stripped due to normal wear and tear. Be sure to refer to the proper use guide for more information on how to install this part efficiently and correctly. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This replacement part is a handle assembly. It is a genuine replacement part made by MTD. This type of handle is typically found in push lawnmowers and helps the user control the speed and settings on the lawnmower during use. This part helps the user in turning and maneuvering the machine. A new handle assembly might be needed if the current one is damaged or missing. This can include being cracked, dented, or chipped. If the handle is not working properly the user might not be able to utilize all the functions of the machine and it should be replaced as soon as possible. Be sure to wear work gloves especially if the previous handle is damaged. This part is sold individually and is sourced directly from the manufacturer to ensure long-lasting use. This is also a genuine OEM replacement part.

This dowel pin is a genuine MTD part, sold individually. This dowel pin can be used as a replacement part for a lawn mower, a tiller, or a wood chipper. The purpose of a dowel pin in one of these tools is to serve as a fastening component that affixes two different components to one another by fitting into the cylindrical hole of the dowel pin.The dowel pin can be easily lost or misplaced as it is a small component. The dowel pin can also become stripped. If this occurs, the component should be immediately replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement. The operator of the appliance should be aware that this component is a genuine OEM replacement part, sourced directly from the manufacturer. It is sold individually. This dowel pin is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Bolens, MasterCut, and Yard Man.

This replacement part is a pivot arm assembly. This is a genuine replacement part made by MTD. Pivot arm assemblies allow the user to turn or rotate certain parts so that they can maximize the user experience during use. A new pivot arm assembly might be needed if the current one no longer works. If the pivot mechanism is no longer able to turn or rotate, it might be time to replace this part. It is not uncommon that the part can become stripped over time. Remember to wear work gloves when attempting to replace this part. The engine should be turned off completely during this repair. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This replacement part is a wheel. It is a genuine replacement part made by MTD. These types of wheels are commonly found in ridden lawnmowers and assist the user in turning and maneuvering the machine to the desired location during use.A new wheel might be needed if the current ones are popped or leaking air. It is possible that over time the wheels may lose traction due to normal wear and tear and will need to be replaced. If one or two wheels need replacing it is recommended that the user replaces all four at the same time to ensure consistency. This should be a quick repair and the user might need a screwdriver or pliers. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit and long-lasting use. This is a genuine OEM replacement part.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

A train shield is found on many walk-behind lawn mowers. It is located on the rear side of the lawn mower. The function from the position where it is mounted is to keep grass from expelling from the mower deck. With use or as a result of accidental impact, the train shield may become damaged or fall off. If the train shield is broken or missing, it will allow grass to come out from the mower deck, which poses a safety risk. Check to see if grass is being expelled from the motor deck.Installing a train shield on a lawn mower is an easy task. There is hardware required to secure the part in place. Wear gloves for protection. Make sure the machine is entirely cool.This train shield is a genuine OEM replacement part. It is sourced from the manufacturer. The train shield is made of durable, high-quality plastic. It is sold individually. The train shield can be installed on MTD, Troy-Bilt, Yard-Man, Bolens, Yard Machines, Cub Cadet, and Huskee brand lawn equipment. It is compatible with several models of walk-behind lawn mowers.

This harness assembly is a genuine MTD part, sold individually. This harness assembly can be used as a replacement part in a lawn mower. The purpose of a harness assembly in a lawn mower is to connect all of the cables and wires in a manner that protects these components from potential damage from exposure to the elements or any other puncturing, scraping, or fraying that could occur.The harness assembly in a lawn mower might have to be replaced at some point within the typical lifespan of the appliance if the harness assembly is compromised. If the harness assembly is damaged to the point that the internal components of the harness are exposed to the elements, the harness assembly should be removed and replaced by this genuine OEM replacement part in order to guarantee the safety of the operator while the lawn mower is in use.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This harness assembly is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Yard Man, and MasterCut.

This is a simple set of lawnmower ignition keys. They’re also used for an array of riding mowers, lawn tractors, and even snowblowers. To simplify repair and replacement procedures, most manufacturers use standardized keys for all their machines in a given class. As a result, a single key can be used for dozens of machines. The keys are manufactured from stainless steel, with an INDAK logo stamped into the center. Regardless of whether the machine is a walk-behind mower or a full-sized lawn tractor, a keyed ignition is easier to operate than a recoil cord. Similarly, replacing a key is generally straightforward. The exception is if the old key has snapped off in the ignition. In this case, a set of needle-nosed pliers can sometimes be used to extract the key. A powerful magnet can also be helpful if the broken key is being stubborn. In the worst-case scenario, the ignition may need to be replaced. This is an OEM part sourced directly from MTD, and it is sold as a set of two.

This wheel hub cap is a genuine MTD part, sold individually. This wheel hub cap can be used as a replacement part in a lawn mower. The hub cap protects the wheel from flung debris.The wheel hub cap might have to be completely replaced if one or more of the hubcaps no longer prevent damage to the mower wheel. If the hubcap falls off of the wheel or is punctured, scraped, dented, cracked, eroded, or otherwise damaged, the wheel hub cap should be removed and replaced by this genuine OEM replacement part for safe continued usage of the lawn mower.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This wheel hub cap is compatible with the following outdoor appliance brands: MTD, Craftsman, and Cub Cadet.
