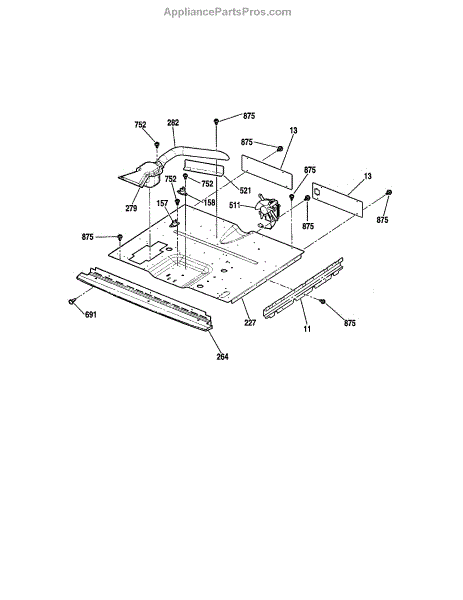

Parts for Kenmore 911.47749200 (91147749200, 911 47749200): Center Spacer Parts

This lower limit switch is the replacement lock-position switch used on the appliance door/lock assembly to restore proper lock sensing and control operation. Replaces a worn or failed lower lock switch to help the unit recognize door lock position. What it does

• Detects the lower/locked position of the door latch so the control can allow oven/cook functions
• Stops appliance operation or shows lock-related faults when the door isn't secured
• Commonly fails after wear, leading to lock faults, inability to start, or door-lock errors
• Works as the electrical sensor portion of the door/lock mechanism

• One lower limit switch (lock)

• Disconnect power to the appliance before starting any service
• Replacement may require removing the door or access panel and detaching the lock/latch assembly
• Handle small fasteners and electrical connectors carefully; note connector locations before removal

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Black. 8-18 AB HXW 3/8
