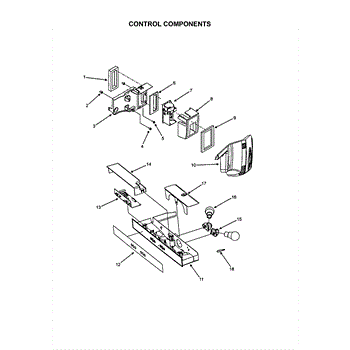

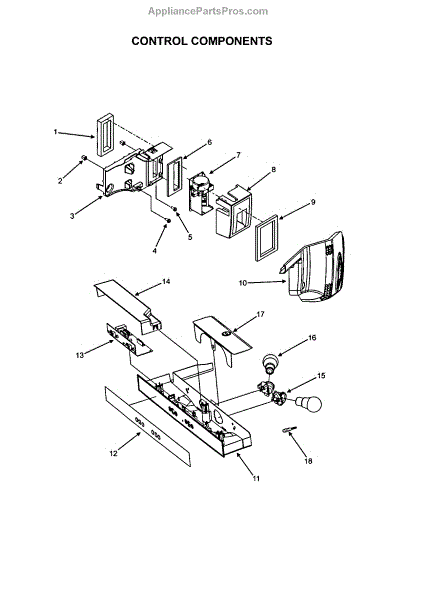

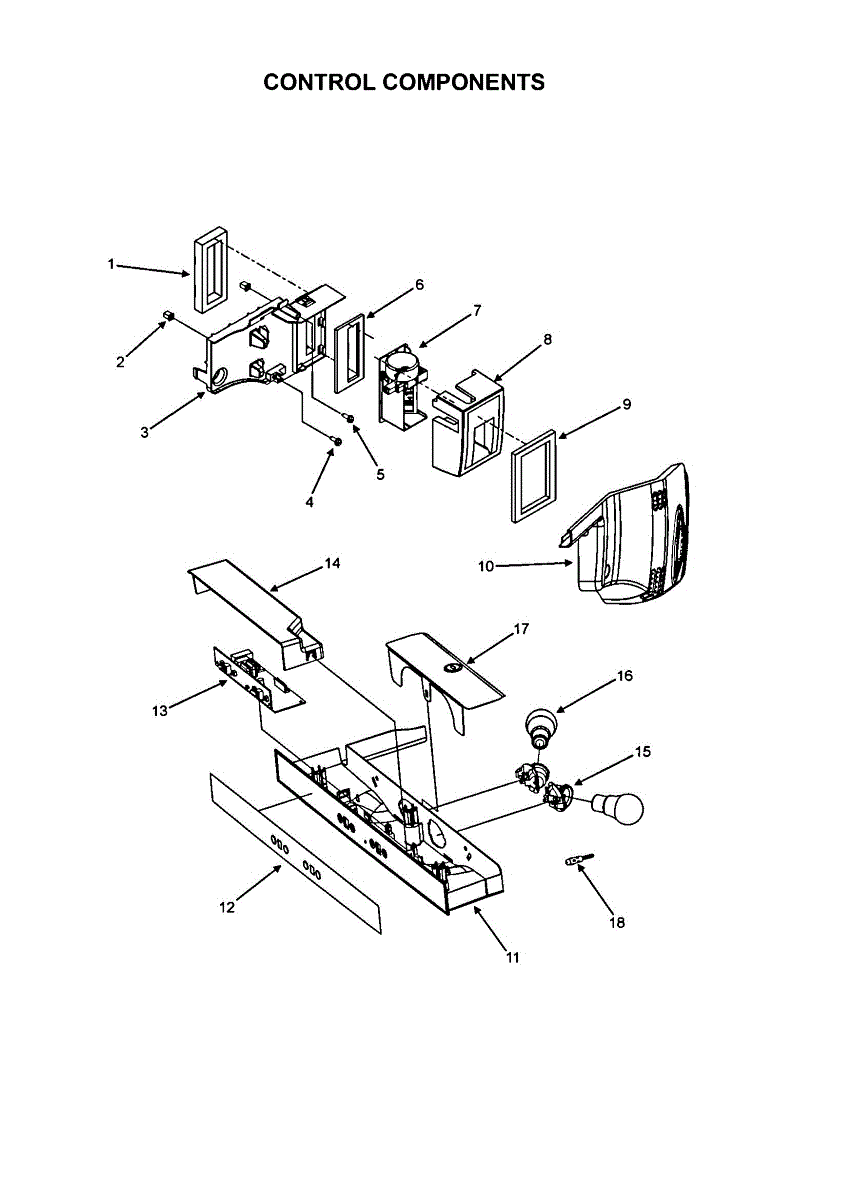

Parts for RX256DT7X1-22600-A: Control Assy Parts

A replacement control wiring harness that connects the main control board to sensors, switches and power, restoring reliable electrical connections and control signals for proper appliance operation. What it does

• Routes power and signal connections between the appliance control board and components.
• Re-establishes intermittent or failed control communication caused by damaged wiring or connectors.
• Stops symptoms such as no power to control, erratic control behavior, or components not responding.
• Matches OEM connector types and pin arrangements for a direct electrical replacement.

• One control wiring harness as shown.

• High-level replacement only; disconnect power at the breaker or unplug the appliance before starting.
• Verify correct connector orientation and fully seat all mating plugs; loose connections can cause faults.
• Inspect adjacent wiring and strain reliefs during install; replace or secure any damaged sections.
