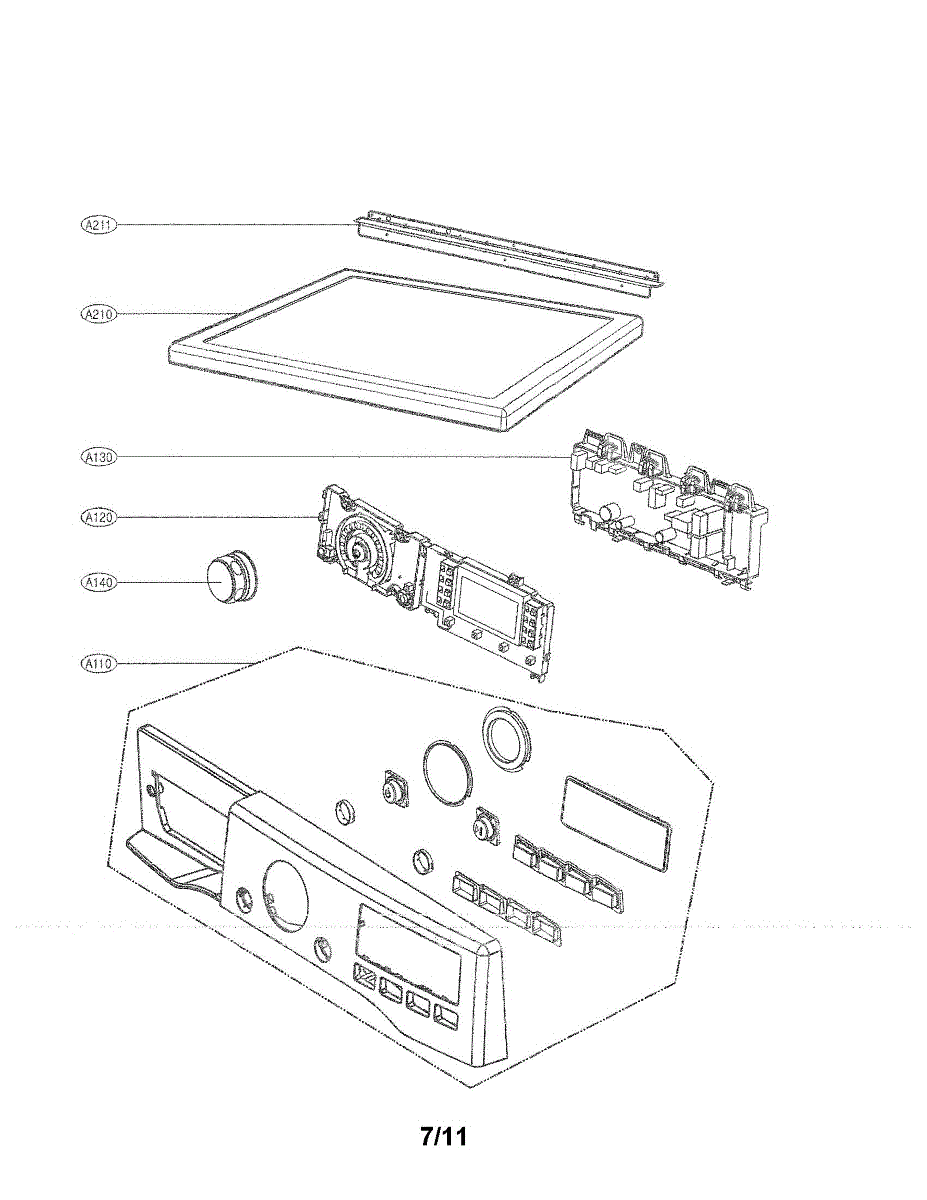

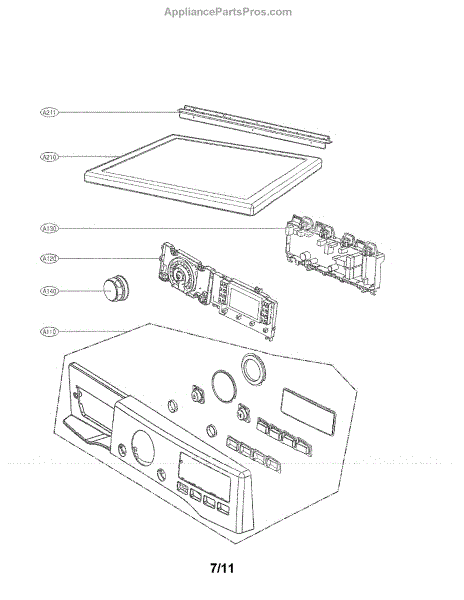

Parts for Lg DLEX2450R: Control Panel And Plate Assembly Parts

This is the appliance's main electronic control board (PCB assembly). It manages power distribution and operating logic for key functions. Replacing a failed board can restore normal operation when the unit is dead, unresponsive, or behaving erratically. What it does

• Routes power and coordinates major loads (motors, heaters, fans, valves) based on sensor feedback and user settings
• Controls timing and modes for normal operation
• Monitors safety circuits and error conditions
• Common symptoms of a failed board: no power/won't start, blank or dead display, won't complete cycles, intermittent shutdown or clicking, erratic operation, recurring error codes

What's included

• One main control board (PCB) assembly

Install notes

• Disconnect power before servicing; allow capacitors to discharge fully
• Use ESD protection and handle the board by the edges only
• Photograph connectors; move any jumpers, covers, or brackets from the old board to the new one as required
• Inspect wiring and connected components for shorts, heat damage, or moisture before powering up the new board

This replacement knob assembly restores tactile control for a range or cooktop control. It provides a secure grip and clear detent positions so you can set burner or surface settings reliably. What it does:

• Replaces a worn, cracked, or missing control knob to regain safe, predictable control
• Engages the shaft and detents so settings stay put during use
• Helps eliminate slipping or difficulty turning the control
• Matches original fit and function for direct replacement

• One knob assembly as shown

• Turn power/gas to the appliance off before servicing; follow appliance manufacturer safety instructions
• Remove the old knob by pulling straight off the control shaft; press the new knob onto the shaft until it seats
• Wear work gloves to protect hands from sharp edges during access

This top plate assembly restores the upper outer panel of the appliance, protecting internal components and improving the unit's appearance. It replaces a bent, dented, or corroded top outer panel to help maintain safe operation and proper airflow. What it does:

• Covers and protects interior components located under the appliance top
• Restores proper fit and exterior appearance after damage or corrosion
• Helps maintain correct airflow/venting pathways when installed correctly
• Reduces risk of debris entering internal parts and interfering with operation

• One top plate assembly

• Disconnect power (unplug or switch off breaker) before beginning any work
• Removal typically requires removing fasteners and lifting the old panel; keep track of screws and clips
• Avoid sharp edges on metal panels; wear gloves and eye protection
