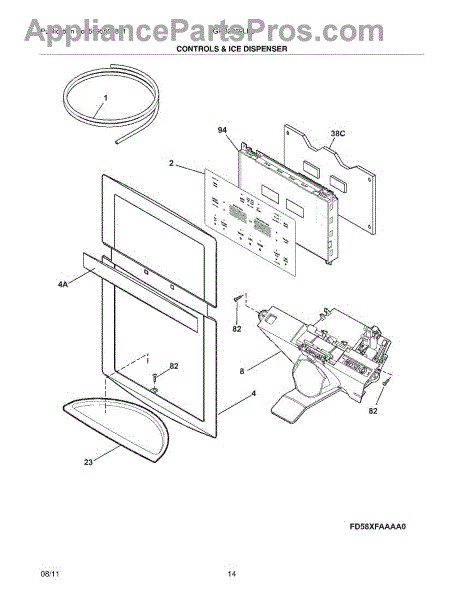

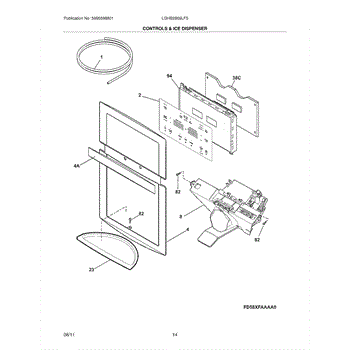

Parts for Frigidaire LGHB2869LF5: 13 - Controls & Ice Dispenser Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control module manages key refrigerator functions to keep the appliance operating correctly. Replacing a failed module can restore normal cooling performance and dispenser/lighting responses, helping prevent temperature swings and inconsistent operation.

• Regulates electronic functions commanded by the refrigerator's controls
• May resolve symptoms like intermittent cooling, unresponsive dispenser or lights, or random beeping/errors
• Helps restore stable temperatures and normal control responsiveness
• Designed to fit specific Frigidaire/Electrolux-built refrigerators

• Unplug refrigerator before service; wear ESD protection when handling electronics
• Access location varies by model; take photos of wiring/connectors for reference
• Transfer any mounting hardware from the original part if reused
• After installation, restore power and allow 24 hours for temperatures to stabilize

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

The Water Tube Kit is an OEM part for Frigidaire refrigerators. As an integral part of the ice maker system, the flexible tubing transports water from the external water supply to the internal ice maker assembly.

Symptoms of a bad water tube kit include:

• Slow or incomplete ice production when the ice maker is engaged
• Water leaks detected inside the refrigerator compartment
• Disconnection between the external water source and ice maker assembly

Causes may involve cracked or split tubing from repeated flexing during years of use, degraded connectors coming loose from vibrations, or punctures from impact or rodent damage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement chute guides output through the appliance's passageway so it reaches the correct area. Replacing a cracked or warped chute restores smooth, consistent flow and helps prevent blockages, spills, and misdirected dispensing.

• Directs flow through the intended path between components
• Helps maintain alignment and sealing with adjoining parts
• Restores consistent dispensing/throughput when the original is damaged
• Common symptoms: visible cracks, obstructions, misalignment, or output missing the opening

• Disconnect power; turn off water supply if applicable
• Access the chute by removing the relevant cover or panel
• Transfer any reusable gasket/seal or mounting hardware from the old chute
• Seat and align the new chute fully; reassemble and test operation
