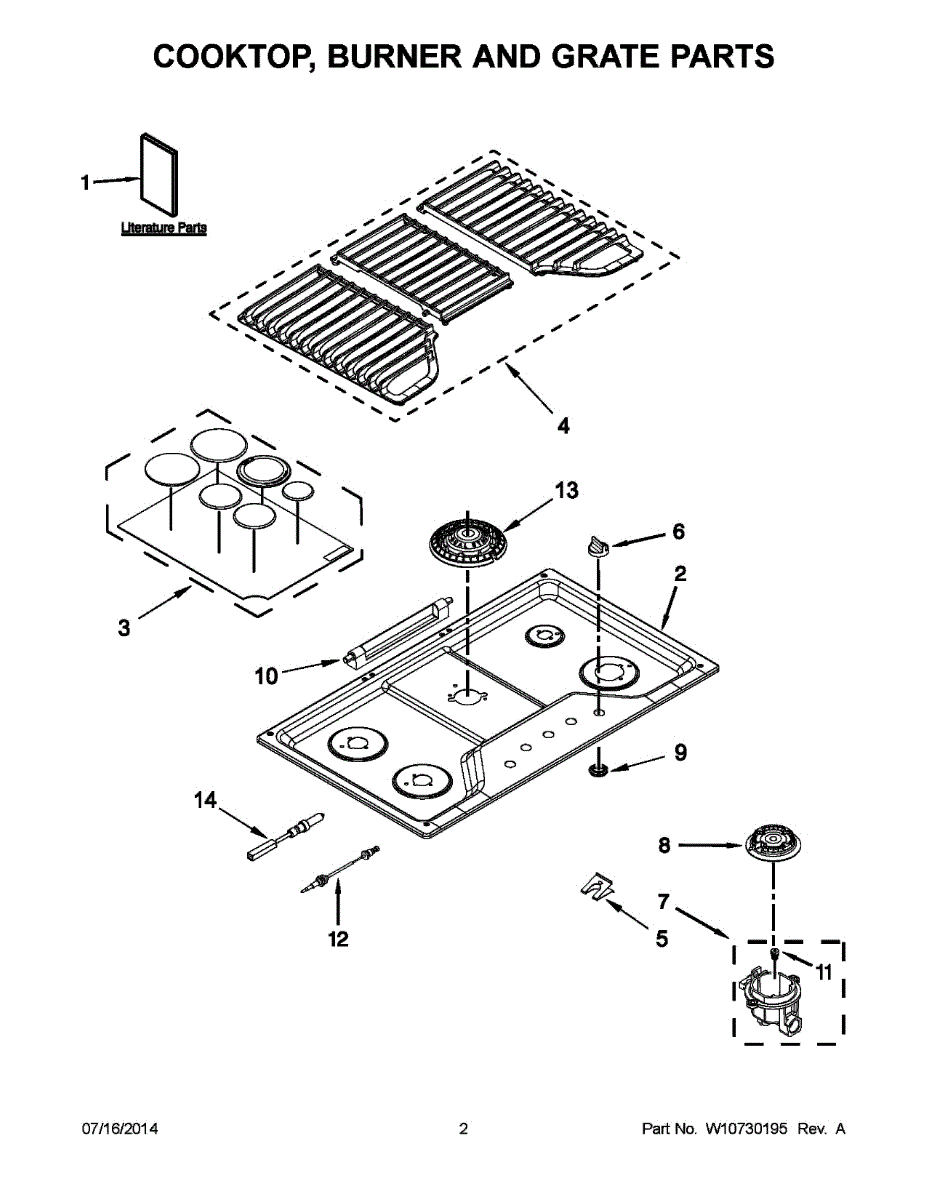

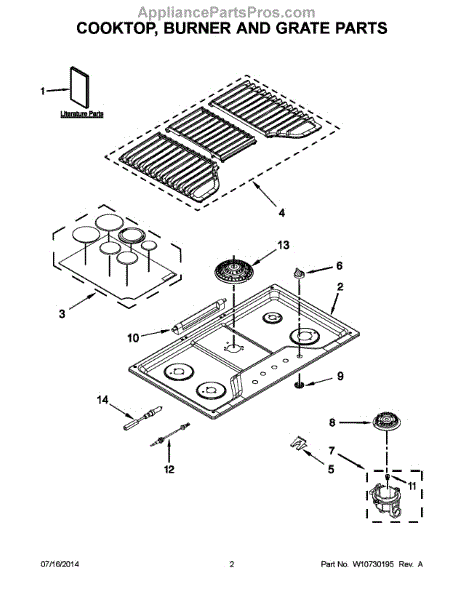

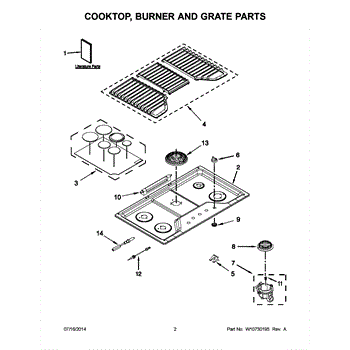

Parts for Whirlpool WCG97US6DS00: 02 - Cooktop, Burner And Grate Parts

The Cooktop is an OEM part for Whirlpool cooktops. It provides a smooth glass surface with various high-performance gas burners below for searing, simmering, and cooking meals.

Causes of a bad cooktop can include cracked or broken grates from pots and pans, damaged valves or knobs from overheating, or dirt buildup hindering flame adjustment.

Symptoms of a bad cooktop include:

• Burners not igniting or flames not adjusting as desired
• Excessive heating around knobs or edges of grates
• Gas leaks around or under components
• Dirt or grime hindering the visibility of flame

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This burner cap fits over the gas burner head to spread the flame evenly and shield the head from spills. Replacing a worn or missing cap restores proper ignition, consistent flame shape, and a clean, finished look on the cooktop.

• Distributes flame for even heating across the pan
• Helps protect burner head ports from boilovers and debris
• Supports reliable ignition by correctly channeling the flame
• Common symptoms: uneven or yellow flames, slow lighting or no ignition, chipped/warped cap, or a cap that won't sit level

• Allow all burners to cool completely; ensure controls are OFF
• Match the cap to the correct burner size/orientation if your model uses different sizes
• Set the cap centered on the burner head so it sits flush and stable—do not force
• Test the burner and reseat the cap if the flame is uneven or lifts

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

The Knob is an OEM part for Whirlpool cooktops. It allows you to control various settings such as temperature, cooking mode, and timer functions by turning the corresponding knobs on the control panel. With a stem length of 3/8", this control knob is designed for ease of use and a secure fit.

Over time, the knob can become worn or damaged due to frequent use, accidental impacts, or exposure to heat. If the knob breaks or becomes loose, it can make it difficult or impossible to adjust the oven or range settings accurately.

Symptoms of a bad knob include:

• The knob becoming loose or wobbly
• Cracks or breaks in the knob
• Difficulty in turning the knob or it not engaging properly with the control shaft
• Inability to control the cooktop settings

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Holder ORF mounting clip secures small appliance components to reduce movement and prevent rattling, helping panels and assemblies stay properly aligned for reliable operation. What it does

• Secures a component or panel to its mounting point to prevent shifting and vibration
• Helps stop rattling or intermittent contact caused by a loose fastener
• Restores proper alignment for covers, trim pieces, or internal brackets
• Supports reliable operation by keeping parts in their intended position

• Disconnect power to the appliance before beginning any repair.
• Remove surrounding trim or access panels to reach the clip; common tools include a screwdriver or nut driver.
• Replace only the damaged or missing clip; keep fasteners oriented as originally installed.

Auxiliary burner head that distributes flame on the small simmer burner of gas cooktops and ranges. Replaces a warped, clogged, or damaged head to restore reliable ignition, correct flame pattern, and consistent low-heat performance.

• Directs the gas/air mix through flame ports for even simmer heat
• Helps restore proper ignition when the old head is fouled or damaged
• Can help with delayed ignition or repeated clicking due to misaligned/blocked ports

• Shut off gas supply and disconnect power; allow the surface to cool completely
• Remove grate and burner cap; lift off the old head
• Clean the burner base and align the new head with the orifice and igniter; seat flat
• Reinstall the cap and grate; restore gas/power and verify flame quality and ignition

This is the gas cooktop/range rapid burner head. It directs gas and airflow to create an even, reliable flame on the large "rapid" burner, helping your cooktop heat quickly and cook evenly.

• Distributes gas through calibrated ports to form a stable flame on the rapid burner
• Can help resolve weak or uneven flames, delayed ignition, or frequent burner re-lighting
• Replacing a damaged, clogged, or warped head can restore proper burner performance
• Designed to fit the rapid (largest) burner position on compatible units

• Disconnect power and shut off gas before servicing
• Remove the burner cap, lift off the old head, and clean the mounting surface
• Align the new head with the orifice and locating tabs; seat it flat and secure any screws if present
• Reassemble, restore gas/power, and test for proper ignition and flame

This burner head sits atop the semi-rapid gas burner on the cooktop, shaping the flame and distributing heat evenly to your cookware for reliable day-to-day cooking performance.

• Directs gas and air mixture to create a stable, even flame on the semi-rapid burner
• Can help address uneven flames, poor ignition, or weak heating at that burner position
• Restores proper heat distribution when the original head is clogged, warped, or damaged
• Designed to fit the semi-rapid burner location as specified by the manufacturer

• Disconnect power and shut off gas before servicing
• Ensure the burner area is clean; remove debris that could affect flame pattern
• Align the ports and locating features carefully; do not overtighten any fasteners
• After installation, check for proper ignition and a consistent blue flame

The Grommet is an OEM part for Whirlpool gas cooktops. It forms a protective barrier and seal where wiring or mounting bolts pass through ventilation cutouts.

Causes of a bad grommet typically include degradation of the rubber material over time due to heat exposure during cooking. Physical stress from repeated installation/removal can also crack or loosen the seal.

Symptoms of a bad grommet include:

• Air leaks appearing around wiring/bolt openings
• Drafts disturbing burner or element temperatures
• Noise from loose fixtures rattling
• Risk of sparks near exposed connections

Replacing with an OEM grommet restores the protective seal while blending seamlessly with range aesthetics. Compatible brands include KitchenAid, Jenn-Air, and select Kenmore cooktop models.

The Cooktop Hinge is an OEM part for Whirlpool gas cooktops. It works to securely attach the cooktop while allowing smooth lifting for easy access during cooking or cleaning.

Symptoms of a bad cooktop hinge include:

• The cooktop not sitting flush or lying flat
• Difficulty lifting or lowering the cooktop
• Gaps appearing in the sealing surface
• Excessive noise or vibration

Causes of failure can be normal wear and tear over extended use. Damage from heavy pots or pans dropped could also weaken the hinge. Over time, loosened screws or stripped hinge mounting points deteriorate performance.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This orifice spud controls the gas flow to a burner, restoring proper flame size for reliable ignition and even cooking. It's the small metering piece that helps your range or oven run safely and efficiently. What it does:

• Regulates gas flow into the burner to achieve the correct flame size
• Helps ensure consistent heating and stable burner ignition
• Can address weak or uneven flames and burners that won't light properly
• Restores intended burner performance after wear or clogging

• One orifice spud

• Turn off the gas supply and disconnect power before servicing any gas appliance
• Replace only with the exact orifice specified for your model to ensure safe operation
• Use appropriate tools and avoid overtightening; check for gas leaks after installation

This orifice spud secures and aligns the gas orifice at the burner, ensuring a consistent flame for safe cooking. Replacing a worn or damaged spud restores proper burner performance and reliable ignition. What it does:

• Holds the orifice in place at the burner to maintain correct gas flow and flame shape
• Helps prevent uneven or weak flames and poor heat distribution
• Can resolve ignition issues or burners that will not light cleanly
• Works with the burner assembly to stabilize the burner head

• Shut off the appliance gas supply before starting any repair
• Basic hand tools may be required; follow the appliance service manual for disassembly
• Inspect surrounding burner parts and gaskets; replace if damaged

This orifice spud is the small gas-fitting that directs fuel from the valve to a burner so the burner can ignite and hold a steady flame. Replacing a worn or blocked spud restores proper gas flow to the burner. What it does:

• Guides and meters gas from the valve into the burner assembly for consistent ignition.
• Helps maintain correct flame shape and strength at the burner.
• Commonly linked to symptoms like weak or uneven flames, burner that won't light, or burners that sputter.
• Works as a direct replacement for the OEM orifice spud designated for the appliance.

• One orifice spud (1 piece).

• Turn off gas supply and disconnect power before servicing.
• Only use the correct orifice for your appliance and fuel type — do not modify the part.
• After installation, check all fittings for leaks with a soap-and-water solution or approved gas leak detector.
• Follow manufacturer instructions and local codes when reinstalling components.

Orifice spud is a small gas valve fitting that secures the orifice to the burner assembly, helping direct fuel to the burner for consistent ignition and stable flames. What it does:

• Secures the orifice to the gas valve/burner assembly so fuel is delivered correctly.
• Directs gas flow from the valve through the orifice into the burner port.
• Can cause burner ignition problems or uneven/weak flames when damaged or loose.
• Associated with reduced burner performance or a noticeable gas odor when connections are not tight.

• Turn off gas supply and electrical power before servicing any gas components.
• Replace only with the exact OEM part; tighten and seat per manufacturer instructions.
• Follow all local codes and safety practices when working on gas appliances.

The surface igniter is an OEM part for Whirlpool ranges and cooktops. It is responsible for generating the heat needed for gas burners to ignite. The igniter contains a small ceramic element inside that produces an electric spark whenever a burner is turned on.

Symptoms of a bad surface igniter include:

• Gas burners that fail to light or ignite intermittently
• Dim or weak burner flames
• Rattling or buzzing sounds coming from below the cooktop

Causes of failure are generally normal wear and tear over many burner ignitions. Mineral buildup or food debris could also potentially obstruct the electric spark.

This replacement igniter is also compatible with ranges, cooktops, and built-in ovens from Maytag, Jenn-Air, Amana, Magic Chef, Admiral, and several Kenmore models.

Surface ignitor restores the ignition spark to a gas range surface burner so the burner can light reliably. Use this direct replacement when a burner produces weak sparks or won't ignite. What it does:

• Generates the spark that ignites gas at a surface/burner assembly.
• Replaces a cracked, worn or non-sparking electrode to restore ignition.
• Commonly used when a burner clicks but does not light or produces intermittent sparks.
• Works as the single electrode component in a surface burner ignition assembly.

• Turn off electrical power and gas supply before service.
• Handle the ceramic tip carefully — avoid touching or bending the electrode.
• Ensure proper connection of the ignitor's wire and correct seating in the burner assembly.

This replacement surface burner head for gas ranges/cooktops channels fuel from the orifice into a controlled flame ring. Replace a worn or clogged head to restore reliable ignition, even flame distribution, and consistent heat control.

• Distributes gas through precision ports to create an even flame ring
• Works with the spark igniter/electrode for dependable lighting
• Supports the burner cap and stabilizes the cooking flame
• Common symptoms of a bad/clogged head: weak or uneven flames, yellow tipping, delayed ignition, or clicking without lighting

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Remove grate and burner cap; if your model uses mounting screws, remove them and lift off the old head
• Clean the orifice holder area; ensure burner ports are clear before installation
• Align the new head with the orifice and igniter, reinstall hardware and cap, then test for proper ignition and an even flame

The Spark Electrode is an OEM component specifically designed for Whirlpool gas ranges and cooktops. It is responsible for generating the spark necessary to ignite the gas burners via the ignition system.

Symptoms of a bad spark electrode include:

• Inability to light one or more gas burners
• Intermittent lighting or flames that keep going out
• Dim or irregular burner flames

Causes of a bad spark electrode may be a failure due to age or accumulation of debris that prevents the critical spark from occurring.

This OEM Whirlpool part is compatible with additional brands including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
