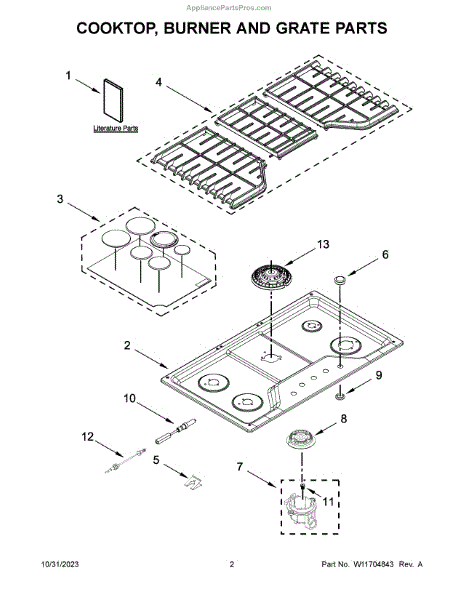

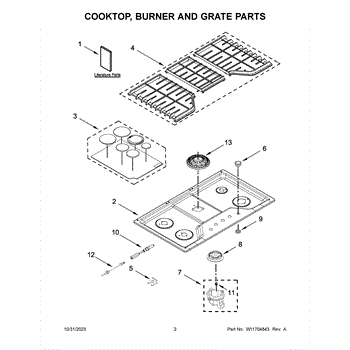

Parts for Kitchenaid KCGS356ESS06: Cooktop, Burner And Grate Parts

This burner cap fits over the gas burner head to spread the flame evenly and shield the head from spills. Replacing a worn or missing cap restores proper ignition, consistent flame shape, and a clean, finished look on the cooktop.

• Distributes flame for even heating across the pan
• Helps protect burner head ports from boilovers and debris
• Supports reliable ignition by correctly channeling the flame
• Common symptoms: uneven or yellow flames, slow lighting or no ignition, chipped/warped cap, or a cap that won't sit level

• Allow all burners to cool completely; ensure controls are OFF
• Match the cap to the correct burner size/orientation if your model uses different sizes
• Set the cap centered on the burner head so it sits flush and stable—do not force
• Test the burner and reseat the cap if the flame is uneven or lifts

This grate kit replaces damaged or missing cooktop grates to restore a stable cooking surface and proper cookware support. Designed to fit and align with the range burners for safer, more even heating. What it does

• Replaces cracked, chipped, warped, or missing grates that prevent cookware from sitting level
• Restores proper burner alignment and stability for pots and pans
• Helps reduce burner interference caused by damaged grate surfaces
• Matches OEM fit and mounting points for straightforward replacement

• Grate kit as shown

• Turn off the appliance and ensure the cooktop and burners are completely cool before starting
• Remove existing grates and clean the cooktop before fitting the new parts
• Set grates into place by aligning with burner supports; no special tools typically required

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

This genuine replacement control knob attaches to the control shaft on your appliance so you can turn and set functions as intended. Replace a cracked, stripped, or missing knob to restore smooth operation and a clean, factory look.

• Couples to the control stem to select settings and adjust levels
• Restores proper grip and turning action when the original is worn or broken
• Common symptoms it can address: knob cracked or missing, loose or slipping, won't turn the control, stripped insert
• Note: If the underlying control stem/shaft is damaged, additional parts may be required

• Disconnect power and allow the appliance to cool before servicing
• Pull the old knob straight off the stem; avoid prying that could damage the shaft
• Align the new knob with the flat/indicator on the stem and press firmly into place
• Verify smooth operation and correct pointer alignment before use

This Holder ORF mounting clip secures small appliance components to reduce movement and prevent rattling, helping panels and assemblies stay properly aligned for reliable operation. What it does

• Secures a component or panel to its mounting point to prevent shifting and vibration
• Helps stop rattling or intermittent contact caused by a loose fastener
• Restores proper alignment for covers, trim pieces, or internal brackets
• Supports reliable operation by keeping parts in their intended position

• Disconnect power to the appliance before beginning any repair.
• Remove surrounding trim or access panels to reach the clip; common tools include a screwdriver or nut driver.
• Replace only the damaged or missing clip; keep fasteners oriented as originally installed.

This is the gas cooktop/range rapid burner head. It directs gas and airflow to create an even, reliable flame on the large "rapid" burner, helping your cooktop heat quickly and cook evenly.

• Distributes gas through calibrated ports to form a stable flame on the rapid burner
• Can help resolve weak or uneven flames, delayed ignition, or frequent burner re-lighting
• Replacing a damaged, clogged, or warped head can restore proper burner performance
• Designed to fit the rapid (largest) burner position on compatible units

• Disconnect power and shut off gas before servicing
• Remove the burner cap, lift off the old head, and clean the mounting surface
• Align the new head with the orifice and locating tabs; seat it flat and secure any screws if present
• Reassemble, restore gas/power, and test for proper ignition and flame

Auxiliary burner head that distributes flame on the small simmer burner of gas cooktops and ranges. Replaces a warped, clogged, or damaged head to restore reliable ignition, correct flame pattern, and consistent low-heat performance.

• Directs the gas/air mix through flame ports for even simmer heat
• Helps restore proper ignition when the old head is fouled or damaged
• Can help with delayed ignition or repeated clicking due to misaligned/blocked ports

• Shut off gas supply and disconnect power; allow the surface to cool completely
• Remove grate and burner cap; lift off the old head
• Clean the burner base and align the new head with the orifice and igniter; seat flat
• Reinstall the cap and grate; restore gas/power and verify flame quality and ignition

This burner head sits atop the semi-rapid gas burner on the cooktop, shaping the flame and distributing heat evenly to your cookware for reliable day-to-day cooking performance.

• Directs gas and air mixture to create a stable, even flame on the semi-rapid burner
• Can help address uneven flames, poor ignition, or weak heating at that burner position
• Restores proper heat distribution when the original head is clogged, warped, or damaged
• Designed to fit the semi-rapid burner location as specified by the manufacturer

• Disconnect power and shut off gas before servicing
• Ensure the burner area is clean; remove debris that could affect flame pattern
• Align the ports and locating features carefully; do not overtighten any fasteners
• After installation, check for proper ignition and a consistent blue flame

The Grommet is an OEM part for Whirlpool gas cooktops. It forms a protective barrier and seal where wiring or mounting bolts pass through ventilation cutouts.

Causes of a bad grommet typically include degradation of the rubber material over time due to heat exposure during cooking. Physical stress from repeated installation/removal can also crack or loosen the seal.

Symptoms of a bad grommet include:

• Air leaks appearing around wiring/bolt openings
• Drafts disturbing burner or element temperatures
• Noise from loose fixtures rattling
• Risk of sparks near exposed connections

Replacing with an OEM grommet restores the protective seal while blending seamlessly with range aesthetics. Compatible brands include KitchenAid, Jenn-Air, and select Kenmore cooktop models.

The Spark Electrode is an OEM component specifically designed for Whirlpool gas ranges and cooktops. It is responsible for generating the spark necessary to ignite the gas burners via the ignition system.

Symptoms of a bad spark electrode include:

• Inability to light one or more gas burners
• Intermittent lighting or flames that keep going out
• Dim or irregular burner flames

Causes of a bad spark electrode may be a failure due to age or accumulation of debris that prevents the critical spark from occurring.

This OEM Whirlpool part is compatible with additional brands including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This orifice spud controls the gas flow to a burner, restoring proper flame size for reliable ignition and even cooking. It's the small metering piece that helps your range or oven run safely and efficiently. What it does:

• Regulates gas flow into the burner to achieve the correct flame size
• Helps ensure consistent heating and stable burner ignition
• Can address weak or uneven flames and burners that won't light properly
• Restores intended burner performance after wear or clogging

• One orifice spud

• Turn off the gas supply and disconnect power before servicing any gas appliance
• Replace only with the exact orifice specified for your model to ensure safe operation
• Use appropriate tools and avoid overtightening; check for gas leaks after installation

This orifice spud controls gas flow to the burner for consistent ignition and steady flame, helping your range or oven heat properly. It's a direct-fit replacement when the burner flame is weak or uneven. What it does:

• Meters gas from the manifold to the burner so the flame size and heat are correct
• Restores stable, even flame if the current orifice is clogged or damaged
• Helps eliminate weak, sputtering, or yellowish flames caused by a faulty spud
• Works with the burner assembly to maintain normal oven/range heating performance

• Turn off the gas supply and unplug the appliance before starting work
• Remove the burner and manifold access panel to access the spud
• Use the correct-size wrench; avoid overtightening to prevent damage
• Check all connections for leaks after reinstalling.

This orifice spud secures and aligns the gas orifice at the burner, ensuring a consistent flame for safe cooking. Replacing a worn or damaged spud restores proper burner performance and reliable ignition. What it does:

• Holds the orifice in place at the burner to maintain correct gas flow and flame shape
• Helps prevent uneven or weak flames and poor heat distribution
• Can resolve ignition issues or burners that will not light cleanly
• Works with the burner assembly to stabilize the burner head

• Shut off the appliance gas supply before starting any repair
• Basic hand tools may be required; follow the appliance service manual for disassembly
• Inspect surrounding burner parts and gaskets; replace if damaged

This orifice spud is the small gas-fitting that directs fuel from the valve to a burner so the burner can ignite and hold a steady flame. Replacing a worn or blocked spud restores proper gas flow to the burner. What it does:

• Guides and meters gas from the valve into the burner assembly for consistent ignition.
• Helps maintain correct flame shape and strength at the burner.
• Commonly linked to symptoms like weak or uneven flames, burner that won't light, or burners that sputter.
• Works as a direct replacement for the OEM orifice spud designated for the appliance.

• One orifice spud (1 piece).

• Turn off gas supply and disconnect power before servicing.
• Only use the correct orifice for your appliance and fuel type — do not modify the part.
• After installation, check all fittings for leaks with a soap-and-water solution or approved gas leak detector.
• Follow manufacturer instructions and local codes when reinstalling components.

Orifice spud is a small gas valve fitting that secures the orifice to the burner assembly, helping direct fuel to the burner for consistent ignition and stable flames. What it does:

• Secures the orifice to the gas valve/burner assembly so fuel is delivered correctly.
• Directs gas flow from the valve through the orifice into the burner port.
• Can cause burner ignition problems or uneven/weak flames when damaged or loose.
• Associated with reduced burner performance or a noticeable gas odor when connections are not tight.

• Turn off gas supply and electrical power before servicing any gas components.
• Replace only with the exact OEM part; tighten and seat per manufacturer instructions.
• Follow all local codes and safety practices when working on gas appliances.

This replacement surface burner head for gas ranges/cooktops channels fuel from the orifice into a controlled flame ring. Replace a worn or clogged head to restore reliable ignition, even flame distribution, and consistent heat control.

• Distributes gas through precision ports to create an even flame ring
• Works with the spark igniter/electrode for dependable lighting
• Supports the burner cap and stabilizes the cooking flame
• Common symptoms of a bad/clogged head: weak or uneven flames, yellow tipping, delayed ignition, or clicking without lighting

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Remove grate and burner cap; if your model uses mounting screws, remove them and lift off the old head
• Clean the orifice holder area; ensure burner ports are clear before installation
• Align the new head with the orifice and igniter, reinstall hardware and cap, then test for proper ignition and an even flame

This orifice spud meters gas to the burner for a consistent, correctly sized flame. Replace a clogged or damaged spud to restore proper burner output and reliable ignition on your gas cooktop or range.

• Controls and meters gas flow through a calibrated opening to the burner
• Helps ensure proper flame size and color when matched to the correct burner and fuel type
• Common symptoms of a failing or clogged spud: weak or uneven flame, yellow tipping, or delayed ignition
• Damaged threads or a stripped orifice can prevent correct sealing and fuel delivery

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the orifice holder/manifold for the affected burner; remove the old spud with an appropriate orifice wrench or nut driver
• Start the new spud by hand to avoid cross-threading; tighten snugly—do not overtighten brass threads
• Restore gas and check for leaks with an approved leak-detection solution; verify flame quality and adjust per the service manual

This tie-down bracket secures the appliance during installation so it stays firmly in place. It helps prevent shifting, vibration, or lifting for a solid, stable fit and reliable operation over time.

• Anchors the unit to its opening as designed, helping keep it stable
• Helps reduce movement, vibration, and rattling during use
• Replaces a bent, damaged, or missing bracket to restore a secure install
• Common signs: appliance shifts or rocks, visible gaps/misalignment, loose fit

• Disconnect power; shut off gas before servicing
• Install in the location/orientation specified by your product's installation instructions
• Reuse the model-specific mounting hardware or replace per your manual
• Tighten hardware securely but do not overtighten to avoid damage

This adhesive-backed foam tape seals small gaps and cushions mating parts inside your appliance. Replacing worn or missing foam helps reduce noise and vibration while preventing air leaks and condensation that can lead to performance issues.

• Seals joints and gaps to help maintain proper airflow and temperature control
• Cushions panels and components to reduce rattles, buzzing, and vibration
• Helps prevent moisture intrusion that can cause condensation or frost
• Restores secure fit where original foam has compressed, torn, or fallen off

• Disconnect power (and water supply if applicable) before starting
• Remove all old foam/adhesive and clean surfaces; allow to dry fully
• Measure, cut to length, peel backing, and apply without stretching the tape
• Press firmly along the length for good adhesion; keep clear of moving parts and vents
