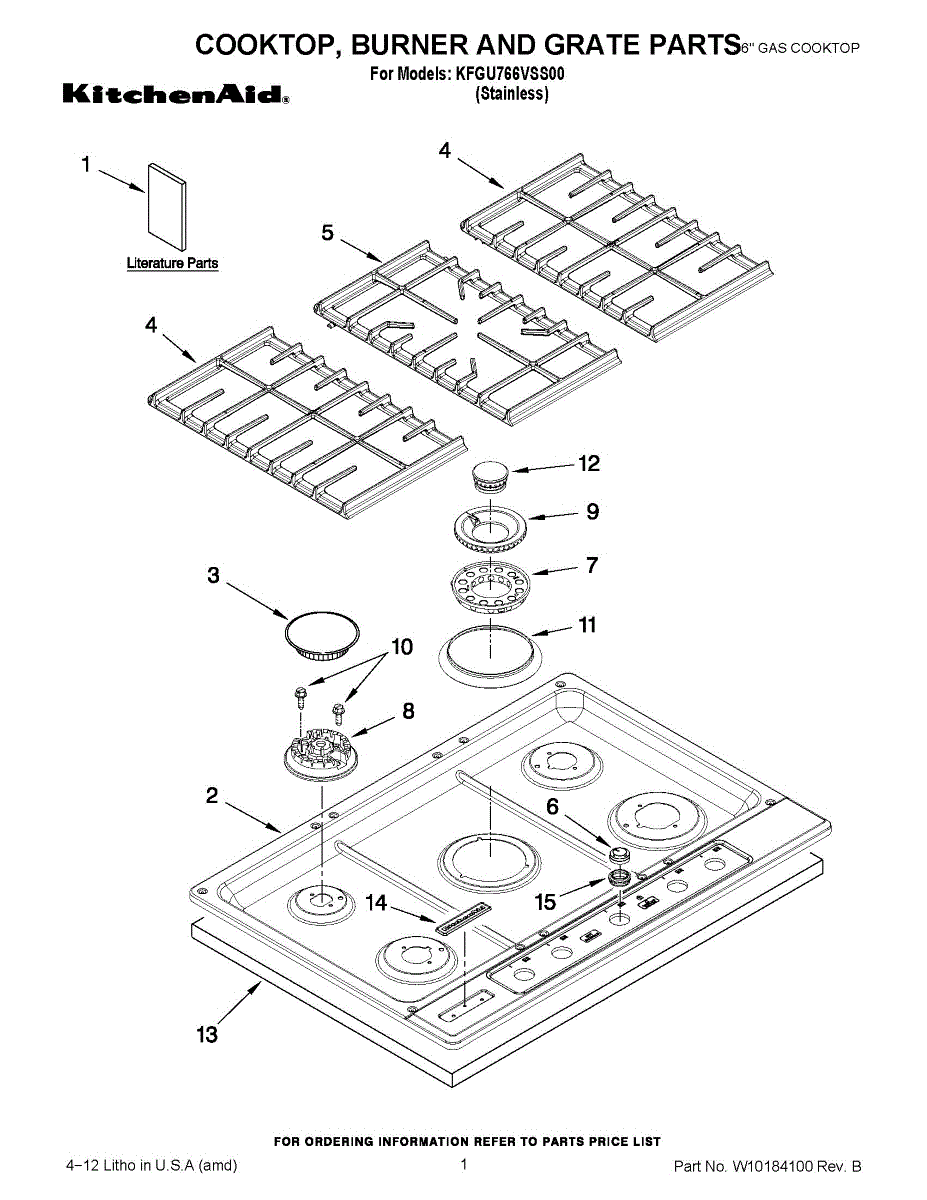

Parts for Kitchenaid KFGU766VSS00: 01 - Cooktop, Burner And Grate Parts

This semi-rapid burner cap fits over the burner head to help shape and stabilize the gas flame for consistent cooking performance. It restores proper flame pattern and protects the burner from spills and debris. What it does:

• Centers and shapes the burner flame for even heating
• Helps prevent flame lifting and uneven or noisy flames
• Protects burner head from food spills and corrosion
• Useful when a cracked, warped or missing cap causes poor burner performance

• Turn off the appliance and allow the burner to cool completely before servicing
• Remove burner grate and lift off the old cap; set the replacement cap into place aligned with the burner head
• Do not force into position—ensure proper seating for correct flame pattern

This replacement burner cap fits the rapid/high burner and restores proper flame shape and heat distribution for gas cooktops. It helps you get even cooking and reliable ignition when the original cap is damaged or missing. What it does:

• Sits atop the rapid (high) burner to direct flame and protect the burner head
• Promotes even flame pattern for consistent cooking performance
• Can reduce flickering or uneven flames caused by a warped or cracked cap
• Helps prevent burner head damage from spills and overheating

• Allow the cooktop and burners to cool completely before handling.
• Make sure the burner head is clean and properly seated; place the cap onto the burner so it sits flat and centered.
• No special tools are typically required; if a cap is damaged, remove and replace rather than forcing into place.

This auxiliary burner cap replaces a worn or damaged cap on gas cooktop/range auxiliary burners to help restore proper flame shape and heat distribution. Designed for a direct fit on compatible OEM burner bases. What it does:

• Covers the auxiliary burner head to direct flame and protect the burner ports
• Helps improve even heating and consistent flame pattern when properly seated
• Commonly replaced when the cap is cracked, warped, or shows heavy corrosion
• Fits onto the burner base; does not include the burner base, igniter, or grates

• Allow the cooktop to cool and disconnect power/gas per appliance safety instructions before servicing
• Remove grates and lift off the old cap; clean burner base of debris before installing the new cap
• Align and seat the cap firmly on the burner base so it sits flat and centered

This replacement control knob restores a worn, cracked or missing stove/dryer control interface so you can easily select heat and cycle settings. Durable plastic construction and simple push-on fit make it a quick fix. What it does:

• Replaces a damaged or missing control knob so the appliance dial turns smoothly
• Provides a clear grip for selecting temperature, cycle or timer settings
• Stops slipping, cracking or broken pointer issues that prevent proper selection
• Fits the original control shaft to restore normal user control

• One control knob

• Disconnect power to the appliance before servicing electrical or heating controls
• Pull the old knob straight off the control shaft; press the new knob firmly into place
• If the knob resists or the shaft is damaged, inspect the control shaft and replace any worn components
• No calibration required after installation; test operation at low power first

This burner control knob replaces a worn or broken knob on your range or cooktop. Made for the standard burner position, it restores smooth on/off and heat-level adjustment while keeping the control panel looking clean and complete.

• Attaches to the burner/element control shaft to turn the burner on/off and adjust heat
• For the standard burner position; other burner types may use different knobs
• Common fix for knobs that are cracked, stripped, loose, or missing
• Restores a positive feel and clear setting selection

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the old knob straight off the control shaft; do not bend or twist the shaft
• Align the new knob with the shaft flat and press straight on until fully seated
• Verify smooth operation through all settings before use

Auxiliary burner head that distributes flame on the small simmer burner of gas cooktops and ranges. Replaces a warped, clogged, or damaged head to restore reliable ignition, correct flame pattern, and consistent low-heat performance.

• Directs the gas/air mix through flame ports for even simmer heat
• Helps restore proper ignition when the old head is fouled or damaged
• Can help with delayed ignition or repeated clicking due to misaligned/blocked ports

• Shut off gas supply and disconnect power; allow the surface to cool completely
• Remove grate and burner cap; lift off the old head
• Clean the burner base and align the new head with the orifice and igniter; seat flat
• Reinstall the cap and grate; restore gas/power and verify flame quality and ignition

This is the gas cooktop/range rapid burner head. It directs gas and airflow to create an even, reliable flame on the large "rapid" burner, helping your cooktop heat quickly and cook evenly.

• Distributes gas through calibrated ports to form a stable flame on the rapid burner
• Can help resolve weak or uneven flames, delayed ignition, or frequent burner re-lighting
• Replacing a damaged, clogged, or warped head can restore proper burner performance
• Designed to fit the rapid (largest) burner position on compatible units

• Disconnect power and shut off gas before servicing
• Remove the burner cap, lift off the old head, and clean the mounting surface
• Align the new head with the orifice and locating tabs; seat it flat and secure any screws if present
• Reassemble, restore gas/power, and test for proper ignition and flame

This burner head sits atop the semi-rapid gas burner on the cooktop, shaping the flame and distributing heat evenly to your cookware for reliable day-to-day cooking performance.

• Directs gas and air mixture to create a stable, even flame on the semi-rapid burner
• Can help address uneven flames, poor ignition, or weak heating at that burner position
• Restores proper heat distribution when the original head is clogged, warped, or damaged
• Designed to fit the semi-rapid burner location as specified by the manufacturer

• Disconnect power and shut off gas before servicing
• Ensure the burner area is clean; remove debris that could affect flame pattern
• Align the ports and locating features carefully; do not overtighten any fasteners
• After installation, check for proper ignition and a consistent blue flame

This M4-0.7 screw is a small metric fastener used to secure panels, brackets, and internal components on compatible Whirlpool appliances. Replace stripped or missing screws to restore secure mounting and reduce rattles. What it does:

• Secures trim, access panels, brackets or small assemblies in place.
• Helps stop loose or vibrating panels that can cause noise or misalignment.
• Replaces missing, stripped, or damaged fasteners to restore proper fit.
• Compatible where an M4 diameter, 0.7mm thread-pitch screw is specified.

• Always unplug the appliance or shut off power at the breaker before servicing.
• Use the correct sized screwdriver or bit to avoid cam-out or head damage.
• Do not overtighten—tighten until snug and parts are properly seated.
• Keep removed hardware organized so replacements go back in the original locations.

This inner burner spreader directs gas for the inner flame on gas cooktops, helping restore even heating and consistent burner performance. Replace damaged or warped spreaders to improve flame pattern and cooking results. What it does:

• Directs gas flow from the burner to form the inner flame for proper heat distribution
• Helps maintain an even, stable flame across the cooking surface
• Commonly replaced when flame is weak, uneven, yellowing, or when the burner won't light consistently
• Fits into the burner assembly and works with the burner cap and base to create the correct flame pattern

• Includes: 1 inner burner spreader

• Turn off the gas supply and power to the appliance before starting any service
• Ensure the spreader seats flat on the burner base and aligns with the burner ports
• Inspect other burner components (cap, base, or igniter) and clean debris before reassembly

Rubber grommet that cushions and protects wiring, hoses or components where they pass through metal openings. Helps reduce chafing, vibration and noise while restoring a secure, flush fit when a worn grommet is replaced. What it does

• Protects wires, cables or hoses from rubbing against sharp metal edges.
• Cushions and isolates components to reduce rattles and vibration noise.
• Helps keep openings sealed from debris and limits movement of the routed part.
• Common symptoms that indicate replacement: torn, cracked or missing grommet; visible chafing on wiring; rubbing or new rattling sounds.

• Disconnect power (and water, if applicable) before accessing the repair area.
• Remove any panels or retainers that block the grommet location; note fastener placement.
• Press the grommet into the opening until seated flush; a small amount of soapy water can ease installation—avoid sharp tools that can tear the part.
• Inspect surrounding wiring/hoses for damage and replace or repair as needed.
