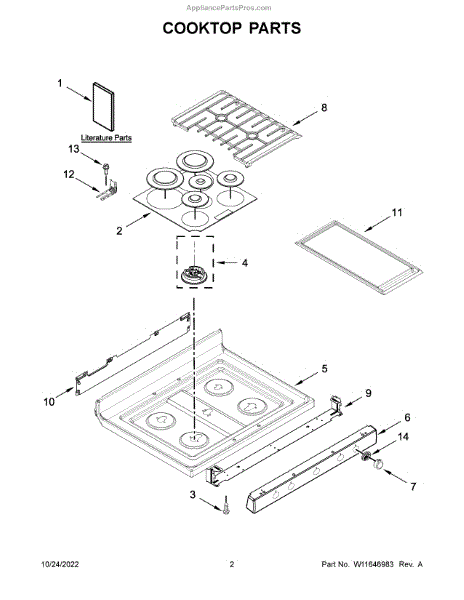

Parts for Kitchenaid KFGG500EBS7: Cooktop Parts

This replacement burner cap sits on top of a cooktop's surface burner to protect the burner head and shape the gas flame for even heating. It restores proper flame pattern and helps prevent hotspots and uneven cooking. What it does:

• Covers and protects the burner head from spills and debris that can clog ports.
• Helps direct and shape the gas flame for consistent heat across cookware.
• Can reduce flame blowout and improve ignition performance when installed correctly.
• Useful when a cracked, warped, or missing cap causes uneven heating or poor flame appearance.

• 1 burner cap

• Ensure the cooktop is cool and all controls are off before handling parts.
• Remove old cap, clean the burner head of debris, then seat the new cap centered on the burner head.
• No special tools required for most surface burner caps; avoid forcing or twisting the cap.
• If ignition or flame issues persist after replacement, inspect burner head ports.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

This manifold panel is the outer trim panel that covers and protects the appliance's control/manifold area, restoring a finished look and safeguarding internal components from spills and debris. It's a direct-replacement exterior panel. What it does:

• Covers the control/manifold assembly and provides a finished appearance
• Protects internal valves, switches and wiring from spills, dust and light impact
• Helps keep controls accessible and properly aligned for normal operation
• Commonly replaced when the existing panel is cracked, dented or cosmetically worn

• One manifold outer panel

• Inspect surrounding components and wiring before reinstalling the panel
• Use appropriate fasteners; do not overtighten to avoid cracking the panel
• Disconnect power (and gas if applicable) before starting work and follow safety guidelines

The Knob is an OEM replacement part for Whirlpool ranges. It provides the interface for selecting burner heat settings directly on the cooktop surface.

Causes of a bad knob include cracking, peeling paint, or other wear from repeated use over an oven's lifetime. Internal mechanisms can also fail, preventing proper rotation.

Symptoms of a faulty knob are:

• Difficulty turning or clicking fully into low/medium/high positions
• Loose, wobbly, or disconnected feel during adjustment
• Faded or missing number/temperature labels

Compatible with additional brands including Kenmore, KitchenAid, and Roper gas range, it restores a cooktop's full functionality and customized heating performance.

This 2-piece grate kit replaces worn or damaged cooktop grates so pots and pans sit level and burn evenly on gas cooktops. Durable cast construction restores stable support across the cooktop surface. What it does

• Replaces cracked, warped, or missing grates to stabilize cookware and prevent tipping
• Restores proper clearance for burner flames and even heat distribution
• Helps reduce noise from rattling grates and prevents surface scratching
• Matches OEM fit and layout to sit securely over burner heads

• Allow cooktop and burners to cool completely before handling
• No special tools typically required — lift old grates off and set new grates into place
• Check that grates sit flat and do not rock; adjust placement if needed

This replacement griddle sits over your range or cooktop burners to provide a flat, removable cooking surface. Use it to restore a level cooking area when the original is worn, damaged, or missing.

• Creates a flat cooking surface above the burner(s) for items like pancakes and sandwiches
• Helps distribute heat from the burner across the plate for more even contact
• Replace if cracked, warped, chipped, or heavily worn
• Common signs include rocking or poor fit, visible damage, or a degraded cooking surface

• Turn off all burners and allow the cooktop and griddle to cool completely before handling
• Position on the designated grate or locator tabs per your model's orientation
• Follow care and cleaning guidance in your owner's manual

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

Note: This is a kit of 5 bezels.

The Wire Harness is an OEM part for Whirlpool ranges. It is an intricate network of electrical wires that distributes power to components like the oven control board, temperature sensor, displays, buttons, lights, and more. Proper operation of these systems relies on an intact and functioning wire harness.

Causes of a bad wire harness can include cracked insulation, and exposed or severed wires due to stress and movement over time. The harness may also develop shorts, abrasions, or disconnects in wiring due to normal wear and repeated use of the oven door.

Symptoms of a bad wire harness include:

• Sudden failure of control buttons, lights, or displays
• Unstable or fluctuating oven temperatures
• Electrical burning smells when the oven is in use
• Intermittent or complete lack of power to oven systems

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric ranges.

This cable clamp secures a wiring harness to the appliance frame to prevent chafing and strain on electrical connections. It helps keep wires routed neatly and reduces the risk of abrasion-related faults. What it does:

• Holds wiring harnesses in place to prevent rubbing against sharp edges or moving parts
• Reduces strain on terminal connections and wire leads
• Helps prevent intermittent electrical problems caused by loose or misrouted wires
• Keeps routing tidy for safer, cleaner internal layouts

• One cable clamp

• Disconnect power to the appliance before beginning any repair
• Replace with the same clamp type and orientation as the original; secure without over-tightening
• Route wires so insulation is not pinched; verify clearance from moving parts
• If you see damaged insulation or frayed wires, repair those issues before reassembly
