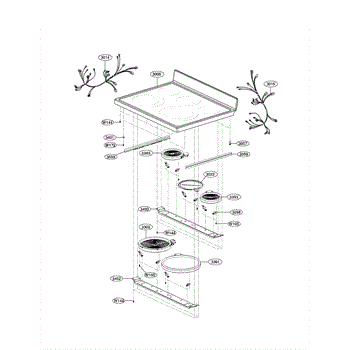

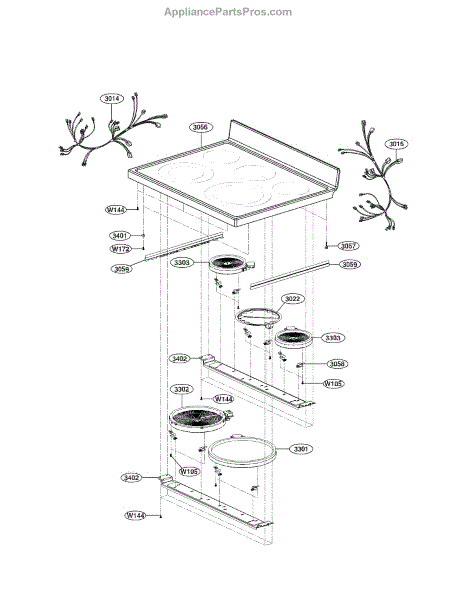

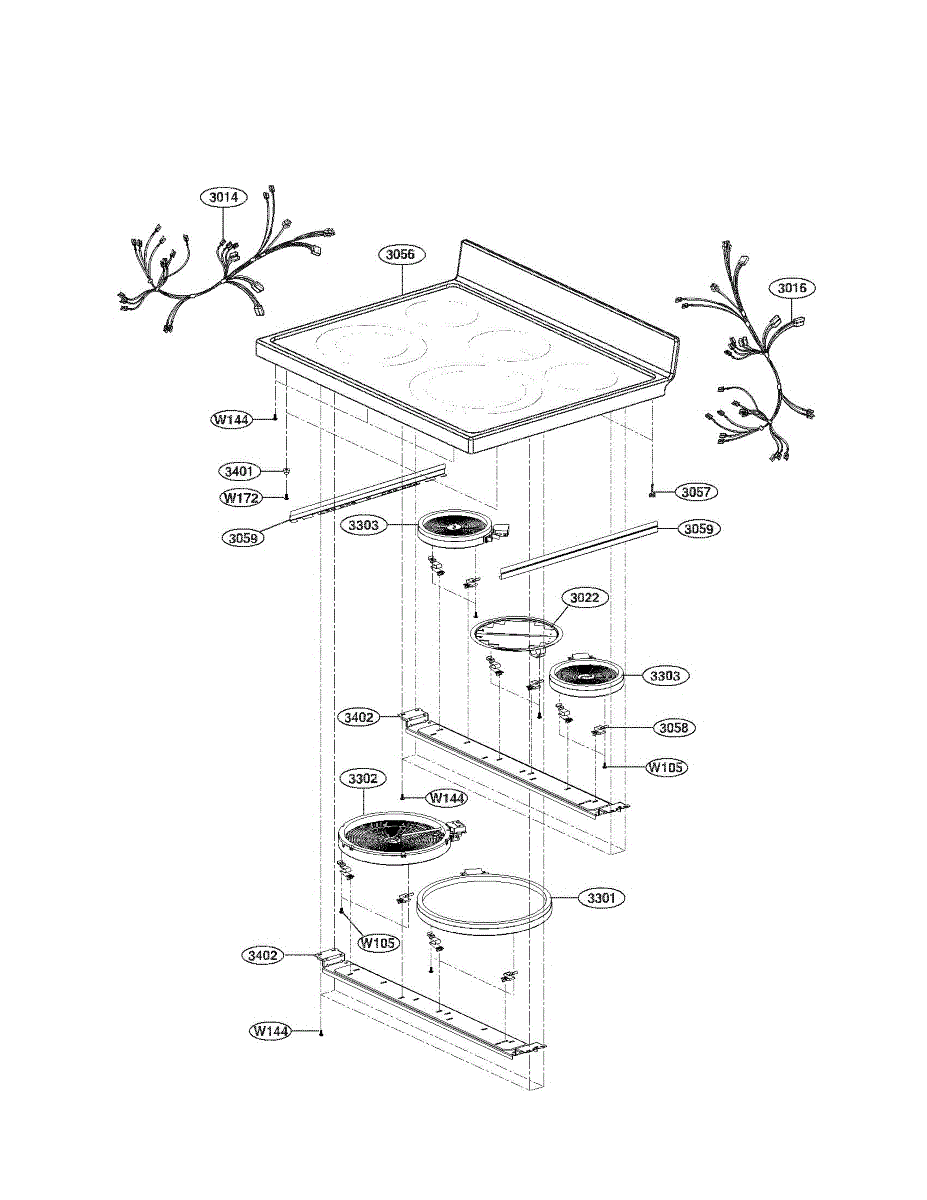

Parts for Lg LDE3017SW: Cooktop Parts

This 4.0x16mm tapping screw secures trim and internal components on compatible appliances, providing a reliable fastener for repair or reassembly. Use the correct screw to maintain fit and function during service. What it does:

• Fastens appliance panels, brackets, and small components where a self-tapping thread is required
• Replaces stripped or missing screws that cause loose panels or rattling
• Helps restore proper alignment and secure electrical or mechanical parts
• Suitable where a 4.0 x 16mm size and tapping/sharp thread are specified

• One 4.0x16mm tapping screw (quantity: 1)

• Use the matching screw location and thread engagement; do not force a misaligned fastener
• Tighten until seated; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow appliance safety procedures before servicing
• If screws repeatedly strip, inspect mating threads or use an approved repair insert

This heater assembly replaces the dryer's heating unit to restore normal drying performance and consistent drum temperatures. It's a direct-fit replacement designed to match the OEM heater layout and electrical connections. What it does:

• Reheats incoming air so the dryer can remove moisture from clothes.
• Works with the dryer's blower and thermostat to maintain operating temperature.
• Commonly used when the dryer produces little or no heat, or runs long cycles.
• Helps resolve intermittent heating caused by a failed heating element or broken heater housing.

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Access requires removing the dryer cabinet or rear panel; follow OEM disassembly steps.
• Inspect related parts (thermal fuse, high-limit thermostat, wiring, connectors) for damage while replacing the heater.

This radiant surface element mounts beneath the glass cooktop to heat a burner zone on your range. Replacing a failed element restores consistent, responsive heating and reliable temperature control for everyday cooking.

• Provides controlled electric heat under the glass for the selected cooking zone
• Works with the range controls to cycle on/off and maintain the set temperature
• Common symptoms: burner won't heat, heats intermittently or only in spots, or the indicator comes on but the surface stays cold
• Visual clues can include a broken or blistered heating coil visible beneath the glass

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift/prop the glass top per service procedure; note wiring and bracket locations before removal
• Transfer any brackets/insulators from the old element and make secure, like-for-like connections
• Handle the glass and element carefully; test operation before final reassembly

This radiant surface element mounts beneath the glass cooktop to heat a surface burner. Replace it when a burner won't heat or heats intermittently to restore normal, consistent cooking performance.

• Generates radiant heat under the glass-ceramic top for a surface burner
• Cycles on and off to help maintain the set temperature
• Typical failure signs: no heat, intermittent heat, or visible damage to the element/terminals
• Used on electric ranges and glass cooktops

• Disconnect power at the breaker and allow the cooktop to cool fully before service
• Lift/hinge the glass top and support it to avoid stress or cracks
• Note wire positions; transfer any mounting clips/brackets from the old element to the new
• Ensure the element sits level under the glass and all connections are secure before reassembly
