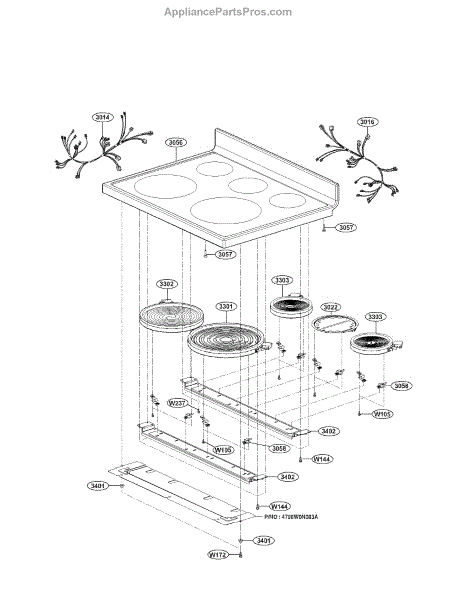

Parts for Lg LRE30451SW003: Cooktop Parts

This 4.0x16mm tapping screw secures trim and internal components on compatible appliances, providing a reliable fastener for repair or reassembly. Use the correct screw to maintain fit and function during service. What it does:

• Fastens appliance panels, brackets, and small components where a self-tapping thread is required
• Replaces stripped or missing screws that cause loose panels or rattling
• Helps restore proper alignment and secure electrical or mechanical parts
• Suitable where a 4.0 x 16mm size and tapping/sharp thread are specified

• One 4.0x16mm tapping screw (quantity: 1)

• Use the matching screw location and thread engagement; do not force a misaligned fastener
• Tighten until seated; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow appliance safety procedures before servicing
• If screws repeatedly strip, inspect mating threads or use an approved repair insert

This taptite screw fastens panels and internal components in your appliance. It forms its own threads as it's driven to create a secure hold, restoring proper fit and reducing rattles caused by loose or missing fasteners.

• Forms threads in the mating material for a tight, secure fit
• Secures covers, brackets, and assemblies during repair or reassembly
• Replace when the original screw is missing, rusted, stripped, or won't tighten
• Helps address loose or rattling panels and misaligned parts

• Disconnect power before servicing
• Start the screw by hand to avoid cross-threading; use the correct driver
• Do not overtighten; if the receiving hole is damaged, repair or replace the mating component
• Reuse any original washers/spacers in the same order if present

This part is the radiant heater intended for use on ranges. This part is also referred to as a surface element. It supplies the heat required to cook food. This particular radiant heater is the largest element on the cooktop. In the event that the burner is not heating up, this part may need to be replaced as there could be an element that is burned out. It may begin to heat up but won't get hot enough to cook correctly. The cook may also notice that the element does not cook evenly. There could also be physical signs of damage. Be sure to unplug the range prior to attempting to repair or replace this part.This particular radiant heater is compatible with appliances manufactured by the LG brand. It is sold individually. This part comes straight from the manufacturer.

This radiant surface element sits beneath the glass cooktop and provides heat to a single burner on an electric range. Replacing a failed element restores fast, even heating and reliable temperature control on that cooking zone. What it does:

• Generates radiant heat under the glass for one surface burner
• Works with the control to cycle and maintain the selected temperature
• Common symptoms: burner won't heat, heats slowly or unevenly, or only part of the ring glows
• Visible breaks or damage to the element under the glass

• 1 radiant surface element

• Disconnect power at the breaker before servicing
• Allow the cooktop to cool completely and protect the glass surface
• Lift/remove the glass top to access the element; transfer any brackets/retainers from the old unit if required
• Move wires one at a time to matching terminals and center the element under the burner graphic before reassembly

This radiant surface element mounts beneath the glass cooktop to heat a surface burner. Replace it when a burner won't heat or heats intermittently to restore normal, consistent cooking performance.

• Generates radiant heat under the glass-ceramic top for a surface burner
• Cycles on and off to help maintain the set temperature
• Typical failure signs: no heat, intermittent heat, or visible damage to the element/terminals
• Used on electric ranges and glass cooktops

• Disconnect power at the breaker and allow the cooktop to cool fully before service
• Lift/hinge the glass top and support it to avoid stress or cracks
• Note wire positions; transfer any mounting clips/brackets from the old element to the new
• Ensure the element sits level under the glass and all connections are secure before reassembly
