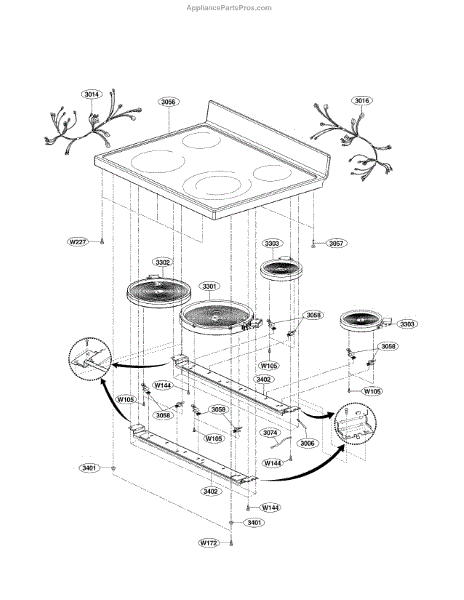

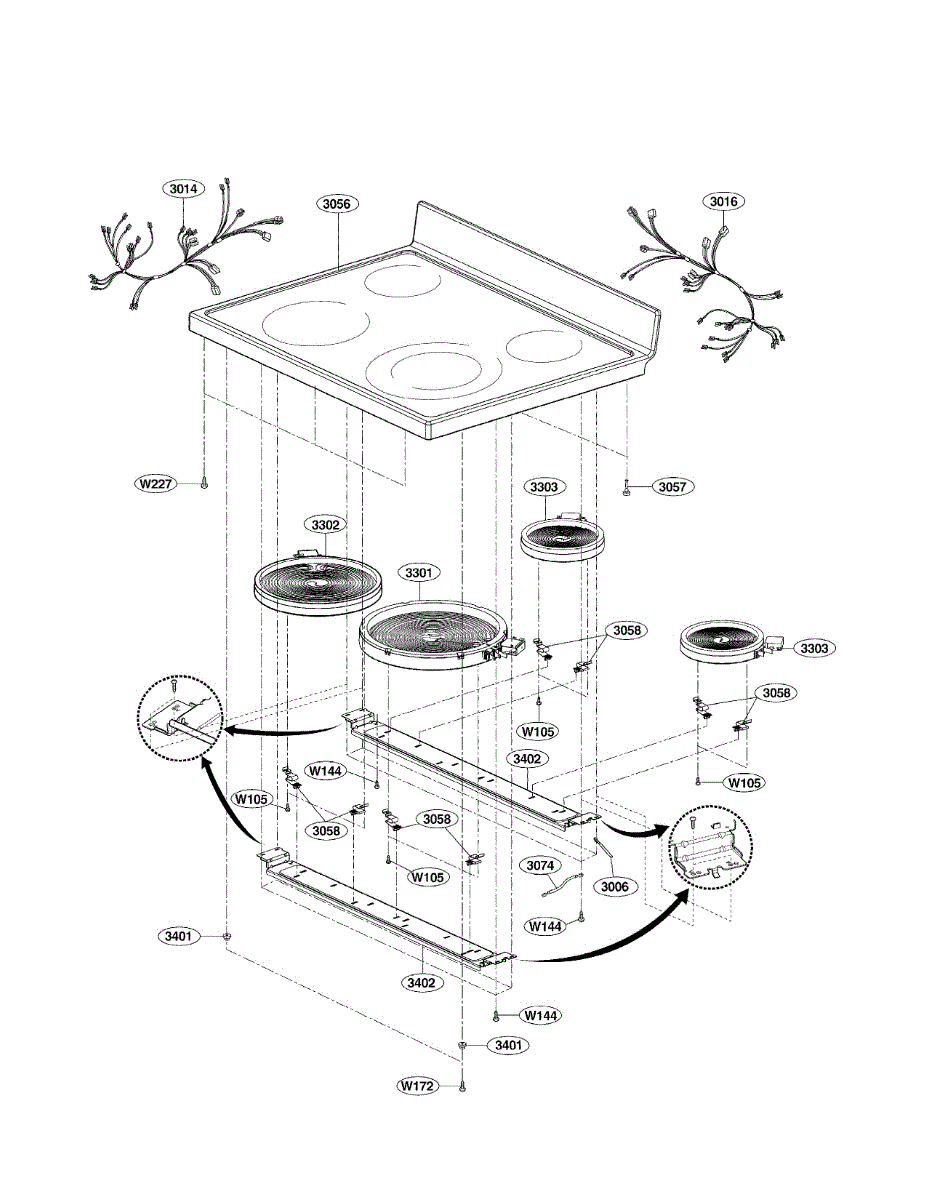

Parts for Lg LRE3091ST: Cooktop Parts

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

Restore consistent heat to your smooth-top range. This radiant surface element sits beneath the glass-ceramic cooktop and provides the controlled heat needed for boiling, simmering, and sautéing when the surface control sends power. What it does:

• Generates radiant heat beneath the glass cooking surface when energized
• Works with the surface control to reach and maintain the set temperature
• Helps address a burner that won't heat or only heats intermittently
• Replaces a failed or visibly damaged element to restore proper cooking performance

• One radiant surface heating element

• Disconnect power by unplugging the appliance or switching off the circuit breaker before servicing
• Lift and support the glass cooktop per your model's service procedure to access the elements
• Note wire locations; transfer any brackets or clips from the old element to the new one
• Handle carefully and avoid flexing the heating coil; ensure the element sits level before reassembly

This radiant surface element mounts beneath the glass cooktop to heat a surface burner. Replace it when a burner won't heat or heats intermittently to restore normal, consistent cooking performance.

• Generates radiant heat under the glass-ceramic top for a surface burner
• Cycles on and off to help maintain the set temperature
• Typical failure signs: no heat, intermittent heat, or visible damage to the element/terminals
• Used on electric ranges and glass cooktops

• Disconnect power at the breaker and allow the cooktop to cool fully before service
• Lift/hinge the glass top and support it to avoid stress or cracks
• Note wire positions; transfer any mounting clips/brackets from the old element to the new
• Ensure the element sits level under the glass and all connections are secure before reassembly
