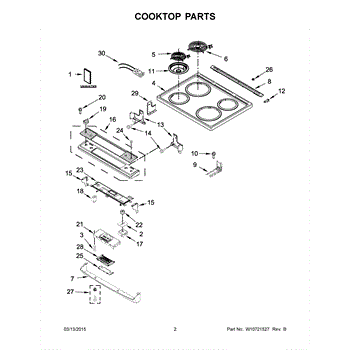

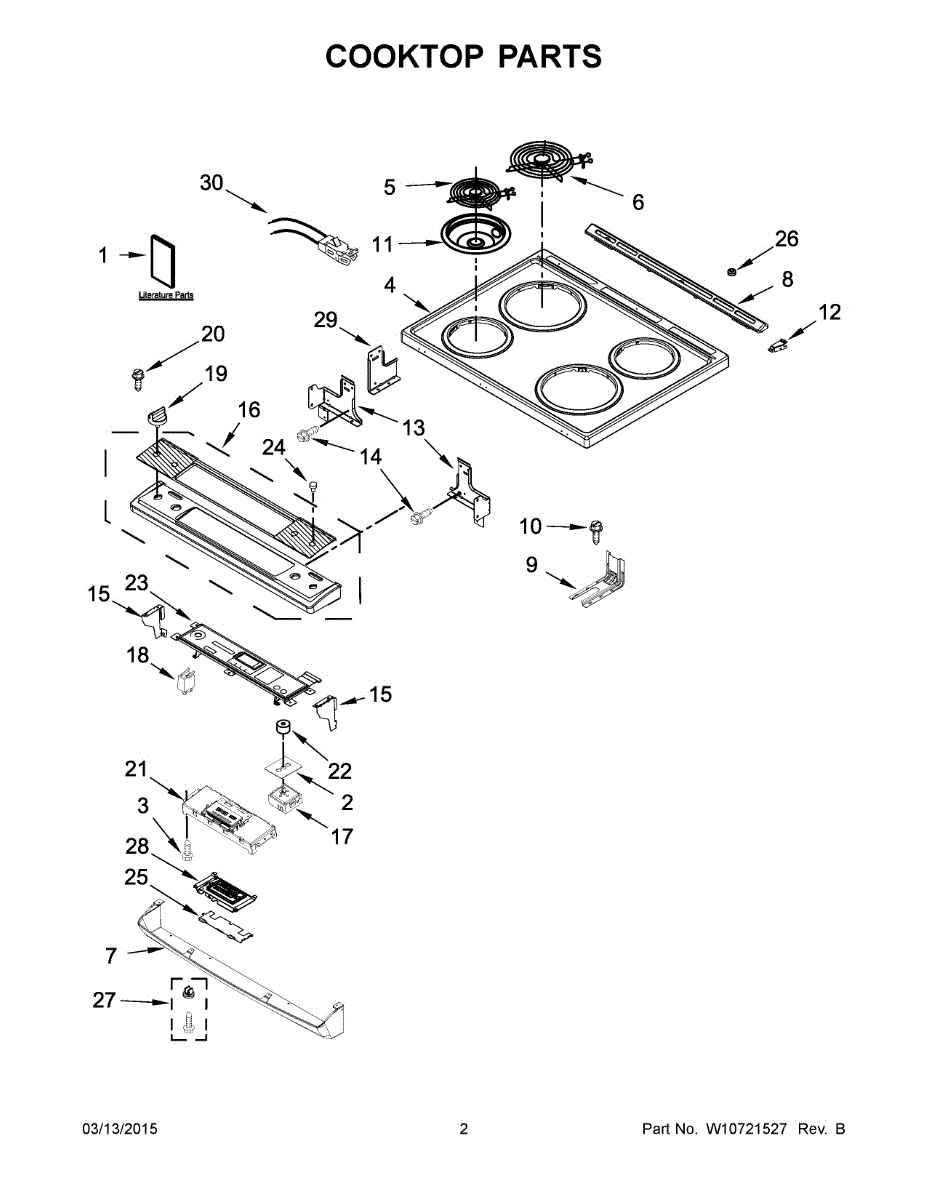

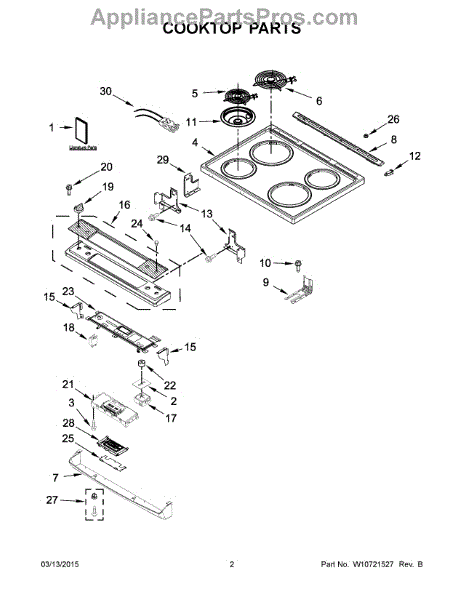

Parts for Whirlpool WEC530H0DB0: 02 - Cooktop Parts

A replacement gasket that seals the infinite (surface) control switch to the cooktop or console, helping keep moisture, grease and debris out of the switch area for cleaner operation and a better seal. What it does

• Seals the infinite switch to the panel to help prevent liquid and food intrusion into the switch housing.
• Cushions and stabilizes the switch for a firmer knob fit and reduced vibration.
• Helps protect the switch contacts from contamination that can cause intermittent control behavior.
• Use when the existing gasket is cracked, flattened, missing, or allowing spills into the controls.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the control knob and access the infinite switch per your model's service instructions.
• Seat the gasket fully around the switch housing so it lies flat against the console; replace if damaged or compressed.
• Inspect the switch and wiring while replacing the gasket; replace the switch if there is visible damage.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.

The 8-inch large Surface Element is an OEM replacement part for Whirlpool induction ranges. It serves as an integral independent heating zone to boil, sauté or simmer large pots quickly.

Symptoms of a bad surface element include:

• Inability to power on or heat evenly across the surface
• Slow inconsistent heating or hot/cold zones developing
• Parts of the coil visibly cracked or disconnected
• Tripped circuit breakers upon heat-up that don't reset

Causes stem from normal thermal stress fatigue of coiled elements exceeding thousands of temperature cycles daily. Continuous high wattage energy may cause microscopic metal deterioration developing over a decade plus of use.

This genuine Whirlpool replacement part is compatible with Kenmore, Roper and Jenn-Air ranges.

For matching 6-inch element order WP660532.

This trim vent restores the finished look and airflow at the front base of your refrigerator. It replaces a damaged or missing grille to help maintain proper ventilation and a clean appliance appearance. What it does:

• Covers the front base opening and directs airflow into the refrigerator's vent area
• Helps keep debris and large particles out of the ventilation channel
• Restores a finished, factory appearance to the appliance front
• Common symptom: cracked, broken, or missing grille that exposes the vent area

• Remove power to the appliance before starting any service if panels near electrical components must be removed
• Typically installs with clips or screws—retain fasteners and follow OEM access steps
• Handle part carefully to avoid scratching paint or bending mounting tabs
• Replace damaged hardware to ensure secure fit

The Vent Trim is an OEM part for Whirlpool ranges. It enhances the appearance of your kitchen while providing a finished look to the range vent area. It covers the gaps and edges around the range vent, creating a clean design.

A bad vent trim can occur due to wear and tear, accidental damage, or improper installation. If you notice symptoms such as loose or missing trim, gaps around the vent area, or an uneven and unfinished look, it may be time to replace the vent trim.

Symptoms of a bad vent trim include:

• Loose or missing trim
• Gaps around the range vent area
• Uneven and unfinished appearance

Repair your range by replacing the worn-out or damaged vent trim with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

This end cap panel is a replacement trim piece that restores the finished edge and protects the appliance cabinet where panels meet. It helps maintain a clean look and keeps edges covered after repair or panel replacement. What it does

• Covers and protects the outer edge of a cabinet or control panel section to prevent exposed edges and wear
• Restores a flush, finished appearance after removing or replacing surrounding panels
• Helps keep dirt and moisture from reaching internal edges and seams
• Matches OEM fit and attachment points for reliable alignment

• One end cap panel

• Designed to snap or screw into existing mounting points — handle gently to avoid cracking plastic
• Turn off and unplug the appliance before removing nearby panels
• Inspect adjacent clips or fasteners and replace if damaged to ensure secure fit
• No special tools typically required; a screwdriver and trim tool may be helpful

The Infinite Switch is an OEM part for Whirlpool ranges. It is the control switch for the surface element that allows the user to adjust the heating element to different power levels for precise cooking control.

Causes of a bad Infinite Switch can include overheating, damage from spilled liquids or debris beneath the control panel, or failure due to years of repeated use and exposure to heat.

Symptoms of a bad Infinite Switch include:

• Inability to adjust heating element power levels
• Element remaining stuck on high heat
• Switch malfunctions such as intermittent power or failure to turn off completely
• Visible damage, corrosion, or loose connections around the control area

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Surface unit indicactor light.

This replacement control knob attaches to a control shaft to select cycles, temperatures, or burner levels. It restores a secure, accurate feel when the original knob is cracked, stripped, loose, or missing.

• Mounts to the control stem to transmit rotation and set the desired function or level
• Provides a firm grip and clear indexing for consistent selection
• Replaces worn or damaged knobs that slip, wobble, or fall off
• Typical symptoms: spins freely, won't stay on the stem, or is visibly broken

• Disconnect power; also shut off the gas supply
• Pull the old knob straight off the stem; wiggle gently—avoid prying on the panel
• Align the new knob with the stem and press straight on until fully seated
• Verify smooth rotation and proper engagement before restoring power or gas

Replace a damaged or stripped control knob with this genuine part so you can reliably select settings on your appliance. It restores a secure grip and clear indexing for smooth, accurate adjustments during everyday use.

• Attaches to the control shaft to operate a switch, selector, or valve
• Replaces knobs that are cracked, loose, stripped, or missing
• Helps when the knob spins freely or settings are hard to adjust
• Restores proper alignment and tactile feel during operation

• Disconnect power; also shut off gas before servicing
• Pull the old knob straight off the stem—do not pry against the control panel
• Align the flat/splined sides and press the new knob fully onto the shaft
• If it won't engage or still slips, inspect the control stem

This control knob attaches to a control shaft so you can select settings on your appliance. Replace a cracked, stripped, or missing knob to restore smooth, accurate operation and a clean factory appearance. What it does:

• Fits onto the control shaft to turn the underlying switch, timer, or valve
• Provides an easy-to-grip interface and clear pointer for setting selection
• Restores proper engagement when the original knob is worn or damaged
• Common symptoms: knob spins freely, falls off, feels loose/wobbly, won't turn the control, broken pointer or insert

• Disconnect power to the appliance; if servicing a gas unit, also shut off the gas supply
• Pull the old knob straight off the shaft—avoid prying against the control panel
• Align the new knob with the shaft orientation (flat/D shape) and press firmly until fully seated
• Proper engagement and pointer alignment before use

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This electronic control board is the main circuit assembly that manages the appliance's user interface and cycle operations, restoring proper control and timing so the unit responds correctly to settings and inputs. What it does:

• Processes user inputs and communicates with sensors to start and advance cycles
• Controls timing, relays and signals for motors, heaters and valves as required by the appliance
• Replaces a failed or unresponsive control module that causes no-response or incorrect cycle behavior
• Common symptoms: blank or unresponsive control, error codes, cycles that won't start or won't advance

• Disconnect power before servicing to avoid electrical shock
• Photograph or label wiring and connectors before removal to ensure correct reassembly
• Handle the board by the edges and avoid touching components or connector pins; observe ESD precautions
• After installation, reconnect power and run a test cycle;

This gasket seals and cushions a door or control switch, helping keep out moisture and debris so the switch can operate reliably. Use it to restore a proper seal and reduce false trips or intermittent switch contact. What it does:

• Provides a protective seal around a door or control switch to limit dust and moisture intrusion
• Cushions the switch assembly to reduce wear and noise from repeated use
• Helps maintain consistent switch engagement and reliable operation
• Common service part when a switch area shows visible gaps, wear, or causes intermittent function

• Power off and unplug the appliance before starting any repair
• Handle the gasket and adjacent wiring carefully to avoid damage; replace any brittle clips or fasteners

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

This Bumper is an OEM part for Whirlpool ranges. Serving as a protective barrier, it cushions and safeguards various parts of the range. Engineered to fit seamlessly, it ensures stability and protection for specific range models.

What causes a bad part:
Continuous use, exposure to heat, or physical impact can lead to wear and tear of the Bumper. Harsh cleaning agents or abrasive materials during maintenance can also contribute to its degradation.

Symptoms for a bad part:

• Loose or detached bumpers
• Visible cracks or damage on the bumper
• Increased vibration or instability in the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This insert is a small OEM component designed to fit into a specific location on your appliance to secure, align, or finish an assembly. Replacing a worn, damaged, or missing insert restores proper fit and clean appearance.

• Provides a snug interface or cover within the designated assembly
• Helps prevent looseness, vibration, or gaps in the connected part
• Replaces cracked, worn, or missing insert pieces
• Common symptoms include loose or wobbly parts, misalignment, or a missing cap/cover

• Disconnect power and shut off gas/water before servicing
• Refer to your model's parts diagram to confirm location and orientation
• Use non-marring tools to avoid cosmetic damage
• Seat the insert fully; do not overtighten adjacent fasteners

Restore reliable operation with this electronic control board, the appliance's central "brain." It manages inputs and outputs so programmed functions run correctly, helping resolve unresponsive controls and erratic or failed cycles.

• Directs and times operations based on user commands and sensor feedback
• Distributes power to components such as motors, valves, heaters, lights, or fans as required
• Monitors switches/sensors to maintain proper performance
• Symptoms can include no power, won't start, unresponsive buttons, random resets, incomplete cycles, or error codes

• Disconnect power before servicing; verify no voltage is present
• Use ESD precautions and handle the board by its edges
• Photograph wiring/connectors to ensure correct reassembly
• Mount in the original position and refer to the unit's tech sheet for any required setup or diagnostics after installation

The Surface Burner Receptacle is an OEM part for Whirlpool ranges. It is designed to hold the surface burner element in place and provide the electrical connection needed for the burner to heat up. This component ensures a secure and efficient transfer of electricity to the burner element, allowing for proper cooking performance.

Causes of a bad surface burner receptacle can include regular wear and tear from frequent use, exposure to high temperatures, or damage due to corrosion or accidental impact. These factors can lead to poor electrical connections or the burner element not staying securely in place.

Symptoms of a bad surface burner receptacle include:

• Burner element not heating or heating inconsistently
• Burner element not fitting securely or wobbly in its socket
• Visible signs of damage, such as burns or melted plastic around the receptacle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
