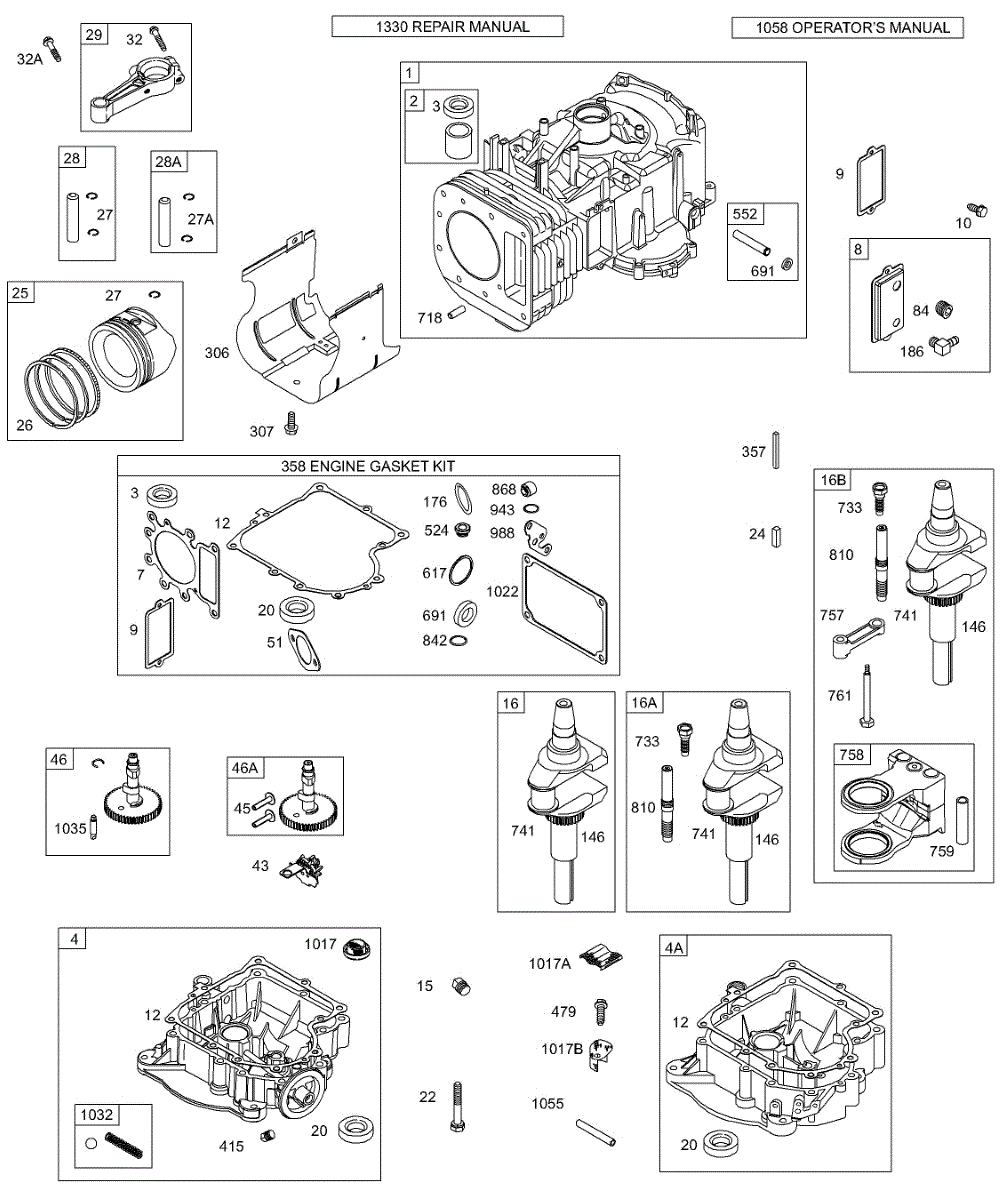

Parts for Briggs & Stratton 28Q777-0526-E1: Crankshaft, Sump, Cylinder, Piston / Rings, Connecting Rod Parts

Prevents oil leaks around the crankshaft in small gas engines. Replace if oil seeps from the bottom of the engine. Verify fit with your model number.

Seals the cylinder head to prevent compression loss and fuel leaks. Replace if engine won't start, runs rough, or lacks power. Verify fit with model number.

Fix exhaust leaks and pressure issues with this engine breather gasket. Creates a seal for proper gas flow and valve pressure regulation in lawn equipment.

Fix oil leaks from your engine block with this crankcase gasket. Seals between engine block and crankcase cover. Straightforward DIY repair.

Fix oil leaks or perform routine oil changes with this engine oil drain plug. Threads into the oil tank base for secure drainage. Simple DIY repair.

Seals the crankcase on the PTO side to prevent oil leaks and maintain proper engine pressure. Replace if you notice oil leaking around the crankshaft. Confirm fit with your engine model number before ordering.

Engine won't restart after hitting an object? A sheared flywheel key is often the cause. This small part keeps the flywheel connected to the crankshaft.

This genuine OEM replacement intake manifold gasket for a small gas-powered lawn appliance motor acts as a seal between two engine components, like any other gasket. However, the intake manifold gasket is one of the most necessary gaskets because it is responsible for sealing the engine vacuum and coolant. Intake manifold gaskets can be damaged because of their location in the engine. If the engine has been running hot for a while, the metal can expand and crush the gasket, causing it to fail. If this happens, the engine will begin overheating, as coolant can no longer reach the areas where it is needed. Replacing an intake manifold gasket will mean removing the air filter and its housing, the oil drain tube, blower housing, breather tube, and carburetor. Making this repair requires a set of socket wrenches and screwdrivers. This part is compatible with a wide range of mowers, chippers, and blowers from Briggs & Stratton, Toro, Cub Cadet, MTD, Simplicity, and Lawn Boy. It is sourced from the original manufacturer and ships individually.

Seals and protects engine connections to prevent oil leaks. Replace when cracked, brittle, or leaking. Verify fit with your engine model number.

Dipstick tube seal prevents oil leaks and keeps air out of the crankcase. Replace if oil seeps around tube or seal shows wear. Verify fit with model.

This is an O-ring seal that can be used in many types of engines for lawn and garden equipment. It is responsible for sealing the connection between the cylinder head assembly and the intake manifold. The sealing process prevents dirt and debris from moving throughout the equipment and getting into the motor. As time passes, the O-ring seal can shrink, causing oil or air leaks and decreasing engine performance.When the O-ring is damaged, clogged, worn, or broken, it will need to be cleaned or replaced before using the lawn equipment again. The damaged or broken O-ring seal can be removed using a flat head screwdriver. After it has been removed, the replacement component can be installed in the same place. Make sure that the O-ring seal is properly seated to avoid additional leaks. Reassemble the parts before using the tool. This is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold individually. It is used in lawnmowers, lawn tractors, snowblowers, and wood chippers manufactured by Simplicity, MTD, Lawn-Boy, Cub Cadet, Toro, and Briggs & Stratton.

This replacement valve seal is a genuine OEM part for a lawn tractor or mower. The valve stem is a type of valve that transfers oil into the cylinder and then immediately reseals due to the pressure in the chamber. However, if the seal is damaged, it will not close and oil will leak into the cylinder. If this happens, the cylinder head may become overly lubricated and not run well. This seal helps prevent that from happening. It fastens to the intake valve and valve stem keeper. Seals will naturally wear out over time due to stress and exposure to corrosive oxidizing agents in an engine. When this happens, the valve will leak oil. To test if the valve seal is compromised, look for whitish-grey smoke that indicates burning oil and also measure to see how much oil the engine is consuming. If the seal is breached, use a screwdriver and socket wrench set to change out the part. This top of the line replacement valve seal is compatible with Briggs & Stratton, Toro, and Lawn Boy lawn tractors. It is sourced from the original manufacturer and ships individually.

Fix oil leaks from your rocker cover with this valve cover gasket. Creates an air-tight seal between engine and valve cover. Easy DIY replacement part.
