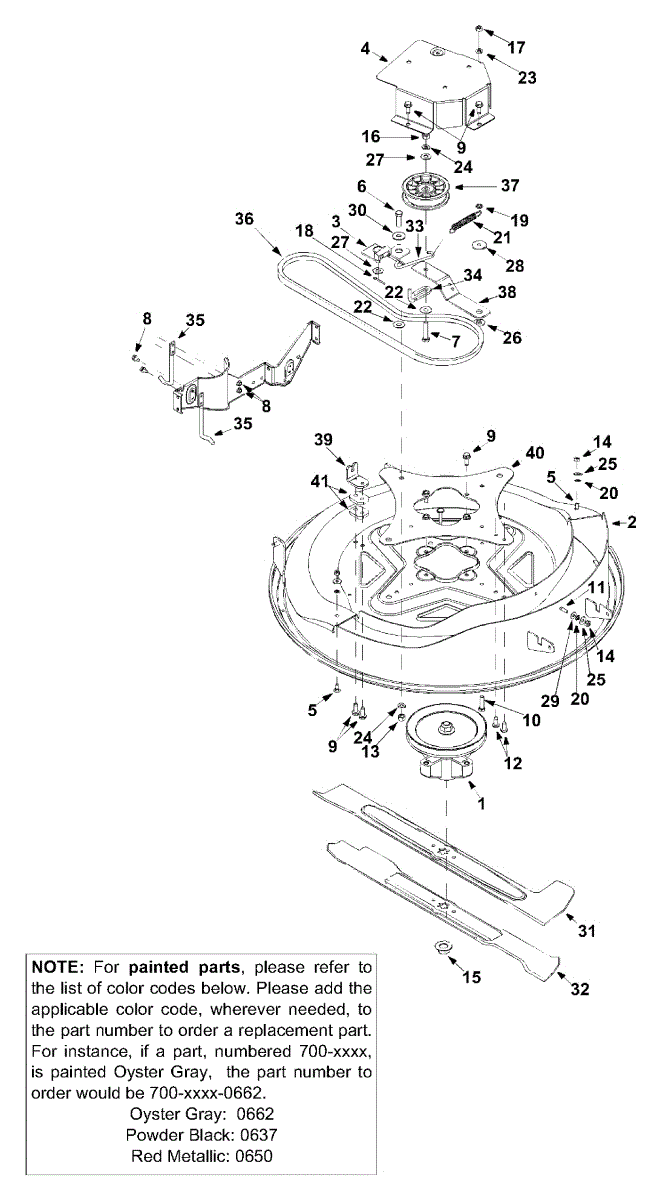

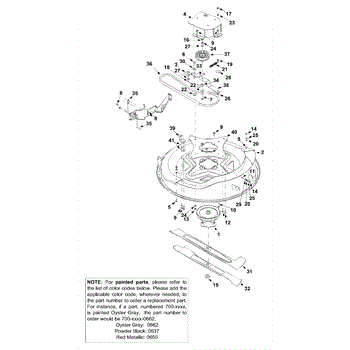

Parts for White Outdoor 13A-344-190 / 2003: Deck Assembly Parts

This carriage screw is a replacement part for Craftsman, Yard-Man, MTD, and Yard Machines lawnmowers and snowblowers. Carriage screws are made from durable metal and have a flat tip with a round head and threading on a portion of the shank. These screws may also be called coach screws or plow screws and are corrosion resistant, strong, and resistant to scratches. If a carriage screw breaks or beings to become weak, replacement may be required. In many cases, it’s possible to inspect the screw to determine whether it is still doing its job. The screw might be rusted or appear beaten up, which means it should be replaced. In most cases, it can be removed using a wrench unless the rusting is extreme. The new screw can be placed into the original hole and tightened to keep your snowblower running correctly. This is a genuine OEM replacement component for use with lawn tractors and snowblowers. It’s made of metal and can be found in various locations depending on the tool model. The screw comes as an individual item and will require the use of a wrench to install.

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

This carriage bolt is a genuine MTD part, sold individually. A carriage bolt can be used as a replacement part in a lawn mower or a snowblower. The purpose of this genuine OEM part for one of these outdoor appliances is to work in conjunction with a nut to fasten components to the machine.If the carriage bolt has been subject to sufficient damage such that its function is reduced, it should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This carriage bolt is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Murray, Yard Machines, Huskee, Montgomery Wards, Bolens, and Yard Man.

This screw is a genuine MTD part, sold individually. This screw can be used as a replacement part in lawn mowers, lawn tractors, chipper shredders, and wood chippers. The purpose of the screw in one of these small engine outdoor appliances is to serve as a fastening component for one or more parts.The screw is a small component that can be easily lost or misplaced during use or maintenance. If the screw is lost at some point, it should be replaced by this genuine OEM replacement part. As a result of general wear and tear over long-term use, the screw can also be stripped or damaged to the point that it cannot serve its function of fastening one or more internal components of the appliance. If this occurs, the screw should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Ryobi, Troy-Bilt, Murray, Yard Machines, Huskee, Bolens, and Yard Man.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

This OEM part is a cotter pin for lawnmowers. The cotter pin is the small clip that secures the mower deck to the mower. A cotter pin can become rusted or damaged due to exposure to the elements. If the cotter pin is no longer securing the mower deck, then it will need to be replaced. Luckily replacing this part is a relatively simple fix.To replace the cotter pin, start by making sure the mower is turned off. After that, locate the old damaged pin. Use a pair of pliers to pull it out of its place. Once removed, slide the new pin into its opening and make sure it is set securely on the mower deck. Once secured, turn the mower on to see if the pin can hold the mower deck.This genuine replacement part is sold individually and is compatible with MTD brand mowers.

An authentic OEM replacement extension spring is an integral part of a lawn tractor or snowblowers brake system that helps to hold together and redistribute energy throughout the lower deck. When a driver applies the brakes, the lower deck has a tendency to continue moving forward with inertia. This extension spring helps to keep the parts in place and transfer a balance of energy. Although replacing the extension spring itself is a simple and straightforward process, gaining access to the spring is a little complicated as it requires removing the lawn mower or snowblower's lower deck. You will need a pair of pliers to remove the pins and cables that hold the lower deck in place but there is no other required hardware. Be sure to follow the user's manual as you remove the deck. This part is a top-quality replacement part sourced from its original manufacturer. It is designed to be used with Murray, Husky, Troy-Bilt Poulan, Yard Man, Yard Machines, Bolens, and MTD appliances. This part ships individually.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

This replacement part is a bushing washer. This is a genuine replacement part made by MTD. Washers work with other small parts like nuts and screws to hold certain pieces in place. This allows for the engine to run smoothly and efficiently. A new bushing washer might be needed if the current one is missing or damaged in any way. This can include being dented, bent, or cracked. Washers can become worn down due to normal wear and tear over time. This is caused by friction inside of the engine. Refer to the user manual for more specific instructions on how to replace this part. This bushing washer is also a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer for long-lasting use.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged, misplaced, or defective flat washer in a variety of power equipment. Flat washers are a standard piece of hardware with many different uses. Their primary purpose is to increase the bearing surface area of a screw. This can help to prevent screws from becoming loose over time due to pressure that leads to them sinking into the surface. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this flat washer, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this flat washer is suitable for use on several different models of small engine outdoor power equipment manufactured by MTD, Murray, Craftsman, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.

This part is a replacement three-in-one blade. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or blunted blade in a variety of lawnmower models. This three-in-one blade enables the user to cut, mulch, and bag grass clippings without the need to change the blade depending on the desired use. Blades are subject to significant wear and tear which can cause them to become blunt and worn out, requiring replacement. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this blade, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this three-in-one blade is suitable for use on several different models of lawnmowers and lawn tractors manufactured by MTD, Cub Cadet, Yard Machines, and Yard Man. This is a genuine part made of high-quality, durable materials and is sold individually.

A flat idler pulley is a crucial piece of hardware designed for use with many different models of lawn mowers and snowblowers. It is compatible with products by brands such as Craftsman, Yard Machines, Yard Man, MTD, and Troy-Bilt.The flat idler pulley part is crucial for the proper functioning of the lawn mower because it connects to the idler bracket. The purpose of the flat idler pulley is to apply tension to the v-belt. The replacement process of the flat idler pulley will require a wrench.This flat idler pulley is made out of metal. It is sold individually. The flat idler pulley is an original OEM part sourced directly from the manufacturer, MTD.
