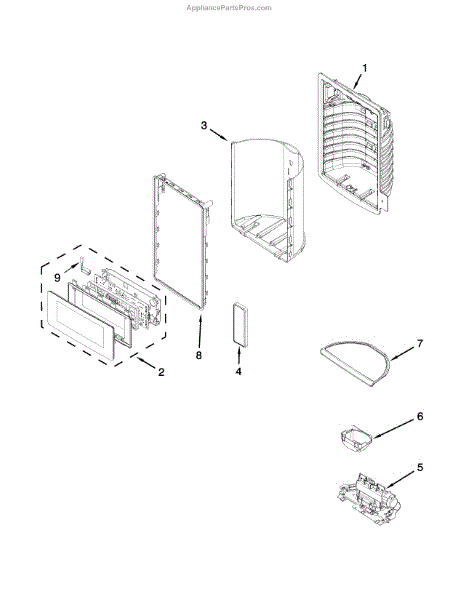

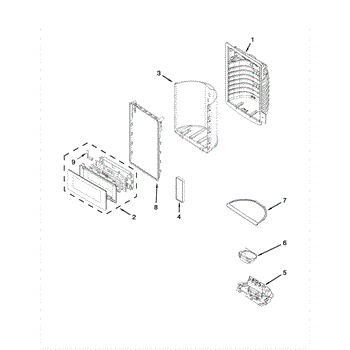

Parts for Kenmore 596.72383411 (59672383411, 596 72383411): Dispenser Front Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This replacement pad cushions and isolates components to reduce vibration and prevent rubbing or chafing where parts contact the cabinet or tub. It helps quiet operation and protects finishes from wear. What it does

• Acts as a small shock absorber to reduce vibration and rattling
• Prevents metal-to-metal contact that can cause noise or cosmetic damage
• Keeps components properly spaced and aligned to avoid rubbing
• Commonly replaced when you hear new noises or see wear marks where parts meet

• Disconnect power to the appliance before servicing
• Access the area requiring the pad per your model's service instructions
• Remove any old adhesive residue and position the pad firmly; some pads use pressure-sensitive adhesive
• Use basic hand tools as needed and test operation after reassembly

This door ice separator assembly guides ice from the dispenser chute to the dispenser tray, helping prevent jams and misfeeds. It replaces a cracked, warped, or broken separator to restore smooth ice dispensing. What it does:

• Directs ice through the dispenser chute so cubes drop cleanly into cups or glasses
• Helps prevent ice clumping and jams at the door dispenser
• Restores proper alignment of the dispenser path after damage or wear
• Useful when ice falls unevenly or gets stuck in the dispenser area

• Basic removal of the dispenser inner door panel may be required; keep track of fasteners and clips.
• Disconnect power to the appliance before starting work to avoid electrical or mechanical hazards.
• Inspect surrounding chute and dispenser components for damage and clean any ice buildup before reassembly.
• Use gentle force when snapping the new separator into place to avoid breaking tabs—do not force misaligned parts.

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

Replacement drip tray that collects defrost and condensate water and helps direct moisture to the refrigerator drain, reducing the chance of leaks and water damage. Fits into the evaporator/drain area to restore proper drainage. What it does:

• Collects defrost and condensation runoff and channels it to the drain system
• Helps prevent water pooling or leaks under the appliance
• Replaces cracked, warped, clogged, or missing trays that allow water to escape
• Can reduce musty odors caused by standing water in the tray area

• Disconnect power and remove food before accessing internal refrigerator components
• Access often requires removing the kickplate, evaporator cover, or shelves
• Make sure the drain path is clear and the tray is seated correctly before restoring power; dry any standing water before testing

Drip tray that catches defrost and condensation water to prevent leaks and floor damage. Replaces a cracked or missing tray to restore proper water collection and reduce standing water beneath the appliance. What it does:

• Collects melted frost and condensation from the cooling system so water is contained and managed.
• Channels water toward the appliance's evaporation/drain area so it can evaporate safely.
• Helps prevent puddles and potential floor damage caused by a damaged or missing tray.
• Replace when tray is cracked, warped, leaking, or shows visible damage.

• Disconnect power to the appliance before performing any service.
• Access is typically through the lower toe grille or a rear access panel.
• Inspect mounting tabs and surrounding supports for damage and ensure the new tray seats properly.
• Wear gloves and take care around sharp sheet-metal edges during removal/install.

This control trim ring replaces the decorative bezel around a console control or knob, restoring a finished appearance and protecting the control opening from dirt and wear. Fits where the control meets the console for a clean look. What it does:

• Covers the gap around a control or knob to improve appearance and keep debris out
• Protects the control area from spills and grime that can affect operation
• Restores a secure, finished edge if the original trim is cracked, warped, or missing
• Matches OEM fit and mounting style for straightforward replacement

• Remove power to the appliance before beginning any work.
• Installation generally requires removing the knob and snapping or fastening the trim into place; follow your model's service instructions.
• Handle trim carefully to avoid scratching finish; use trim-safe tools if prying is needed.
• If mounting clips or screws are damaged or missing, replace them before completing installation.

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation
