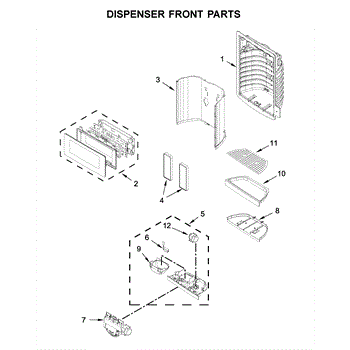

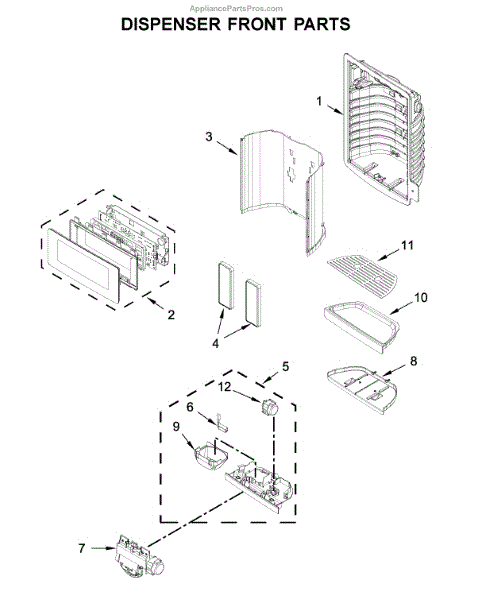

Parts for Kitchenaid KRFF507HBL00: Dispenser Front Parts

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This UI panel is the user-facing control overlay that houses the touch buttons and display area, restoring clear controls and readable feedback for your range or oven. Replace a cracked, worn, or unresponsive front control surface to regain reliable operation. What it does:

• Provides the front surface for touchpads/buttons and the display window so you can select settings and see status.
• Replaces a cracked, faded, or delaminated control overlay that makes buttons hard to read or press.
• Helps address issues where button presses feel unreliable or the control area shows visible damage.
• Works with the appliance's control assembly to present clear labels and tactile feedback for user input.

• Disconnect power to the appliance before beginning any work to avoid shock or damage.
• Handle the panel gently to avoid scratching; align and seat any ribbon or connector carefully during reassembly.
• Minor disassembly of the console or fascia may be required; keep track of screws and retainers.

Color: Black


This shield is a protective trim piece that helps guard internal components from debris, heat, and wear, keeping the appliance running quietly and extending component life. It's a direct-fit replacement when the original shield is damaged or missing. What it does:

• Protects nearby wiring, hoses, and components from heat and abrasion
• Reduces rattles or vibration caused by loose or damaged shielding
• Helps prevent debris build-up in sensitive areas
• Restores the intended clearance and component alignment

• One replacement shield

• Disconnect power (and water if applicable) before starting any repair
• Remove exterior panels as needed to access the damaged shield; keep fasteners organized
• Inspect surrounding components for damage while replacing the shield
• Use proper hand tools; avoid overtightening fasteners to prevent cracking

Color: Black

The Dispenser Actuator is an OEM part for Whirlpool refrigerators. It is responsible for controlling and actuating the dispensing of water and ice from the refrigerator door. The dispenser actuator contains electronic components that sense when a cup is placed in the dispenser area and signal the water and ice systems to operate.

Symptoms of a bad dispenser actuator include:

• Failure to dispense water or ice
• Water or ice dispensing continuously without a cup present
• Delayed or inconsistent response time when dispensing
• Electronic control issues such as blinking lights or error codes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

Color: Black

This drip tray sits beneath the grate area to catch grease and boil-overs, helping keep the cooktop cleaner and protecting components below. Replacing a bent, corroded, or missing tray restores proper fit and appearance. What it does:

• Collects drips, grease, and spills under the grate area
• Helps prevent liquids from reaching the burner box or wiring
• Supports correct placement of the grate/grill assembly
• Common symptoms: missing tray, heavy rust, warping, leaks or messes under the top

• 1 drip tray

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove the cooking grates/grill section to access the tray
• Lift out the old tray and position the new one with correct orientation
• Reinstall grates and verify proper seating and clearances before use

This ice door motor drives the dispenser flap that opens for ice dispensing and closes to seal the chute. Replacing a weak or failed motor restores smooth door movement and helps prevent warm air and moisture from entering the freezer. What it does:

• Actuates the ice chute door during dispensing and returns it closed for a proper seal
• Helps reduce frost, condensation, and ice clumping around the dispenser
• Can address ice not dispensing due to the door not opening/closing
• May resolve clicking or grinding noises from the dispenser area

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove dispenser trim/control panel to access the ice door assembly; handle wiring carefully
• Note linkage and wire orientation before removal to ensure proper reassembly
• After installation, test the dispenser to verify the door opens/closes and seals the chute
