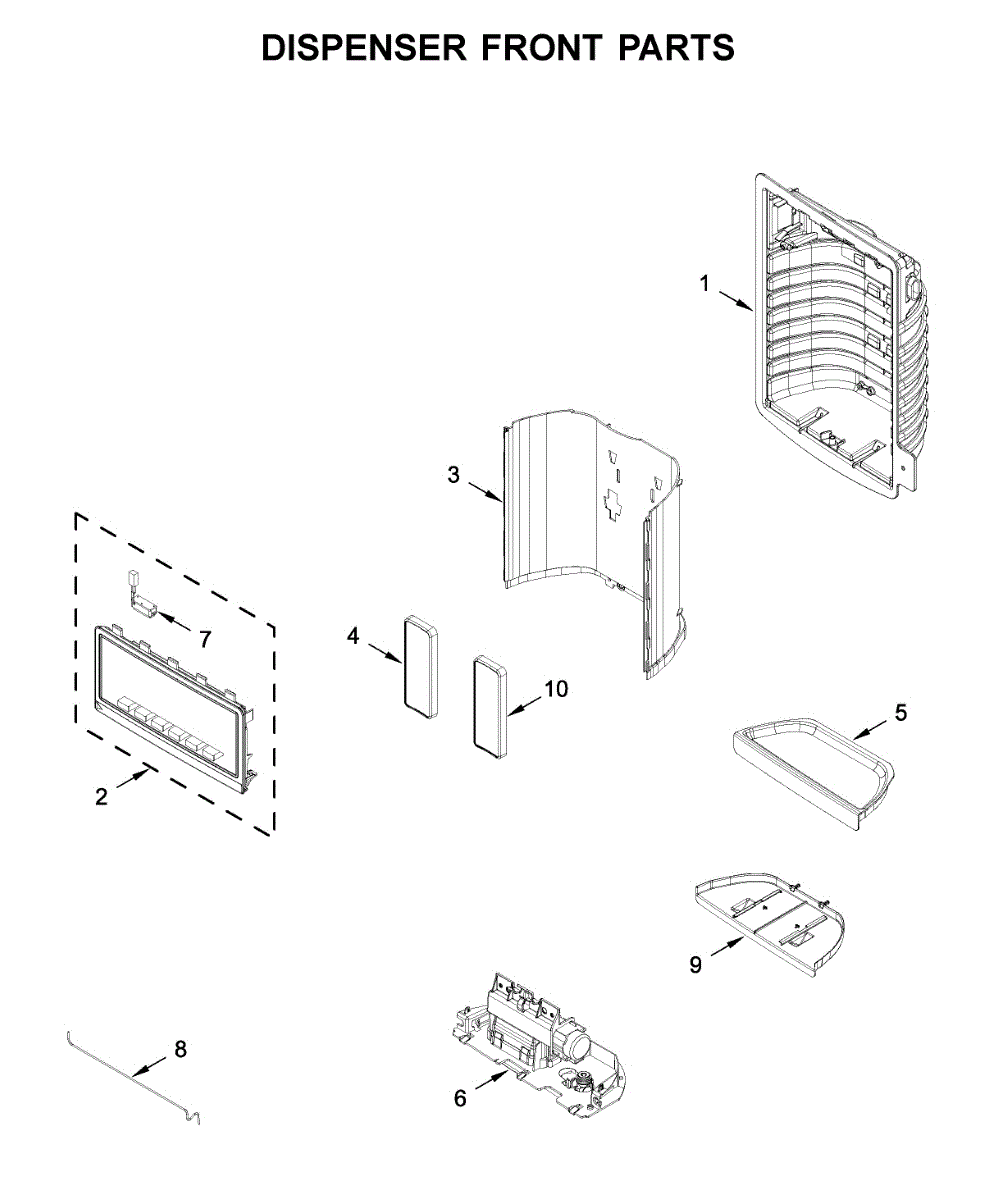

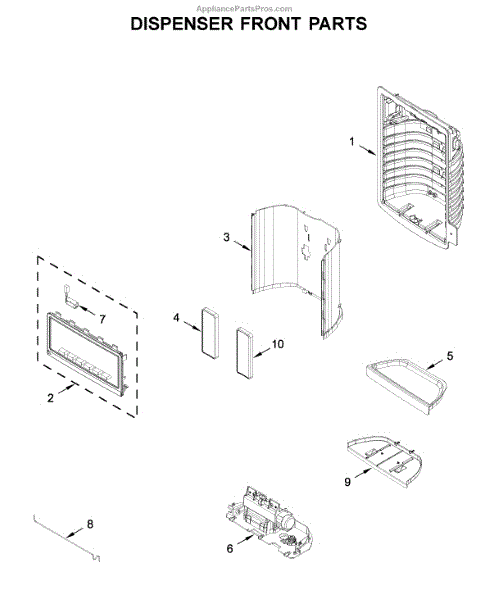

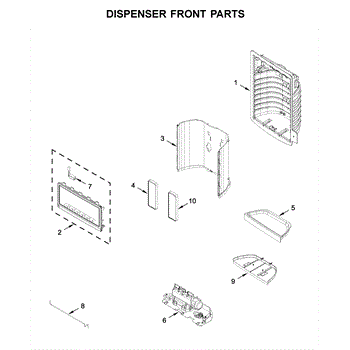

Parts for Maytag MFI2570FEZ06: Dispenser Front Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Ice and Water Dispenser Pads is an OEM replacement part for Whirlpool refrigerators. It consists of two actuator pads that attach directly to the dispenser housing and are responsible for activating both the water and ice dispensers. The pads work together to trigger the dispensing mechanism and intuitively control the flow of water and release of ice cubes.

Constant use can cause actuator pads to become worn out or damaged.

Symptoms of bad pads include:

• Intermittent or unreliable dispensing
• Increased difficulty activating the dispensers
• Dispensers activating on their own without input

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This dispenser drip tray sits in the door recess to catch drips and splashes during dispensing, helping keep the front of your refrigerator clean and reducing moisture that can run down the door onto surfaces below. What it does:

• Collects water droplets and minor spills in the dispenser area
• Helps reduce stains, residue, and corrosion around the dispenser opening
• Restores proper fit and appearance when the original tray is cracked, warped, or missing
• Common symptoms: water pooling in/under the dispenser, loose or ill-fitting tray, visible cracks or leaks

• 1 drip tray

• Unplug the refrigerator and shut off the water supply before servicing
• Lift out the old tray from the dispenser recess; clean and dry the area
• Align and press the new tray fully into place so it sits flat and secure
• Wipe away any remaining moisture before restoring power and water

This dispenser separator assembly forms the interior of the refrigerator's ice/water dispensing area. It guides ice and water into your glass and helps seal the chute to limit warm air intrusion, drips, and frost at the opening.

• Forms and supports the dispenser recess and chute opening
• Provides sealing surfaces to help prevent air leaks that lead to frost or condensation around the dispenser
• Directs ice/water flow for cleaner, more controlled dispensing
• Replace if cracked, warped, loose, or if you notice frost/moisture around the chute or splashing/dripping during dispense

• Unplug the refrigerator and shut off the water supply before service
• Remove the dispenser front/trim to access the separator; handle wiring/connectors with care and reuse existing fasteners
• Avoid prying on finished surfaces; use non-marring tools
• Restore power and test ice and water dispensing; check for proper chute sealing

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This water tube routes cold water from the household line to the refrigerator door dispenser, restoring reliable dispensing and preventing leaks at the door. Durable tubing designed for direct connection to dispenser fittings. What it does:

• Carries cold water from the inlet to the door-mounted dispenser assembly.
• Replaces cracked, pinched, or kinked tubing that causes leaking or poor flow.
• Helps stop slow or intermittent dispensing caused by damaged or collapsed tubing.
• Keeps the dispenser water path sealed when properly installed.

• Shut off the refrigerator and turn off the water supply before starting.
• Inspect and replace any damaged fittings or O-rings; tighten connections to prevent leaks.
• Route tubing without sharp bends or kinks; trim cleanly if shortening is required.

This slide tray is the removable drip tray that catches spills and condensation from the refrigerator dispenser, keeping the cabinet floor and shelf area clean and dry. It slides out for quick cleaning and maintenance. What it does:

• Collects drips and overflow from the water/ice dispenser to prevent puddles under the dispenser
• Slides outward for easy access when wiping up spills or removing debris
• Re-seats into the dispenser assembly to maintain proper alignment and coverage
• Helps reduce need for frequent cleanups and keeps the dispenser area sanitary

• Disconnect power and turn off the water supply before servicing dispenser components
• Remove old tray by sliding it out; align new tray and slide in until it clicks or seats firmly
• Use only gentle pressure—do not force or pry parts into place
• If tray doesn't seat correctly, check for obstructions or damaged mounting tabs before operating

The Ice and Water Dispenser Pads is an OEM replacement part for Whirlpool refrigerators. It consists of two actuator pads that attach directly to the dispenser housing and are responsible for activating both the water and ice dispensers. The pads work together to trigger the dispensing mechanism and intuitively control the flow of water and release of ice cubes.

Constant use can cause actuator pads to become worn out or damaged.

Symptoms of bad pads include:

• Intermittent or unreliable dispensing
• Increased difficulty activating the dispensers
• Dispensers activating on their own without input

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
