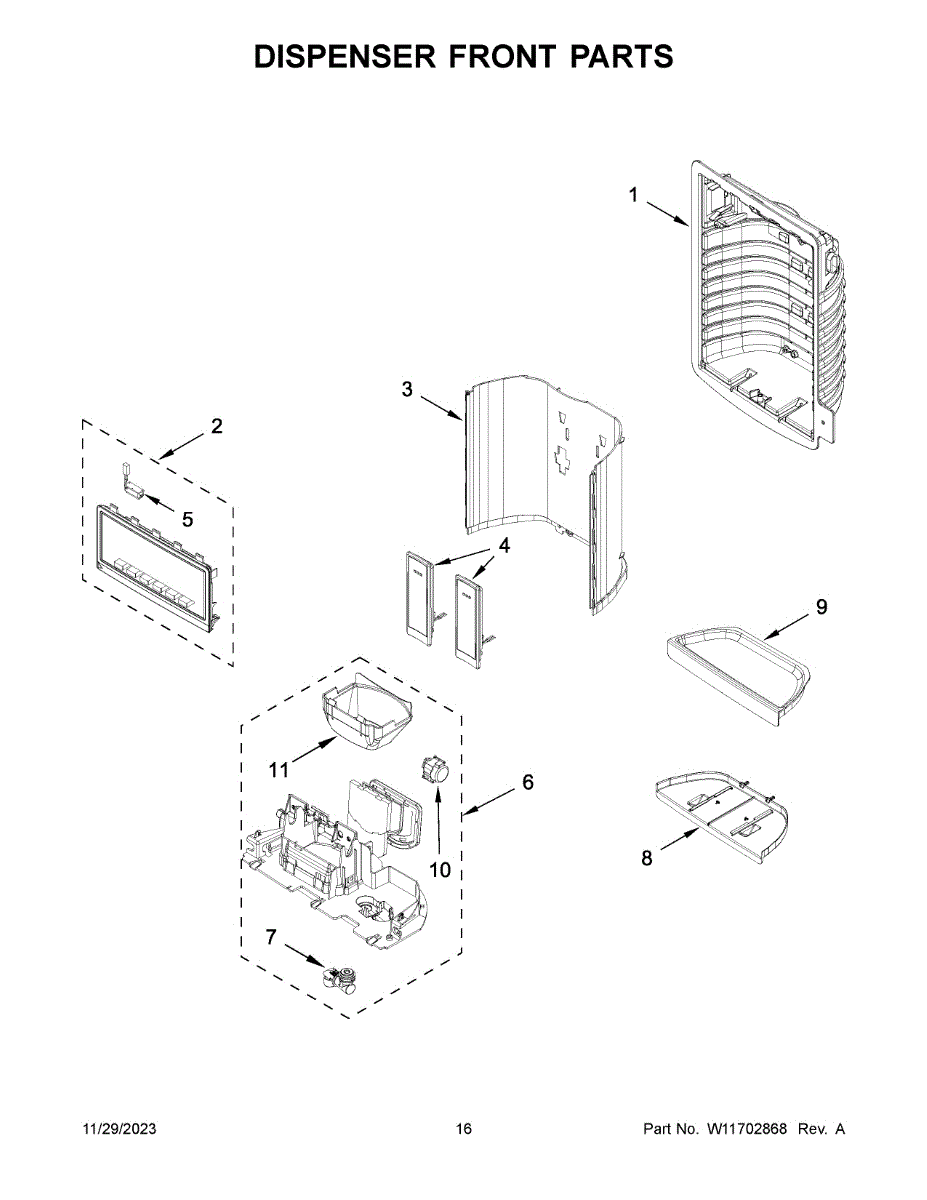

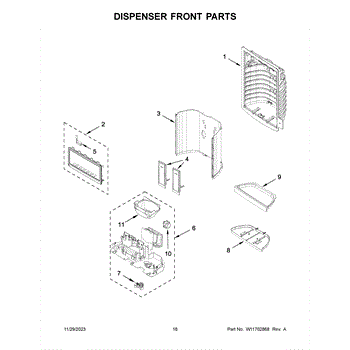

Parts for Whirlpool WRF555SDHB09: Dispenser Front Parts

The pads are an OEM component of Whirlpool refrigerators equipped with built-in ice and water dispensers. These paddles are responsible for dispensing ice on demand when the lever is engaged.

Symptoms of faulty dispenser paddles include:

• Difficulty dispensing ice or inability to dispense at all
• Ice getting jammed or stuck inside the dispenser chute
• Grinding or clicking noises coming from the dispenser area

Causes can relate to wear from years of repeated use, or damage from blockages like crushed ice. Paddles may become bent or broken over time.

This OEM part fits select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brand models.

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This dispenser separator assembly forms the interior of the refrigerator's ice/water dispensing area. It guides ice and water into your glass and helps seal the chute to limit warm air intrusion, drips, and frost at the opening.

• Forms and supports the dispenser recess and chute opening
• Provides sealing surfaces to help prevent air leaks that lead to frost or condensation around the dispenser
• Directs ice/water flow for cleaner, more controlled dispensing
• Replace if cracked, warped, loose, or if you notice frost/moisture around the chute or splashing/dripping during dispense

• Unplug the refrigerator and shut off the water supply before service
• Remove the dispenser front/trim to access the separator; handle wiring/connectors with care and reuse existing fasteners
• Avoid prying on finished surfaces; use non-marring tools
• Restore power and test ice and water dispensing; check for proper chute sealing

This spigot routes water from the internal supply to the dispenser outlet, delivering a controlled stream. Replacing a cracked or worn spigot helps restore proper dispensing and reduces drips or leaks at the dispenser area.

• Directs water from the internal tubing/reservoir to the dispenser outlet
• Maintains a defined flow path to help prevent splashing and after-drip
• Common symptoms of failure: dripping at the dispenser, slow/erratic flow, leaks inside the door, or visible cracks at the outlet
• Replace if damaged, leaking, or obstructed by mineral buildup

• Unplug the appliance and shut off the household water supply
• Dispense water to relieve line pressure before replacement
• Access the dispenser; note tubing orientation and fully seat/secure connections
• Restore water and power; flush the system and check all joints for leaks

This drip tray collects defrost and condensation water under the refrigerator to help prevent leaks and water pooling on the floor. It restores proper water capture and drainage for affected fridge models. What it does:

• Catches defrost and condensation runoff from the evaporator or drain system
• Helps prevent water pooling beneath the appliance and potential floor damage
• Works when original tray is cracked, warped, clogged, or missing
• Compatible with factory mounting points and drain alignment when the correct part is used

• One replacement drip tray

• Disconnect power before servicing to avoid electrical shock
• Access may require removing kick plate or lower front panel; follow your model's service instructions
• Slide or snap the tray into place and secure any retaining clips or screws removed earlier

This ice door motor drives the dispenser flap that opens for ice dispensing and closes to seal the chute. Replacing a weak or failed motor restores smooth door movement and helps prevent warm air and moisture from entering the freezer. What it does:

• Actuates the ice chute door during dispensing and returns it closed for a proper seal
• Helps reduce frost, condensation, and ice clumping around the dispenser
• Can address ice not dispensing due to the door not opening/closing
• May resolve clicking or grinding noises from the dispenser area

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove dispenser trim/control panel to access the ice door assembly; handle wiring carefully
• Note linkage and wire orientation before removal to ensure proper reassembly
• After installation, test the dispenser to verify the door opens/closes and seals the chute

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing
