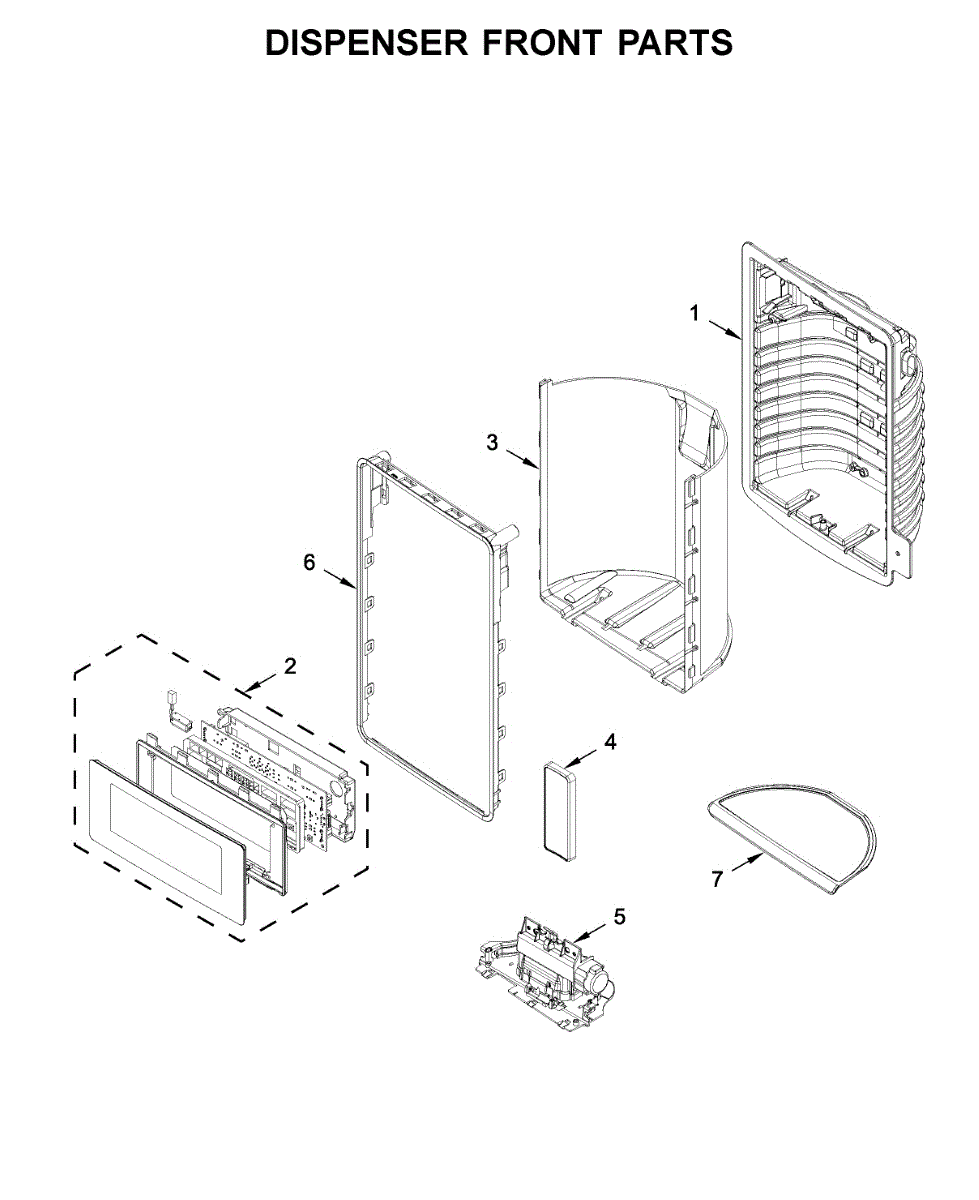

Parts for Whirlpool WRF767SDHV00: Dispenser Front Parts

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This replacement OEM part is a control board for refrigerators. The control board controls the digital display of the refrigerator. If the digital display is no longer visible and the buttons are no longer operating properly, it might be time to replace the control board. Luckily replacing the control board on a refrigerator with a digital display is a relatively simple process. To begin, start by unplugging the refrigerator. Then remove the display board by popping it out of the mounting brackets that attach to the refrigerator. Once the dispenser and display have been removed, access the old control board. Unfasten the screws attaching it to the refrigerator and remove the wire harness along with any individual wires. Be sure to take note of the orientation of the wires. Re-insert them into the correct terminals on the new board and reattach the new board to the refrigerator. reinstall the dispenser and display board and restore power to the refrigerator.This genuine replacement part is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand refrigerators.

This small pad fits under a cooktop/range burner grate to cushion and stabilize it, helping prevent wobble and surface scratches. Replacing worn or missing pads keeps the grate level and protects the cooktop finish. What it does:

• Supports and levels the burner grate at its contact points
• Reduces rattling and movement during cooking
• Helps prevent metal-on-metal scraping and scratches on the cooktop
• Replace if pads are missing, flattened, brittle, or the grate rocks

• 1 pad

• Allow the appliance and grates to cool completely; disconnect power/gas if servicing near burners
• Remove the grate; clean old pad residue and thoroughly dry the contact area
• Press the new pad firmly into place; replace all pads on a grate for even height
• Avoid harsh solvents that can damage enamel or stainless finishes

This door ice separator assembly guides ice from the dispenser chute to the dispenser tray, helping prevent jams and misfeeds. It replaces a cracked, warped, or broken separator to restore smooth ice dispensing. What it does:

• Directs ice through the dispenser chute so cubes drop cleanly into cups or glasses
• Helps prevent ice clumping and jams at the door dispenser
• Restores proper alignment of the dispenser path after damage or wear
• Useful when ice falls unevenly or gets stuck in the dispenser area

• Basic removal of the dispenser inner door panel may be required; keep track of fasteners and clips.
• Disconnect power to the appliance before starting work to avoid electrical or mechanical hazards.
• Inspect surrounding chute and dispenser components for damage and clean any ice buildup before reassembly.
• Use gentle force when snapping the new separator into place to avoid breaking tabs—do not force misaligned parts.

This control trim ring replaces the decorative bezel around a console control or knob, restoring a finished appearance and protecting the control opening from dirt and wear. Fits where the control meets the console for a clean look. What it does:

• Covers the gap around a control or knob to improve appearance and keep debris out
• Protects the control area from spills and grime that can affect operation
• Restores a secure, finished edge if the original trim is cracked, warped, or missing
• Matches OEM fit and mounting style for straightforward replacement

• Remove power to the appliance before beginning any work.
• Installation generally requires removing the knob and snapping or fastening the trim into place; follow your model's service instructions.
• Handle trim carefully to avoid scratching finish; use trim-safe tools if prying is needed.
• If mounting clips or screws are damaged or missing, replace them before completing installation.

Drip tray that catches defrost and condensation water to prevent leaks and floor damage. Replaces a cracked or missing tray to restore proper water collection and reduce standing water beneath the appliance. What it does:

• Collects melted frost and condensation from the cooling system so water is contained and managed.
• Channels water toward the appliance's evaporation/drain area so it can evaporate safely.
• Helps prevent puddles and potential floor damage caused by a damaged or missing tray.
• Replace when tray is cracked, warped, leaking, or shows visible damage.

• Disconnect power to the appliance before performing any service.
• Access is typically through the lower toe grille or a rear access panel.
• Inspect mounting tabs and surrounding supports for damage and ensure the new tray seats properly.
• Wear gloves and take care around sharp sheet-metal edges during removal/install.
