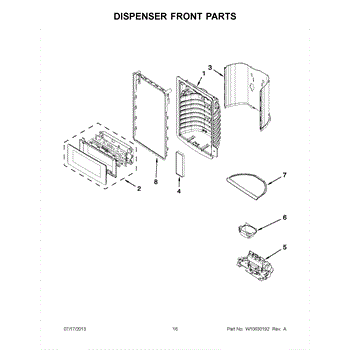

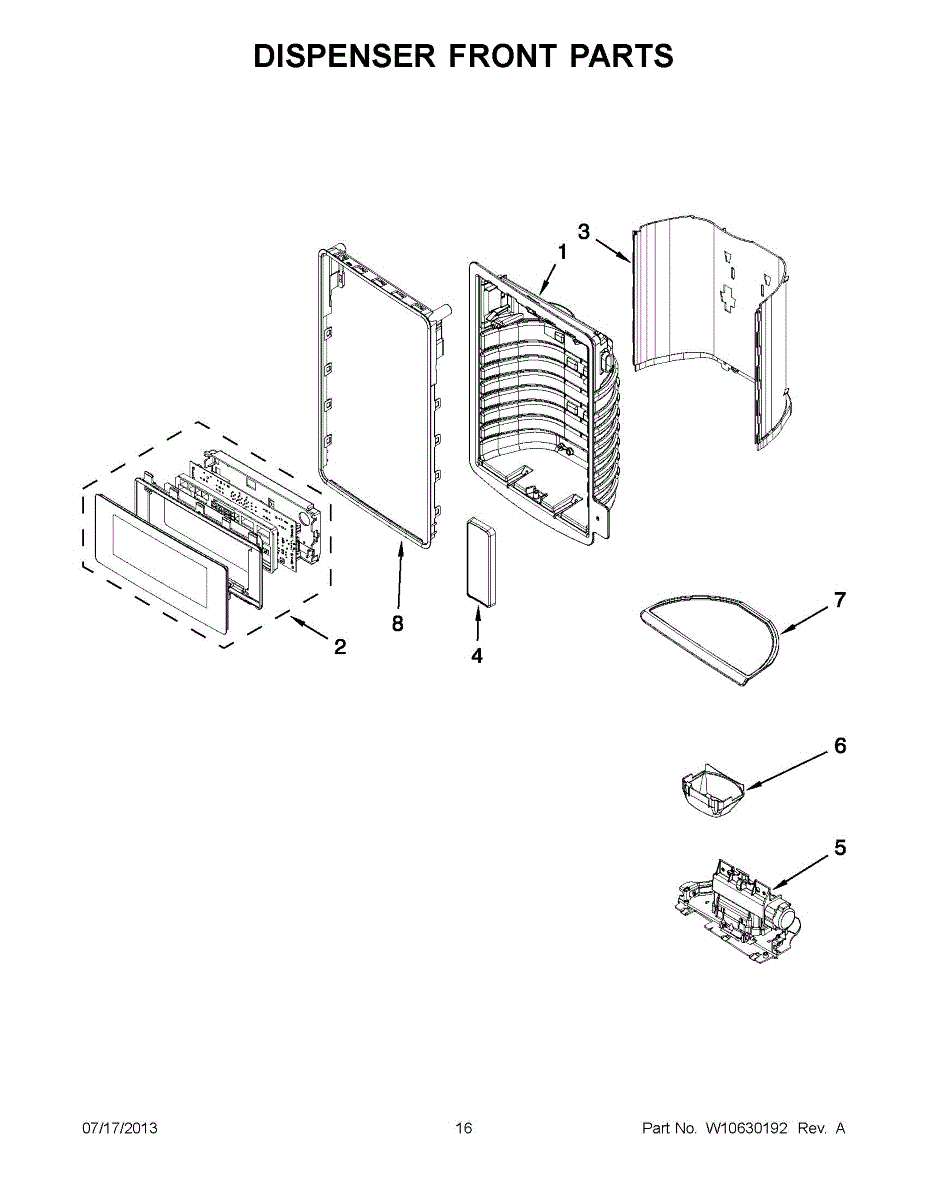

Parts for Whirlpool WRF990SLAM02: 08 - Dispenser Front Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

Color: Silver

This small pad fits under a cooktop/range burner grate to cushion and stabilize it, helping prevent wobble and surface scratches. Replacing worn or missing pads keeps the grate level and protects the cooktop finish. What it does:

• Supports and levels the burner grate at its contact points
• Reduces rattling and movement during cooking
• Helps prevent metal-on-metal scraping and scratches on the cooktop
• Replace if pads are missing, flattened, brittle, or the grate rocks

• 1 pad

• Allow the appliance and grates to cool completely; disconnect power/gas if servicing near burners
• Remove the grate; clean old pad residue and thoroughly dry the contact area
• Press the new pad firmly into place; replace all pads on a grate for even height
• Avoid harsh solvents that can damage enamel or stainless finishes

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This dispenser drip tray sits beneath the ice/water dispenser recess to catch small drips and spills. Replacing a cracked or missing tray helps protect the door and floor while keeping the dispenser area neat and easier to clean. What it does:

• Collects water and beverage drips from the dispenser area
• Helps prevent moisture from running down the door or onto the floor
• Restores a clean, finished look if the original is cracked, warped, stained, or missing
• Improves fit if the old tray no longer sits securely

• One dispenser drip tray

• Unplug the refrigerator and turn off the water supply before servicing
• Lift the old tray straight out; clean the recess of debris and residue
• Align and press the new tray in until it sits flush and secure
• Do not force or pry against surrounding trim to avoid damage

This control trim ring replaces the decorative bezel around a console control or knob, restoring a finished appearance and protecting the control opening from dirt and wear. Fits where the control meets the console for a clean look. What it does:

• Covers the gap around a control or knob to improve appearance and keep debris out
• Protects the control area from spills and grime that can affect operation
• Restores a secure, finished edge if the original trim is cracked, warped, or missing
• Matches OEM fit and mounting style for straightforward replacement

• Remove power to the appliance before beginning any work.
• Installation generally requires removing the knob and snapping or fastening the trim into place; follow your model's service instructions.
• Handle trim carefully to avoid scratching finish; use trim-safe tools if prying is needed.
• If mounting clips or screws are damaged or missing, replace them before completing installation.
